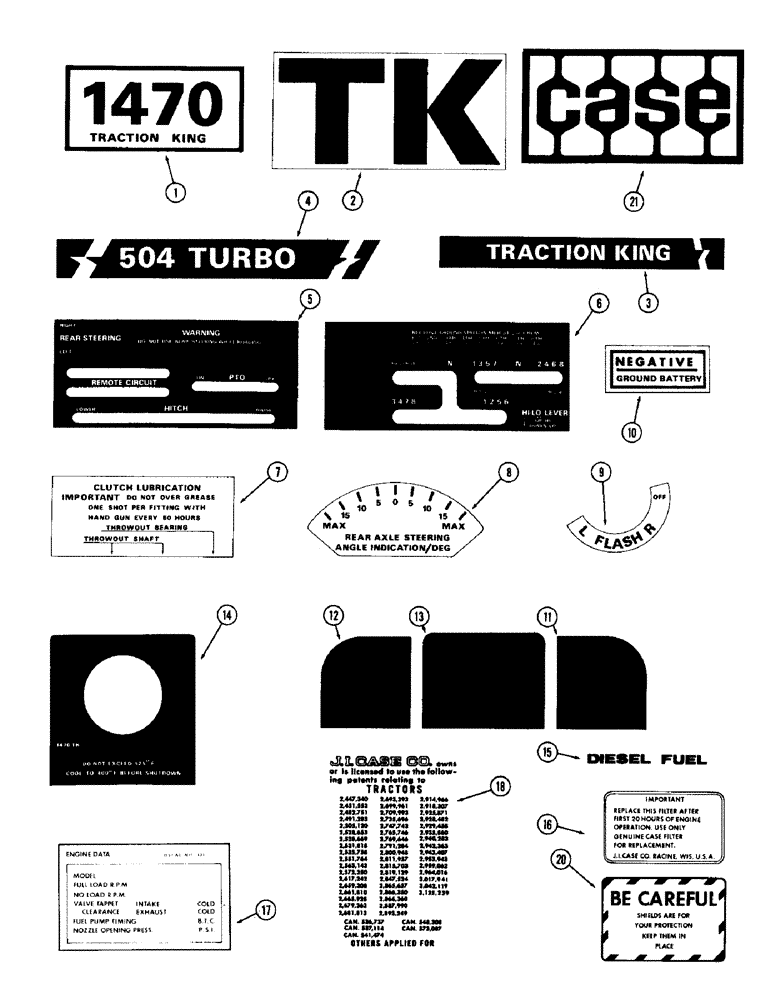

Запчасти Case IH 1470 (115A) - DECALS, FIRST USED TRACTOR SERIAL NUMBER 8674001 (09) - CHASSIS

A75005

KIT

- decal, Includes: Ref. 1 - 18

1шт.

1

321-1836

DECAL

- 1470 traction king (Side of fuel tank)

2шт.

2

321-1535

DECAL

- TK (Front of grille)

1шт.

3

321-1537

DECAL

- traction king (Rear of fuel tank)

1шт.

4

321-1837

DECAL

- 504 turbo (Sides of hood)

2шт.

5

321-1280

DECAL

- implement instruction (R.H. console)

1шт.

6

321-1281

DECAL

- shifting instruction (L.H. console)

1шт.

7

321-1284

DECAL - lubrication (R.H. side)

1шт.

8

321-1283

DECAL - rear steering indicator (R.H. inst. panel)

1шт.

9

321-1282

DECAL - turn signals (Upper R.H. inst. panel)

1шт.

10

321-1285

DECAL

- negative ground (Inside battery case)

1шт.

11

321-1838

DECAL - instrument panel (R.H. side)

1шт.

12

321-1839

DECAL - instrument panel (L.H. side)

1шт.

13

321-1840

DECAL - instrument panel (Center)

1шт.

14

321-1290

DECAL - pyrometer

1шт.

15

321-230

DECAL

- diesel fuel (On fuel tank)

1шт.

16

321-2101

DECAL

- important (On oil filter)

1шт.

17

321-1388

DECAL - engine data (On valve cover)

1шт.

18

321-246

DECAL

- patent list (L.H. side)

1шт.

20

321-6715

DECAL

- be careful (P.T.O. shield)

1шт.

21

321-1308

DECAL

- "Case" logo (Grille sides)

2шт.
