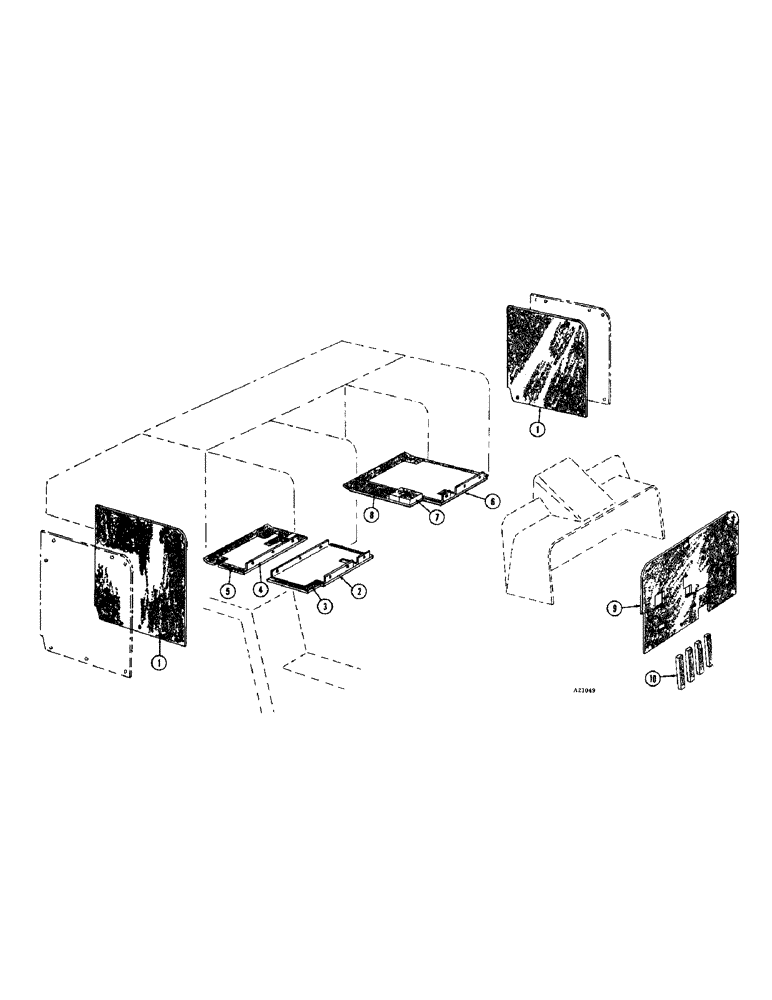

Запчасти Case IH 1470 (072) - FIREWALL AND CONSOLE SEALS (09) - CHASSIS

1

T39209

SEAL - console cover R.H. and L.H.

2шт.

2

T39203

BAFFLE ASSEMBLY - console, R.H. front, Includes: Ref. 3

1шт.

3

T39205

SEAL - console, R.H. front

1шт.

175-403

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- 1/4 - 20 x 3/4" truss hd. Z.P.

6шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

4

T39206

BAFFLE ASSEMBLY - console, R.H. rear, Includes: Ref. 5

1шт.

5

T39208

SEAL - console, R.H. rear

1шт.

6

T39199

BAFFLE ASSEMBLY - console, L.H., Includes: Ref. 7 and 8

1шт.

7

T39202

PAD - seal support

1шт.

8

T39201

SEAL - console, L.H.

1шт.

175-403

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- 1/4 - 20 x 3/4" truss hd. Z.P.

3шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

9

T39265

SEAL - firewall

1шт.

10

T39266

STRIP - hose seal

4шт.
