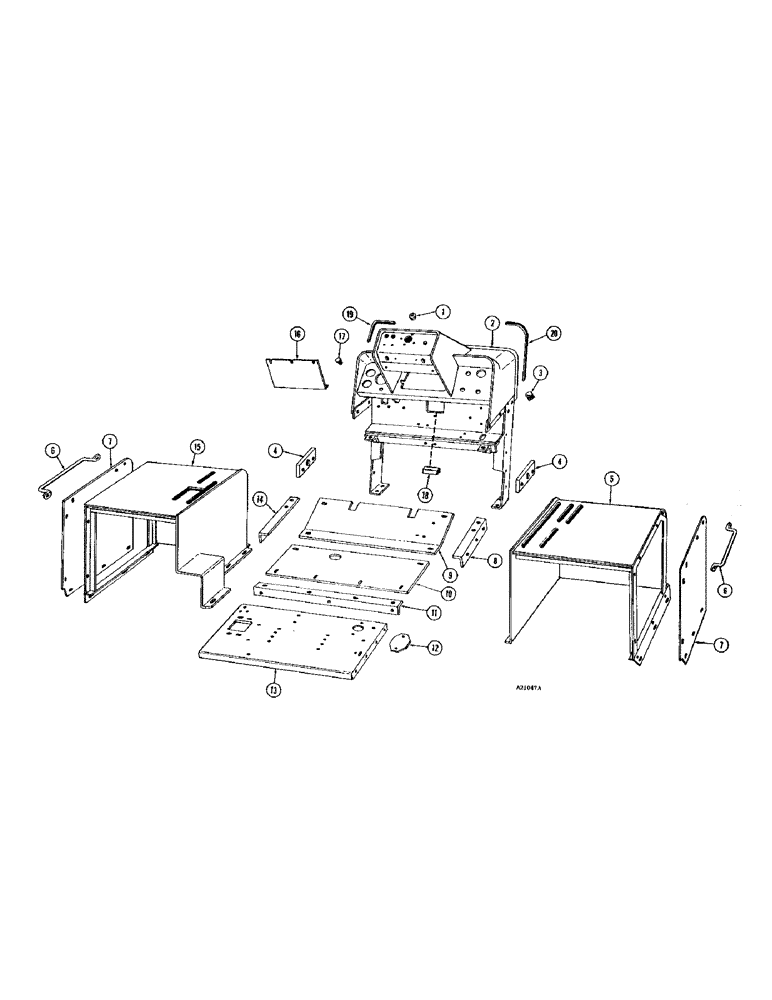

Запчасти Case IH 1470 (070) - COCKPIT, CONSOLE AND PLATFORM (09) - CHASSIS

1

A55643

BEARING - throttle and rear steering

2шт.

2

T38534

COCKPIT

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

3

L10696

PLUG - cockpit

1шт.

4

L10516

SUPPORT - pedal shaft, clutch and brake

2шт.

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

- 5/16" x 1/2"

2шт.

5

T38455

CONSOLE, R.H.

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

6

A56109

HANDLE - mounting (Used without cab)

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

T38453

COVER - console

2шт.

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

12шт.

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

12шт.

195-104

WASHER,3/8"

- plain Z.P. 3/8"

14шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

8

L10515

ANGLE - R.H. clutch & brake pedal mtg.

1шт.

9

L10518

PLATE - platform, front

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

L10517

PLATE - platform, middle

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

11

A55578

ANGLE - rear platform support

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

12

A55572

COVER - master brake cylinder inspection

1шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

13

T38448

PLATFORM - rear

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

L10514

ANGLE - L.H. clutch and brake pedal mtg.

1шт.

15

T38454

CONSOLE, L.H. (Hardware same as Ref. 5)

1шт.

16

T38958

PLATE - cockpit cover

1шт.

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- 1/4 - 20 x 1/2" truss hd. Z.P.

2шт.

195-102

WASHER,1/4"

- plain 1/4"

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

131-132

SPRING NUT,Tinn, U, 1/4"-20

"U" NUT - 1/4" - 20

2шт.

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 - 24 x 1/2" N.C. rd. hd. Z.P.

3шт.

195-512

WASHER,#10

- plain Z.P. #10

3шт.

131-146

NUT

"U" NUT - #10 - 24 Z.P.

3шт.

17

A56527

PLUG - cockpit cowl

1шт.

18

T39598

PAD - rubber, console channel

1шт.

19

T51445

TRIM - cowl edge, 11" long

2шт.

20

T51444

TRIM - cockpit edge, 20" long

2шт.
