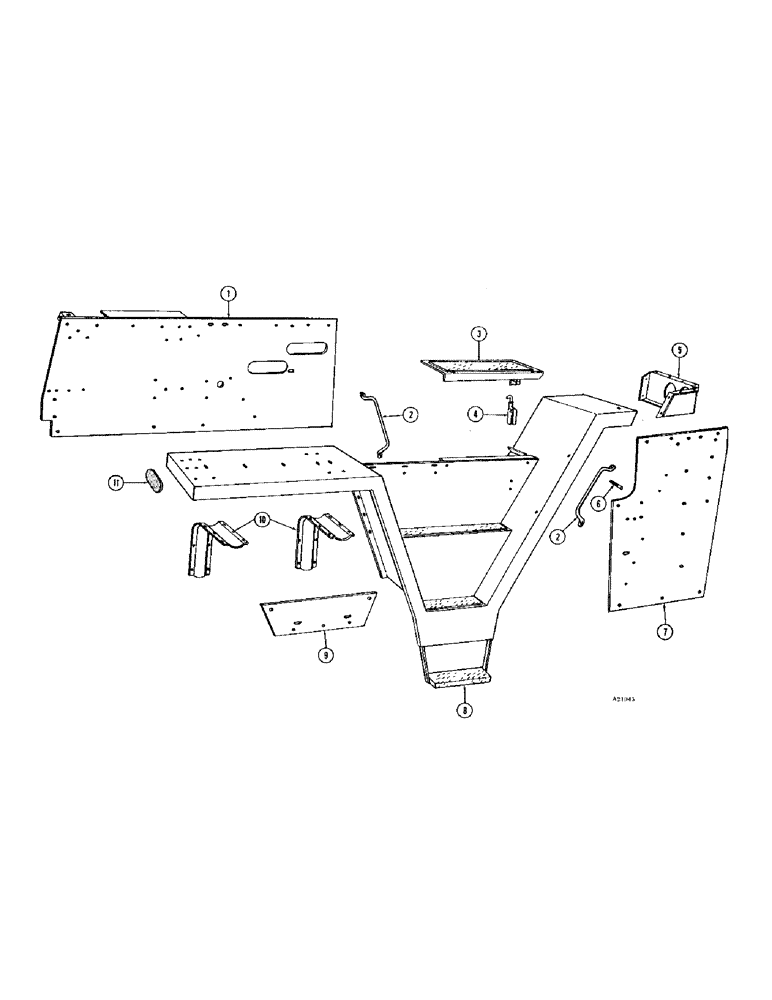

Запчасти Case IH 1470 (064) - FENDER ASSEMBLY, RIGHT HAND SIDE (09) - CHASSIS

1

T38798

SHEET - side, R.H. rear

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

7шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

195-106

WASHER,1/2"

- plain, 1-3/8" x 9/16" x 12 ga. Z.P.

5шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

7шт.

2

A56109

HANDLE - tractor mounting

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

3

T38812

COVER - R.H. fender

1шт.

4

L10473

LATCH

- cover

1шт.

175-446

SCREW,Sl Truss Hd, #10 - 24 x 5/8"

- 10-24 x 5/8" truss hd. Z.P.

2шт.

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

129-17

NUT,Hex, #10 - 24

NUT - #10 N.C. hex. Z.P.

2шт.

5

T38871

CAGE - front R.H.

1шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

195-520

WASHER,1/4"

- plain 1/4"

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

9шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

9шт.

175-403

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

- 1/4" x 3/4" truss hd. Z.P.

7шт.

6

T38434

STUD - 1/2" x 2.80 w/2" thread

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

7

T38797

SHEET - side, R.H. front

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

8

T38804

FENDER - R.H.

1шт.

187-1304

SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

SCREW - 3/8" - 16 x 3/4" tap tite

21шт.

9

T38774

PLATE - lower, R.H.

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

T38787

BRACE - fender

2шт.

187-1304

SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

SCREW - 3/8" - 16 x 3/4" tap tite

8шт.

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

8шт.

195-526

WASHER,7/16" x 7/8" x .083"

- plain, 3/8" Z.P.

8шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

11

T39190

REFLECTOR - rear (Red)

1шт.
