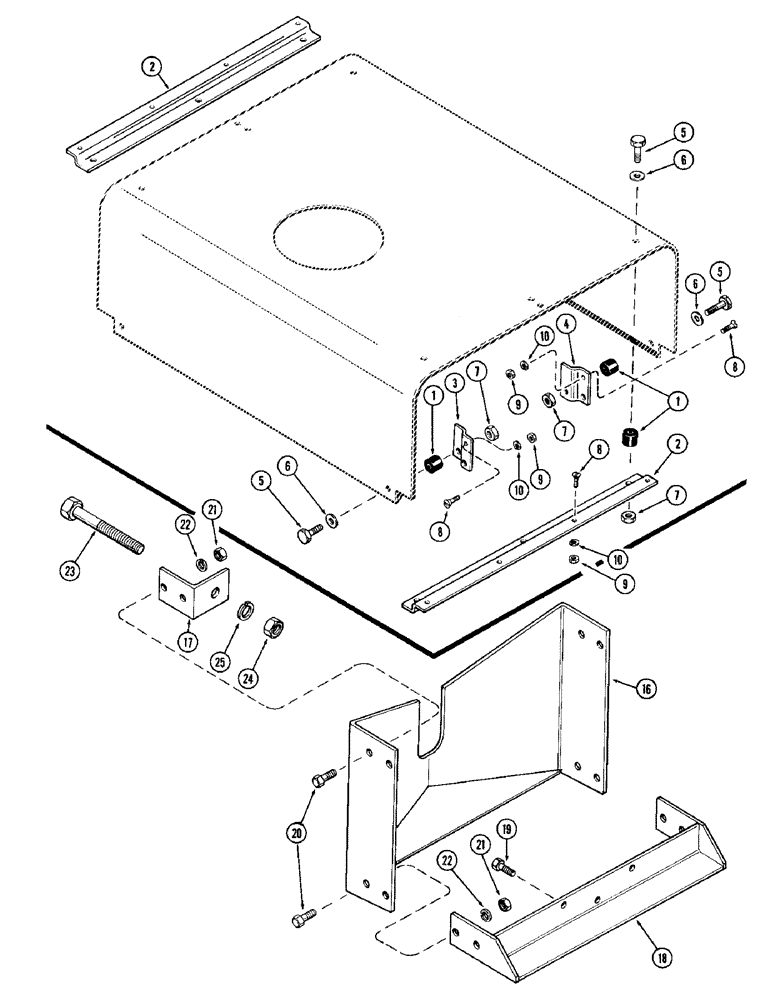

Запчасти Case IH 1470 (063A) - HOOD RUBBER MOUNTING ATTACHMENT (09) - CHASSIS

T89186

ATTACHMENT - rubber mounting, hood, Includes: Ref. 1 - 10

1шт.

1

A75015

SPACER - rubber, hood support

10шт.

2

A75014

SUPPORT - top, Serial Range: spacer-hood

2шт.

3

A75016

SUPPORT - R.H. side, Serial Range: spacer-hood

2шт.

4

A75017

SUPPORT - L.H. side, Serial Range: spacer-hood

2шт.

5

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Spacer Hex, 3/8"-16 x 2", G5

10шт.

6

195-2038

WASHER,13/32" x 7/8" x .035"

- flat, 13/32 x 7/8 x 3/32"

10шт.

7

131-52

NUT,3/8"-16, GC

NUT - lock, 3/8" N.C. hex.

10шт.

8

173-239

SCREW

- BRACKET, 1/4 x 1" rd. hd.

12шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

12шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

12шт.

A75018

KIT

ATTACHMENT - brake shield, cover, Includes: Ref. 16 - 23

1шт.

16

A75019

GEAR

SHIELD - brake cover attachment

1шт.

17

A75025

BRACKET

- upper, shield, brake cover attachment

2шт.

18

A75022

BRACKET

- lower, shield, brake cover attachment

1шт.

19

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Brake cover attachment

3шт.

20

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Brake cover attachment Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

21

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., brake cover attachment

8шт.

22

92-8

LOCK WASHER,1/2"

brake cover attachment 1/2"

8шт.

23

113-814

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

- 7/8 x 7-1/2" N.C. hex., brake cover attachment

1шт.

24

25-1014

NUT,7/8"-9, G5

Brake cover attachment 7/8"-9, G5

1шт.

25

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Brake cover attachment 7/8"

1шт.
