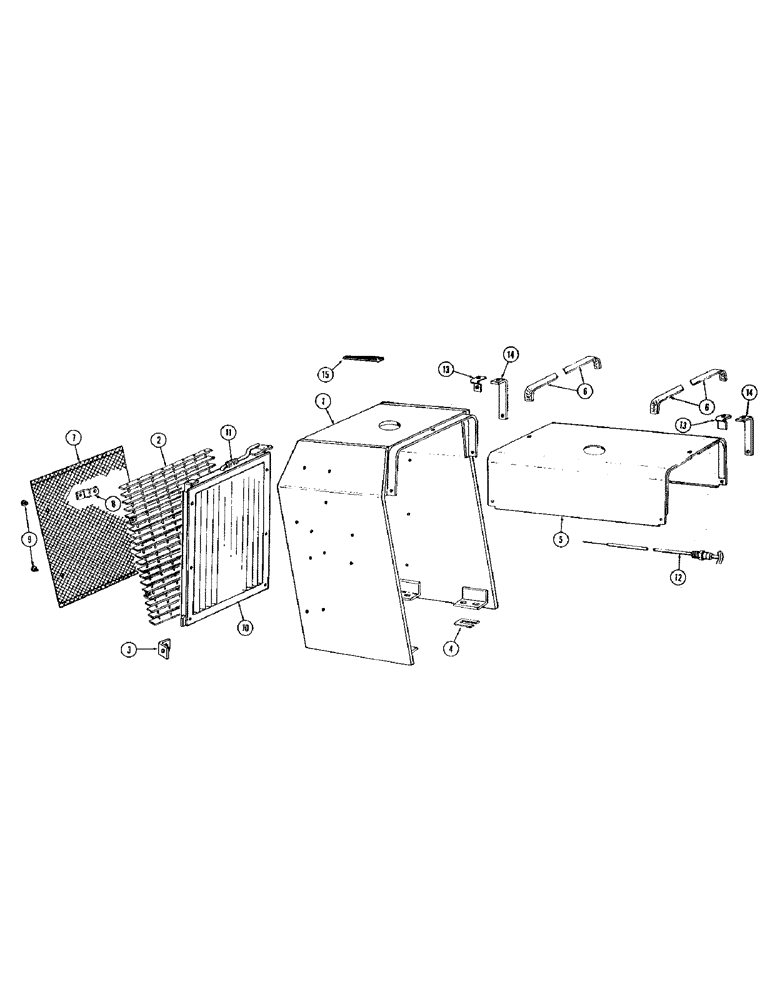

Запчасти Case IH 1470 (062) - GRILLE HOUSING AND HOOD (09) - CHASSIS

1

T38890

GRILLE ASSEMBLY - radiator and grating

1шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

195-108

WASHER,5/8"

- Z.P. 5/8"

8шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.

2

T38884

GRATING - radiator grille

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

195-104

WASHER,3/8"

- 7/16" x 1 x #14 ga. Z.P.

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

T38889

ANGLE - grille mtg. pads

4шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

A56516

SHIM,.030" Thk

Grille radiator frame .030" Thk

1шт.

5

T38894

HOOD ASSEMBLY - engine, Includes: Ref. 6

1шт.

6

T38895

PAD - hood, anti-squeak

4шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

195-104

WASHER,3/8"

- 7/16" x 1" x #14 ga. Z.P.

6шт.

131-52

NUT,3/8"-16, GC

LOCKNUT - 3/8" Z.P.

6шт.

T87898

ATTACHMENT

SCREEN ATTACH. - radiator, Includes: Ref. 7 - 9

1шт.

7

T39018

SCREEN

ASSEMBLY - radiator

1шт.

8

A56544

BRACKET

- screen mounting, radiator

4шт.

9

A56545

FASTENER

- screen, radiator

4шт.

10

T39019

SHUTTER ASSEMBLY - radiator, Includes: Ref. 11

1шт.

11

A9909

SPRING - shutter lever tension, radiator

1шт.

12

T39889

CONTROL ASSEMBLY - shutter, radiator

1шт.

13

A26814

CLIP - shutter control, radiator

2шт.

14

T39020

BRACKET - shutter control, radiator

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Radiator shutter Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Radiator shutter 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Radiator shutter 3/8"-16, G5

2шт.

15

A62690

GUARD

TRIM - guide, grille top, radiator shutter

1шт.
