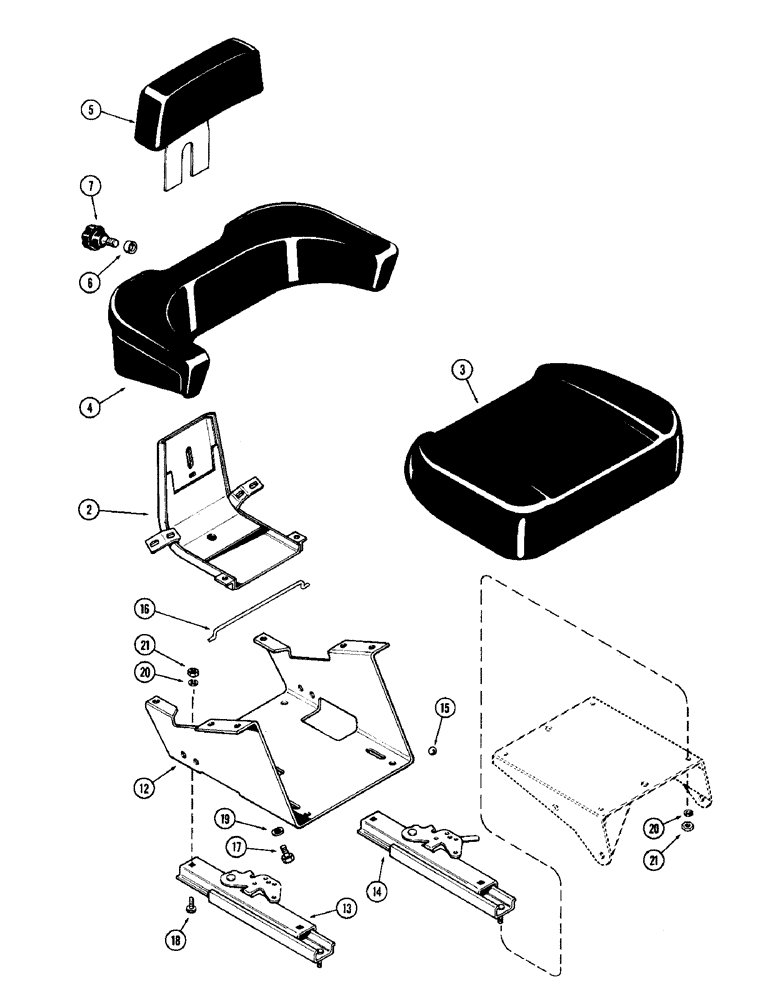

Запчасти Case IH 1470 (061A) - SERIES THIRTY SEAT (09) - CHASSIS

A61224

SEAT

ASSY. - "Series 30", Includes: Ref. 2 - 7

1шт.

2

A57405

SUPPORT

- seat frame

1шт.

3

A33317

CUSHION

- seat

1шт.

4

A42497

BACKREST

- seat, lower

1шт.

5

A34283

CUSHION

BACKREST - seat, upper

1шт.

6

A40600

SPACER

- backrest adjusting

1шт.

7

A40972

KNOB

- backrest adjusting

1шт.

12

A64853

SUPPORT - seat

1шт.

13

A64818

ADJUSTER

- seat, R.H.

1шт.

14

A64819

ADJUSTER

- seat, L.H.

1шт.

15

A59829

KNOB

- seat adjuster

1шт.

To be attached with adhesive 345-8

1шт.

16

A64822

ROD - seat lock

1шт.

17

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

19

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/32"

10шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

21

9635082

NUT,5/16" - 18, Gr 5

8шт.
