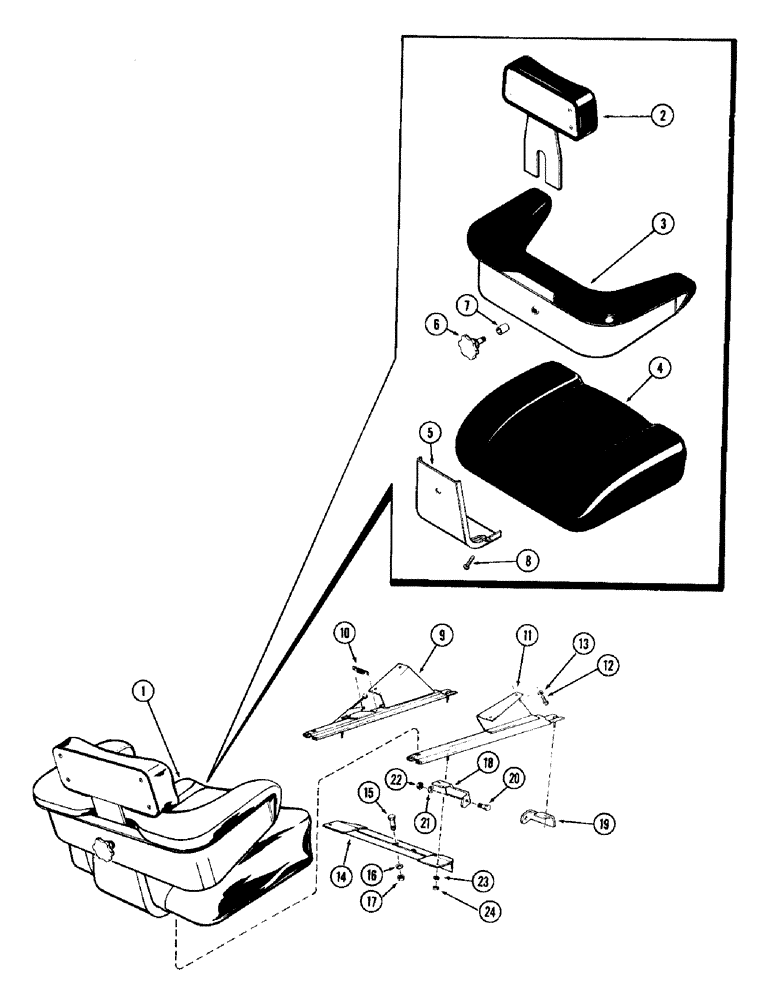

Запчасти Case IH 1470 (060) - STANDARD SEAT (09) - CHASSIS

1

A32872

SEAT ASSY. - operator, Includes: Ref. 2 - 13

1шт.

2

A34283

CUSHION

ASSY. - upper backrest

1шт.

3

A33318

CUSHION

ASSY. - arm & lower backrest

1шт.

4

A33317

CUSHION

ASSY. - operator's seat

1шт.

5

A40972

KNOB

SCREW - adjusting, upper backrest

1шт.

6

A40600

SPACER

- adjusting screw

1шт.

7

A57405

SUPPORT

BRACKET - seat support

1шт.

8

168-23

SCREW - 5/16 x 5/8" N.C. Ferry C'Bore hd.

2шт.

9

A40942

BRACKET

ASSY. - seat, L.H. (w/adjuster), Includes: Ref. 10

1шт.

10

A25261

SPRING - adjusting lever

1шт.

11

A40943

KIT

BRACKET - seat, R.H.

1шт.

12

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Bracket & support Hex, 5/16"-18 x 5/8", G5, Full Thd

8шт.

13

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

8шт.

14

A32873

BRACKET - seat support, rear

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

18

A34228

BRACKET - seat support, front, R.H.

1шт.

19

A34229

BRACKET - seat support, front. L.H.

1шт.

20

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

24

129-122

NUT,5/16"-24, G5

Bracket stud 5/16"-24, G5

4шт.
