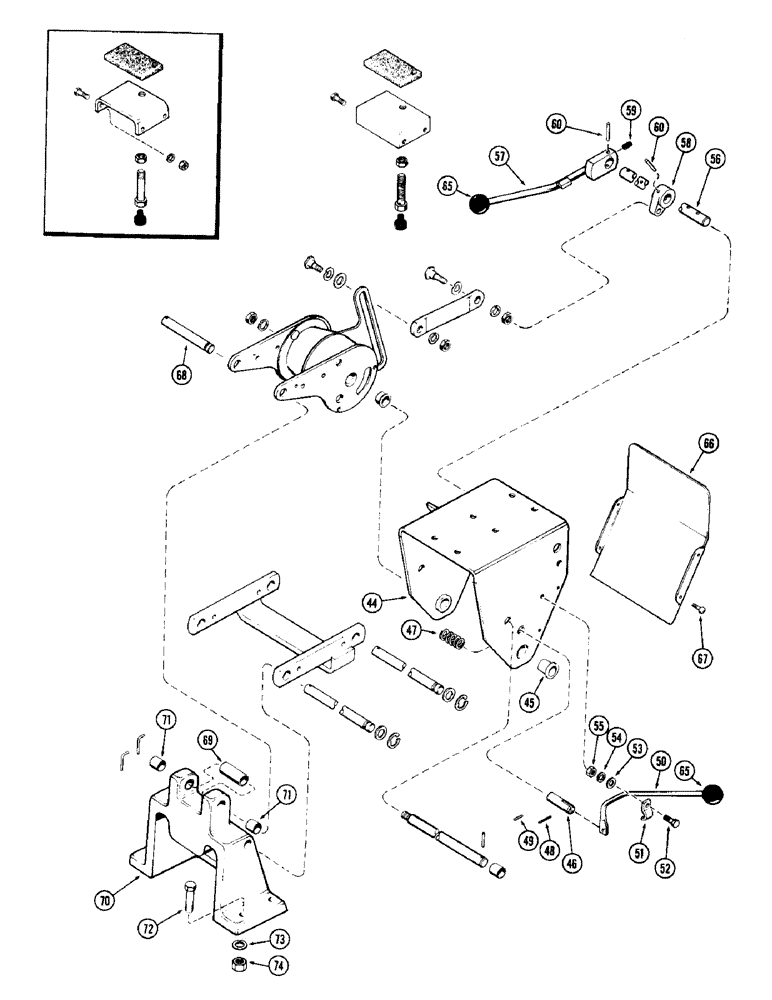

Запчасти Case IH 1470 (059A) - SEAT SUSPENSION, FOR STANDARD SEAT (09) - CHASSIS

A57726

SUSPENSION

SEAT ASSY - , Includes: Ref. 44 - 60 and Ref. 2 - 39 on Figure 058

1шт.

44

A57784

SADDLE

ASSY. - seat mounting, Includes: Ref. 45 - 48

1шт.

45

A57713

BUSHING

S - trunnion (1/2" long)

2шт.

46

A23967

ROD

- lock lever

1шт.

47

A23969

SPRING

- lock lever

1шт.

48

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

49

138-69

LOCK PIN,5/32" x 1/2", Slotted

Pin, 5/32" x 1/2", Slotted

1шт.

50

A32546

LEVER - seat lock

1шт.

51

A24014

CLIP - seat lock lever

1шт.

52

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4 x 3/4" N.F. hex.

1шт.

53

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

54

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

55

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

56

A32549

SHAFT - cross, adjusting lever

1шт.

57

A23957

LEVER - seat adjusting link

1шт.

58

A32547

LEVER - seat adjusting, hand

1шт.

59

A23646

SPRING

- adjusting lever

1шт.

60

138-2002

PIN,3/16" x 1 1/4", Coiled

Cross shaft 3/16" x 1 1/4", Coiled

4шт.

65

A23885

KNOB

- levers

2шт.

66

A23977

COVER - saddle

1шт.

67

187-1108

SCREW - cover, #8 x 3/8" self-tapping

4шт.

68

A23976

PIN

- pivot, torsion arm

1шт.

69

A24490

SPACER

- arm, 11/16 x 3/4 x 2-1/8"

1шт.

70

A57786

SUPPORT ASSY. - seat, Includes: Ref. 71

1шт.

71

A57709

BUSHING

- pivot pin, 5/8 x 3/4 x 3/4"

2шт.

72

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex.

4шт.

73

92-8

LOCK WASHER,1/2"

4шт.

74

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.
