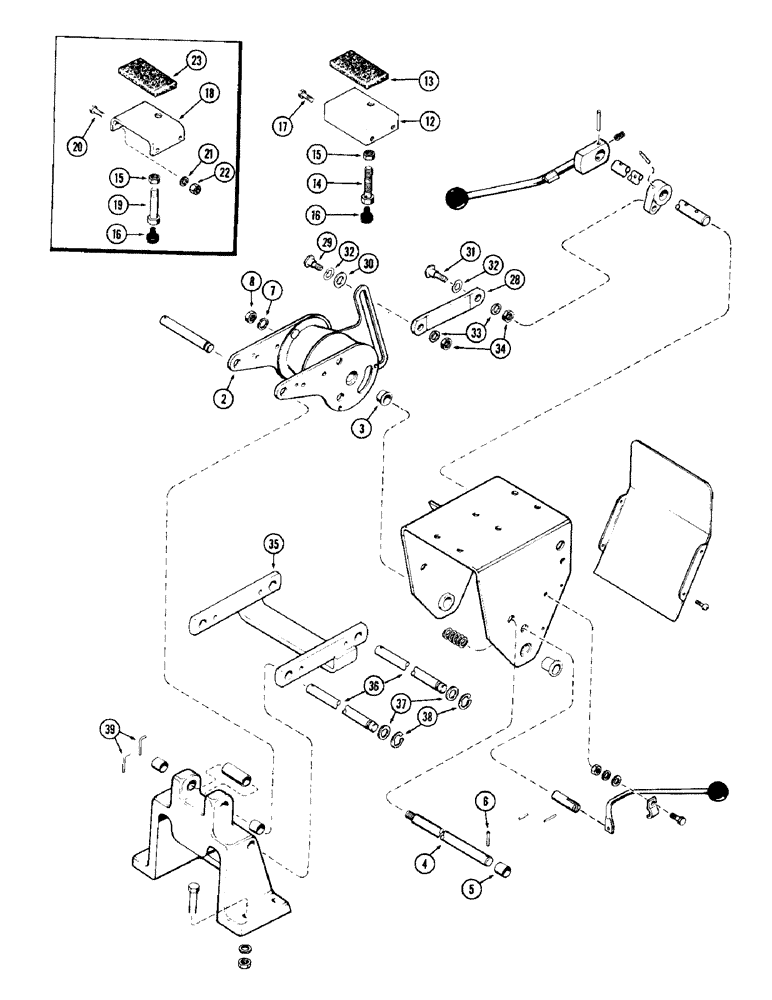

Запчасти Case IH 1470 (058) - SEAT SUSPENSION, FOR STANDARD SEAT (09) - CHASSIS

A57726

SUSPENSION

ASSY. - seat mounting, Includes: Ref. 2 - 39 anf Ref. 44 - 60 on Figure 59A

1шт.

2

A57714

ARM

ASSY. - torsion spring, Includes: Ref. 3

1шт.

3

A57717

BUSHING

- trunion (5/8" long)

2шт.

4

A23965

BOLT

- torsion spring

1шт.

5

A57721

SPACER

- torsion spring centering, 5/8 x 27/32 x 31/32"

2шт.

6

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, , Bolt stop 3/16" x 7/8", Slotted

1шт.

7

92-8

LOCK WASHER,1/2"

1шт.

8

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2" N.F. hex., jam

1шт.

A60041

BRACE ASSY. - cross, seat mounting (1st used tractor ser. no. 8364617), Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

BRACE - cross, seat mounting

1шт.

13

A60030

PAD - brace (Use adhesive 345-11)

1шт.

14

A60027

BOLT - seat bumper (1/2" N.C. x 1-1/2") (1st used trac. ser. no. 8364617)

1шт.

15

25-108

NUT,1/2"-13, G5

- lock, bumper bolt (1/2" N.C. hex.)

1шт.

16

A24372

BUMPER - seat (Rubber)

1шт.

17

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- brace (3/8 x 3/4" N.C. hex.) (Used w/A60041 cross brace)

4шт.

18

A57720

BRACE - cross, seat mounting arm (Used prior to trac. ser. no. 8364617)

1шт.

19

A33741

BOLT

- bumper, seat (1/2" N.C. x 2-1/4") (Used prior to trac. ser. no. 8364617)

1шт.

20

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- brace (3/8 x 1" N.F. hex.) (Used w/A57720 cross brace)

4шт.

21

92-6

LOCK WASHER,3/8"

used w/14-616 bolt 3/8"

4шт.

22

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex. (Used w/14-616 bolt)

4шт.

23

A60030

PAD - brace (Rubber) (Use adhesive 345-11)

1шт.

28

A23962

LINK - seat adjusting

1шт.

29

A27277

STEP BOLT

BOLT - 3/8 x 1-1/4" N.F. hex., shoulder, rear

1шт.

30

A30752

WASHER

- rear link bolt, 17/32 x 1-1/16 x 1/32"

1шт.

31

A23964

BOLT - 3/8 x 1-7/16" N.F. hex. shoulder, front

1шт.

32

A23963

WASHER - tension (Spring type)

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

35

A57722

LINK

- parallel

1шт.

36

A57725

PIN

- (8-19/32" long)

2шт.

37

A7915

SHIM,.0359" Thk

Washer - Spacer (21/32" x 1-1/8" x 20 ga.) .0359" Thk

1шт.

38

A27811

CIRCLIP,#X74, .616" Dia, E-Type

Ring, Retaining, , parallel link pins #X74, .616" Dia, E-Type

2шт.

39

A34516

PIN

- lock, pivot & link pins

3шт.
