(150) - REMOTE HYDRAULIC HOSES AND COUPLINGS

Запчасти Case IH 1470 (150) - REMOTE HYDRAULIC HOSES AND COUPLINGS (08) - HYDRAULICS

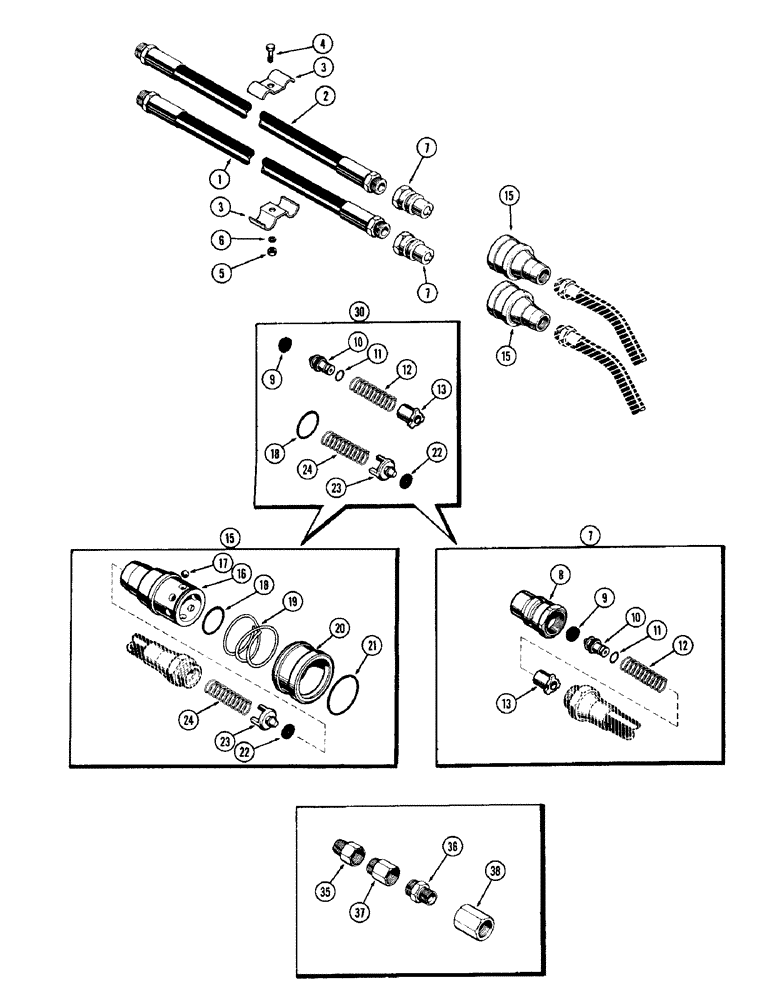

Схема запчастей Case IH 1470 - (150) - REMOTE HYDRAULIC HOSES AND COUPLINGS (08) - HYDRAULICS
3
8
21
23
30
1
10
15
9
18
4
9
22
12
18
36
15
16
7
15
17
7
19
6
12
35
3
24
23
22
37
11
13
20
2
5
7
11
13
38
24
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A20816

HOSE

- front port, hydraulic cylinder (106")

1шт.

2

A20817

HOSE

- rear port, hydraulic cylinder (118")

1шт.

3

A27440

CLAMP

- hose

2шт.

4

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

5

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

6

92-5

LOCK WASHER,5/16"

1шт.

7

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - male break-away, Includes: Ref. 8 - 13

2шт.

8

A27356

PIPE FITTING

BODY - plug, male coupling

1шт.

9

A33964

SEAL

- piston, Includes: Ref. 10 - 13

1шт.

Part of repair Kit P/N A40459

1шт.

10

A27508

PISTON

- plug coupling

1шт.

Part of repair Kit P/N A40459

1шт.

11

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - piston sleeve

1шт.

Part of repair Kit P/N A40459

1шт.

12

A27351

SPRING

- piston

1шт.

Part of repair Kit P/N A40459

1шт.

13

A9634

SLEEVE

- piston

1шт.

15

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - female, hydraulic (On tractor), Includes: Ref. 16 - 24

1шт.

16

A27349

BODY

- socket, female coupling

1шт.

17

211-7

BALL,1/4" Dia

- locking, socket 1/4" Dia

8шт.

18

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - socket body

1шт.

Part of repair Kit P/N A40459

1шт.

19

A27354

SPRING

- sleeve, ball retaining

1шт.

20

A27353

SLEEVE

SLEEVE - ball retaining

1шт.

21

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap, socket (Rubber)

1шт.

22

A33964

SEAL

- piston

1шт.

Part of repair Kit P/N A40459

1шт.

23

A26215

PISTON

- socket

1шт.

Part of repair Kit P/N A40459

1шт.

24

A11324

SPRING

- piston, coupling

1шт.

Part of repair Kit P/N A40459

1шт.

30

A40459

KIT

REPAIR KIT - hydraulic coupling (Includes Ref. 9, 10, 11, 12, 18, 22, 23 and 24)

1шт.

The above kit will service both A28541 and A28542 couplings

1шт.

35

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

- 7/8"-18 female to 1/2" P.T. male, hose

1шт.

36

A27359

ADAPTER

- 7/8"-18 male to 1/2" P.T. male, hose

1шт.

37

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- 7/8"-18 male to 1/2" P.T female, hose, Includes: Ref. 38

1шт.

38

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

- 7/8"-18 female x 1/2" P.T. female, hose

1шт.
