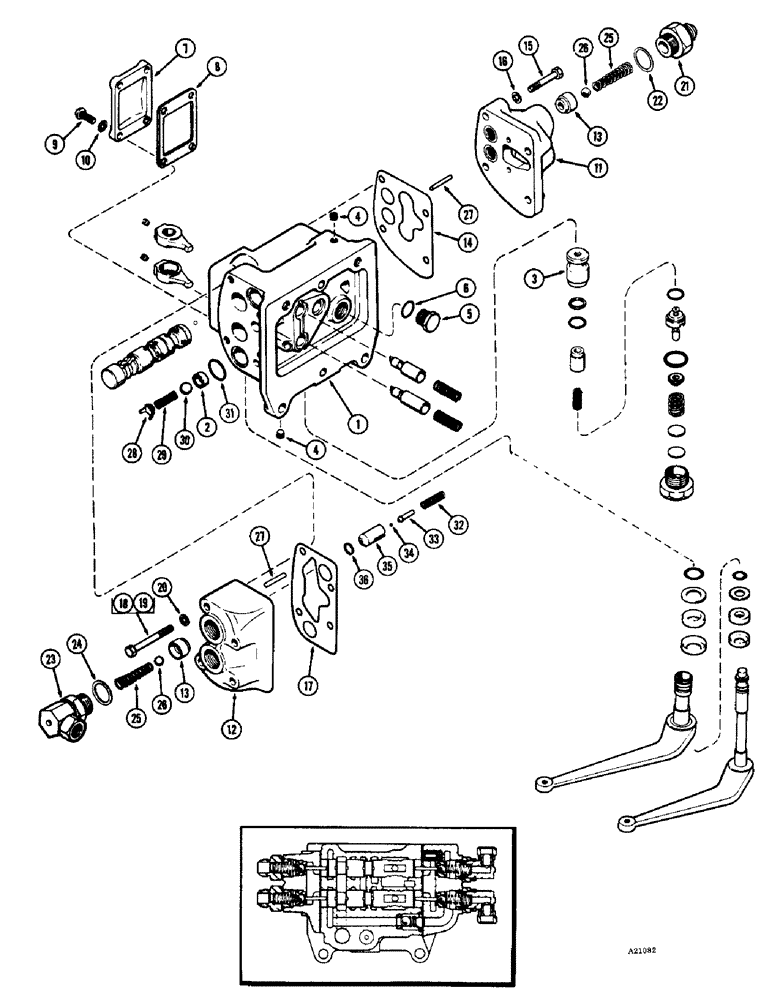

Запчасти Case IH 1470 (146) - A57571 AUXILIARY VALVE (08) - HYDRAULICS

A57571

VALVE

ASSY. - aux. non-float w/tag (Not illust.), Includes: Ref. 1 - 36

1шт.

1

A57534

BODY

ASSY. - hyd. valve, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT - ball, check valve

4шт.

3

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve pilot

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- body (1/8" P.T. hex. sckt. hd.)

4шт.

5

86512512

PLUG,7/8" - 14 ORB

- Body port, Incl. Ref. 6 Hex Hd, 7/8"-14 ORB

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8" x 3/4" x 3/32")

1шт.

7

A57552

CAP

- valve body

1шт.

8

A30854

GASKET

- cap

1шт.

9

75-414

SCREW,Rd, 1/4" x 7/8"

- mach. (1/4" x 7/8" N.C. rd. hd.)

4шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

11

A57564

VALVE

HEAD ASSY. - aux. valve, front head

1шт.

12

A57565

VALVE

HEAD ASSY. - aux. valve, rear head, Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

SEAT - aux. valve head

2шт.

14

A57560

GASKET

- hyd. valve front head

1шт.

15

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- front head (3/8" x 2-3/4" N.C. hex.)

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

A57561

GASKET

- hyd. valve rear head

1шт.

18

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Rear head Hex, 3/8"-16 x 1 3/4", G5

2шт.

19

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- rear head 3/8" x 2-1/2" N.C. hex.

2шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

A57569

FITTING

- remote valve outlet front head

2шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - hyd. fitting, 3/4" O.D.

2шт.

23

A57562

ADAPTER

ASSY. - swivel, aux, valve rear head

2шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - hyd. fitting, 3/4" O.D.

1шт.

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - inside, hyd. fitting (Not illust.)

1шт.

25

A30877

SPRING

- return, ball check

4шт.

26

211-13

BALL,1/2" Dia

- hyd. valve return 1/2" Dia

4шт.

27

A57559

SPOOL

- hyd. valve aux.

4шт.

28

A27364

GUIDE

- spring, aux. valve ball check

4шт.

29

A27452

SPRING

- check, aux. valve outlet

4шт.

30

211-15

BALL,5/8" Dia

- hyd. valve body seat, 5/8" steel

4шт.

31

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - ball check spring guide

4шт.

32

A57396

SPRING

- relief valve ball

2шт.

33

A57568

GUIDE

- ball, thermal valve

2шт.

34

211-3

BALL,1/8" Dia

- 1/8" steel

2шт.

35

A57570

SEAT

- thermal valve

2шт.

36

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - thermal valve

2шт.
