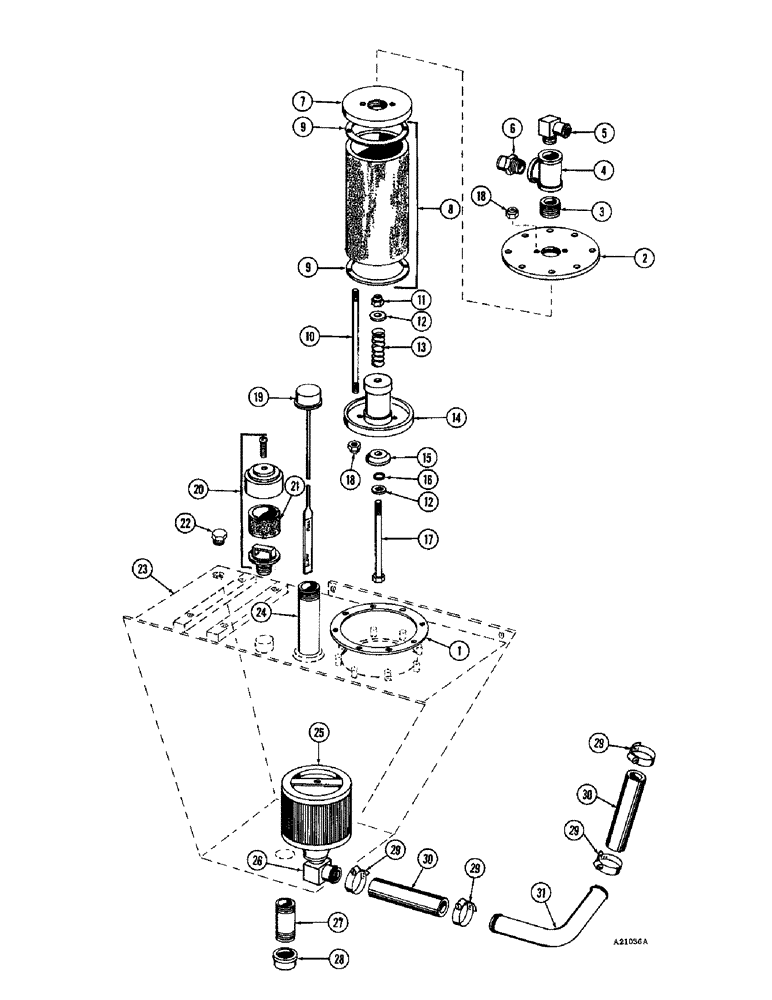

Запчасти Case IH 1470 (144) - HYDRAULIC OIL RESERVOIR AND FILTER (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

TANK ASSY. - hyd. oil, w/filter, Includes: Ref. 1 - 29

1шт.

T38502

FILTER ASSY.

1шт.

1

A17427

GASKET

- filter cover, Includes: Ref. 2 - 18

1шт.

2

L12384

COVER - filter

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, - on studs 3/8"-16, G5

8шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

195-104

WASHER,3/8"

- plain, Z.P. 3/8"

8шт.

3

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE - 1" N.P.T.

1шт.

4

221-426

FITTING,1" NPT

TEE - 1" N.P.T.

1шт.

5

217-330

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1" Male NPTF

ADAPTER - 90 degree, return 3/4" I.D. hose

1шт.

6

217-156

FITTING,1" Hose Barb x 1" Male NPTF

ADAPTER - remote return 1" I.D. hose

1шт.

7

A18784

CAP

- filter

1шт.

8

A16784

KIT

ELEMENT KIT - filter

1шт.

9

A16735

GASKET

- filter element

2шт.

10

A18786

STUD

- hyd. filter

2шт.

11

131-506

NUT,1/4-20

NUT - Flexloc (1/4" N.C.)

1шт.

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C.)

2шт.

12

195-18

WASHER,1/4"

- flat, () 1/4"

2шт.

13

A30709

VALVE SPRING

SPRING - relief

1шт.

14

A18780

CYLINDER END CAP

CAP - oil filter

1шт.

15

A18785

COVER ASSY

VALVE - filter relief

1шт.

16

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - valve seal

1шт.

17

13-488

BOLT - 1/4" x 5-1/2" N.C. hex.

1шт.

18

131-507

NUT

- Flexloc - (5/16" N.C.)

2шт.

19

A55178

GAUGE - level, hyd. oil

1шт.

20

A9238

BREATHER

ASSY. - hyd. oil tank, Includes: Ref. 21

1шт.

21

A10059

FILTER, ELEMENT

ELEMENT - breather

1шт.

22

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - 3/8" pipe

1шт.

23

T38503

TANK - hyd. oil

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

195-106

WASHER,1/2"

- plain, Z.P. 1/2"

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

221-274

NIPPLE - 1-1/4" N.P.T. x 8

1шт.

25

A18789

FILTER, ENGINE OIL

FILTER - suction

1шт.

26

217-138

ADAPTER - tank outlet, 1-1/2" I.D. hose

1шт.

27

221-243

PIPE,Nipple, 1" NPT x 4"

NIPPLE - 1" N.P.T. x 8"

1шт.

28

221-527

CAP,1" NPT

- drain

1шт.

29

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP - hose

4шт.

30

T38494

HOSE - pump inlet

2шт.

31

T38499

TUBE - pump inlet 1.38" ID x 1.5" OD x 7.68, 7" L

1шт.
