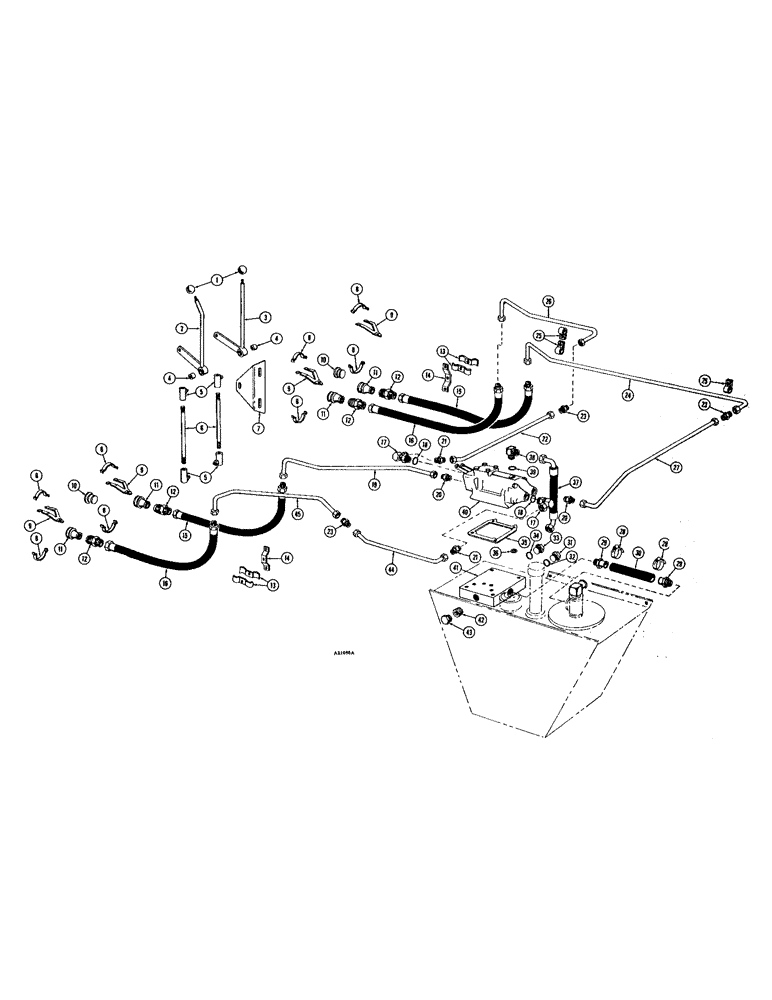

Запчасти Case IH 1470 (138) - REMOTE HYDRAULIC CIRCUIT AND CONTROLS (08) - HYDRAULICS

1

A18852

KNOB

2шт.

2

T38515

LEVER ASSEMBLY - R.H. valve control

1шт.

3

T38516

LEVER ASSEMBLY - L.H. valve control

1шт.

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Nut Hex, 3/8"-16 x 3 1/4", G5

1шт.

195-104

WASHER,3/8"

- flat, Z.P. 3/8"

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

4

L12366

SLEEVE - lever pivot

2шт.

5

A27382

BALL

JOINT - ball pivot

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

6

T38508

ROD -, Serial Range: lever-valve

2шт.

129-122

NUT,5/16"-24, G5

4шт.

7

L12398

BRACKET - lever pivot

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

8

A27423

CLAMP

- coupling

8шт.

173-262

X

SCREW - mach., #8-32 x 5/8" rd. hd. Z.P.

8шт.

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

8шт.

129-16

NUT,#8-32

8шт.

9

A27360

BRACKET

- coupling mounting

4шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

10

A22768

PLUG

- dust coupling

4шт.

11

A28542

COUPLING, QUICK, FEM

COUPLING - assy. hyd., female (Repairs Figure 150)

4шт.

12

A55695

ADAPTER - break-away coupling

4шт.

13

T37564

CLAMP - hose mounting

4шт.

113-323

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

2шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

129-104

NUT,7/16"-14, G5

2шт.

14

T38509

BRACKET - clamp mounting

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

195-104

WASHER,3/8"

- plain, Z.P. 3/8"

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

15

T39606

HOSE

- tube to top coupling

2шт.

16

T39605

HOSE - tube to bottom coupling

2шт.

17

A57562

ADAPTER

SWIVEL - angle, adapter, Includes: Ref. 18

2шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - angle swivel adapter, 59/64 x 1-5/32 x 7/64"

2шт.

19

T38523

TUBE - R.H. rear valve to coupling 0.625" OD

1шт.

20

A57569

FITTING

- remote valve outlet

2шт.

21

T38980

ADAPTER - valve to cyl. tube

2шт.

22

T38519

PULLEY,0.625" OD

TUBE - L.H. rear valve to coupling

1шт.

23

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- tube to tube

3шт.

24

T38518

TUBE - L.H. lower coupling to valve 0.625" OD

1шт.

25

NLS

NO LONGER SERVICED

- tube

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

26

T38520

TUBE - L.H. upper coupling to valve 0.625" OD

1шт.

27

T38517

TUBE - L.H. front valve to coupling 0.625" OD

1шт.

28

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - remote hose

2шт.

29

217-156

FITTING,1" Hose Barb x 1" Male NPTF

ADAPTER - 1" I.D. hose

2шт.

30

T38510

HOSE

- remote, Serial Range: valve-filter

1шт.

31

273916

PLUG,Hex, 1-5/16" - 12 ORB

Return port, Includes Ref. 32 Hex Hd, 1 5/16"-12 ORB

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - return port 1-11/64 x 1-13/32 x 7/64

1шт.

33

218-5159

PLUG,1-3/16" - 12 ORB

- carry over port, Includes: Ref. 34

1шт.

34

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - carry over port 1-3/64" x 1-9/32 x 7/64

1шт.

35

A32349

GASKET

- valve

1шт.

36

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

- valve

1шт.

37

T38512

TUBE ASSY.

HOSE - pump to remote valve

1шт.

38

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

valve inlet, Incl. Ref. 39 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - valve inlet, 3/4 x 59/64 x 1/8"

1шт.

40

A57571

VALVE

- remote hydraulics (Repairs Figures 146 and 148)

1шт.

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2" x 2-1/2" N.C. hex. Z.P.

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

41

T38524

BLOCK - valve mounting

1шт.

42

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" (Used w/3 point hitch only)

1шт.

43

221-12

PLUG,Sq Hd, 1/4"-18

- gauge port 1/4" N.P.T.

1шт.

44

T38521

TUBE - R.H. front valve to coupling 0.625" OD

1шт.

45

T38522

TUBE - R.H. lower coupling to valve 0.625" OD

1шт.
