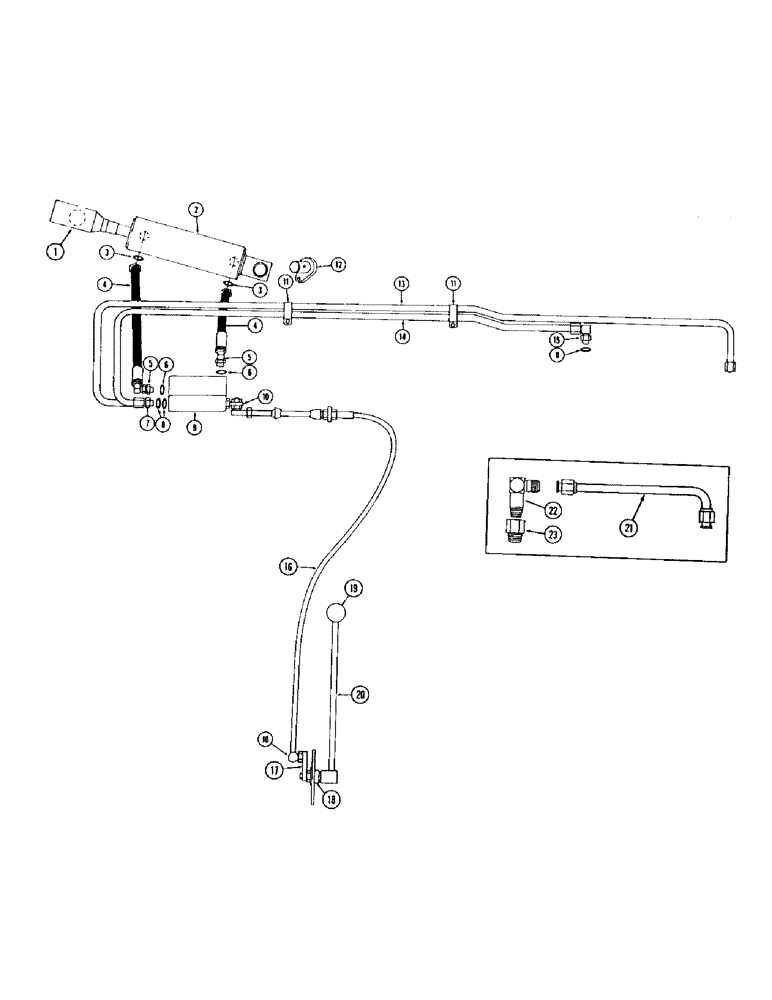

Запчасти Case IH 1470 (124) - REAR AXLE CONTROL ASSEMBLY (08) - HYDRAULICS

1

T38954

END

Socket assy., cylinder rod (Repairs Figure 134)

1шт.

2

A44898

CYLINDER

Hyd., rear axle steering (Replaces T38951) (See Figure 134), Includes: Ref. 3

1шт.

2

T38951

CYLINDER ASSY.

Hyd., rear axle steering (Order A44898) (See Figure 135A), Includes: Ref. 3

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Hose to cylinder

2шт.

4

T38939

SPARE PART, Serial Range: Valve-cylinder

2шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ADAPTER - Cylinder port, Includes Ref. 6

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Adapter, cylinder port

2шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - supply port and return port, Includes Ref. 8

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Adapter, supply port & return port

2шт.

9

REF

INSTRUCTION

VALVE ASSY. - rear steering control (See Figure 132)

1шт.

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

T38931

BALL JOINT

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

3шт.

11

T38932

CLAMP

Tube mounting

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

12

A55210

SPARE PART Steering cylinder

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

3шт.

114-409

BOLT,Hex, 1/2" - 20 x 1", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

5шт.

13

T38952

SPARE PART Return, rear steering

1шт.

14

T38953

SPARE PART Flow divider to rear steering valve

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ADAPTER - rear steering port

1шт.

16

T38938

CABLE

Control, rear steering valve

1шт.

17

T38929

SPARE PART Rear steering control

1шт.

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

1шт.

18

L10638

SPARE PART PIVOT - steering control lever

1шт.

193-17

LOCK WASHER,Ext Tooth, 1"

1шт.

25-1516

NUT,Jam, 1"-14, G5

1шт.

19

A18852

KNOB

Lever

1шт.

20

T38928

SPARE PART Rear steering control

1шт.

21

T50259

TUBE - rear, by-pass (For non-steerable axle only)

1шт.

22

218-499

SPARE PART Flared tube, 5/8" O.D. x 1/2" P.T., non-steerable rear axle only

1шт.

23

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

CONNECTOR - divider valve, 7/8" - 14 x 1/2" P.T., non-steerable rear axle only, Includes: Ref. 24

1шт.

24

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8" O.D., non-steerable rear axle only

1шт.
