Запчасти Case IH 1468 (13-46) - SUPERSTRUCTURE, CUSTOM TRACTOR CAB (05) - SUPERSTRUCTURE

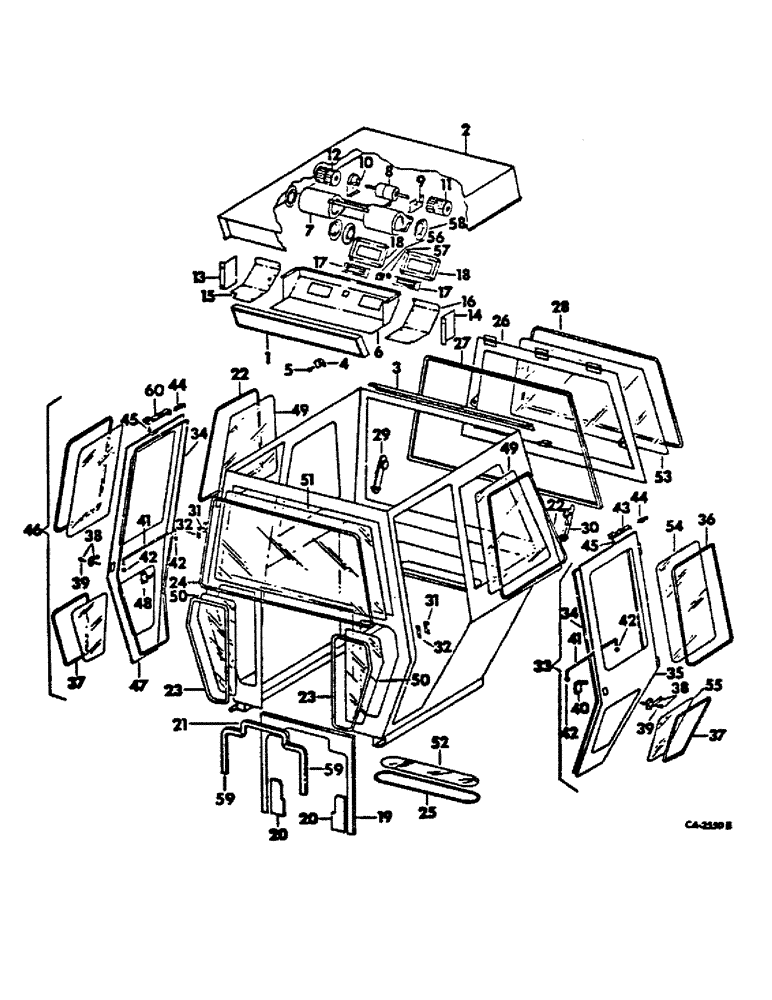

Схема запчастей Case IH 1468 - (13-46) - SUPERSTRUCTURE, CUSTOM TRACTOR CAB (05) - SUPERSTRUCTURE

Артикул

Название

Примечание

Количество

65953C92

FAN ASSY, pressurizer, composed of ref nos 6 through 12, 58 and attaching hardware

1шт.

1

537268R2

FILTER

pressurizer

1шт.

2

539073R1

ROOF ASSY, major, includes ref nos 4, 5 and attaching hardware

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

9шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

3

539041R1

SHIELD, rear window rain

1шт.

4

539022R1

LATCH, filter

1шт.

534220R1

WASHER, Bellville

1шт.

5

537467R1

BOLT (SPREADER),Shoulder, 5/16" - 18

BOLT, shoulder

1шт.

22039R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 nylon insert lock

1шт.

6

PANEL ASSY, final blower, not serviced separately, order fan assy, 65953C92

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

160556

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

8шт.

7

SCROLL ASSY, not serviced separately, order fan assy, 65953C92

1шт.

8

539031R2

MOTOR

ASSY, pressurizer

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

9

539017R1

SUPPORT

BRACKET, motor mounting LH

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

10

539019R2

SUPPORT

BRACKET, motor mounting RH

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

11

539018R2

FAN

WHEEL, blower LH

1шт.

139010

SET SCREW,Hex Soc, 1/4"-28 x 5/16"

SCREW, 1/4-28 x 5/16 headless hex-soc cup-pt set

1шт.

12

539077R2

FAN

WHEEL, blower RH

1шт.

139010

SET SCREW,Hex Soc, 1/4"-28 x 5/16"

SCREW, 1/4-28 x 5/16 headless hex-soc cup-pt set

1шт.

13

539078R1

PANEL, filler RH, without heater

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 nd hex-hd cap

2шт.

14

539039R1

PANEL, filler LH, without heater

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

2шт.

15

539046R1

PANEL, pressurizer trim RH

1шт.

16

539043R1

PANEL, pressurizer trim LH

1шт.

17

539025R1

LOUVER

2шт.

18

539040R1

COVER, louver

2шт.

24231R1

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1/2"

SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2"

8шт.

19

539037R91

PANEL ASSY, cowl, composed of ref nos 20, 21 & 59

1шт.

120376

NUT,5/16"-18, G5

9шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

9шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

9шт.

20

539101R1

SEAL

cowl panel

2шт.

21

539102R1

SEAL

cowl panel upper, 20-1/2 in. long

1шт.

22

SEAL, side panel glass molding, furnish 102 in. from a 50 ft. bulk roll marked 64515C1

1шт.

23

539079R1

SEAL, lower front glass molding, 64 in. long

2шт.

24

539080R1

SEAL, windshield glass molding, 130 in. long

1шт.

25

539081R1

SEAL, lower rear glass molding, 60 in. long

1шт.

26

539075R1

FRAME ASSY, rear window

1шт.

27

539045R1

SEAL, weather, 155 in. long

1шт.

28

539082R1

SEAL, rear window glass molding, 132 in. long

1шт.

29

533507R1

ADJUSTER, sash RH

1шт.

477242R1

WASHER

13/32 x 1 x .030

4шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

30

533506R1

ADJUSTER

sash LH

1шт.

477242R1

WASHER

13/32 x 1 x .030

4шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

31

533512R1

LARGE PLATE

PLATE, striker

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 znd slt-pan-hd mach

4шт.

121637

LOCK WASHER

WASHER, 1/4 znd light lock

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

32

533513R1

SHIM, striker plate, use as required

1шт.

33

539034R91

DOOR ASSY, LH

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 znd hex-hd cap

4шт.

121637

LOCK WASHER

WASHER, 1/4 znd light lock

4шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

34

539044R1

SEAL, door weather, 149 in. long

2шт.

35

533517R91

FRAME, LH door

1шт.

36

SEAL, upper door glass molding, furnish 86 in. from a 50 ft. bulk roll marked 64515C1

1шт.

37

SEAL, lower door glass molding, furnish 52 in. from a 50 ft. bulk roll marked 64515C1

1шт.

38

533523R1

HANDLE

W/KEY, outside door

2шт.

179355

SCREW, 10-24 x 3/4 cr-rec-ov-hd mach

4шт.

39

533857R1

KEY, door

2шт.

40

533525R2

LATCH

inside door LH

1шт.

440502

SCREW,Hex Hd, #10-24 x 5/8"

10-24 x 5/8 znd hex-hd mach

2шт.

131183

WASHER, no. 10 znd light lock

2шт.

41

533508R1

ADJUSTER, door

2шт.

42

533509R1

GROMMET

plastic

4шт.

43

537464R1

DOOR

CHECK, LH

1шт.

44

537466R1

SPRING

door check

2шт.

45

537467R1

BOLT (SPREADER),Shoulder, 5/16" - 18

BOLT, 5/16-18 shoulder

4шт.

19296R1

NUT,5/16"-18, G5

5/16-18 CDP hex.

2шт.

46

539035R91

DOOR ASSY, RH

1шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 znd hex-hd cap

4шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

4шт.

121637

LOCK WASHER

WASHER, 1/4 znd light lock

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

47

533518R91

FRAME, door RH

1шт.

48

533524R2

LATCH

inside door RH

1шт.

440502

SCREW,Hex Hd, #10-24 x 5/8"

10-24 x 5/8 znd hex-hd mach

2шт.

131183

WASHER, no. 10 znd light lock

2шт.

49

533533R1

GLASS

side, refer to tractor cab glass dimensions listing, this group

2шт.

50

539027R1

GLASS, lower front, refer to tractor cab glass dimensions listing this group

2шт.

51

539029R1

GLASS, windshield, refer to tractor cab glass dimensions listing, this group

1шт.

52

539028R1

GLASS

lower rear, refer to tractor cab glass dimensions listing, this group

1шт.

53

539030R1

GLASS, rear window, refer to tractor cab glass dimensions listing, this group

1шт.

54

533519R1

GLASS

upper door, refer to tractor cab glass dimensions listing, this group

1шт.

55

533521R1

GLASS, lower door, refer to tractor cab glass dimensions listing, this group

2шт.

56

539052R2

SWITCH

blower

1шт.

57

539024R1

KNOB

blower switch

1шт.

58

65010C1

RETAINER

RING, inlet

4шт.

23991R1

SCREW, 10-16 x 3/8 C-Z hex-hd tap

12шт.

59

66779C1

SEAL

cowl panel side, 15.5 in. long

2шт.

60

537465R1

DOOR

CHECK, RH

1шт.

66356C1

PANEL

upholstery repair, 52 in. x 54 in. x 1 in.

1шт.

534441R1

FLUID

ADHESIVE, upholstery repair, one quart can

1шт.

Выбрано товаров: 106
