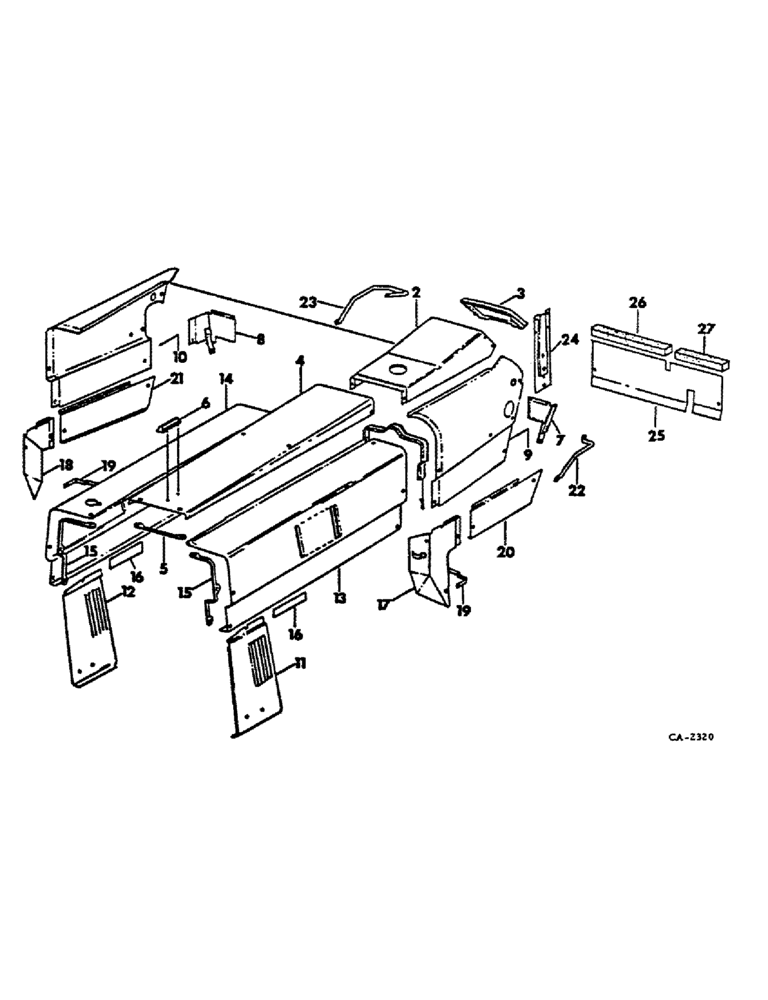

Запчасти Case IH 1468 (13-06) - SUPERSTRUCTURE, HOOD, PANELS AND SUPPORT, 1468 TRACTORS (05) - SUPERSTRUCTURE

1

531031R2

SUPPORT ASSY, rear hood front

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

6шт.

179831

SCREW,Hex, 3/8" - 16 x 3/8"

3/8-16 x 3/8 hex-hd cap

4шт.

2

531060R1

CHANNEL, rear hood

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 x 5/8 C-Z slt-hex. washer hd cap

4шт.

3

531038R1

HOUSING

instrument

1шт.

3

531038R1GV

INSTRUMENT PANEL

Value, Instrument Panel Housing

1шт.

21533R1

BOLT

SCREW, 5/16-18 x 5/8 CDP hex-hd cap

2шт.

4

531040R2

SHEET

CHANNEL, front hood

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

4шт.

373483R2

BOLT,Hex, 5/16" - 18

shoulder

2шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

2шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

2шт.

5

536649R1

GASKET

hood channel

1шт.

6

538005R1

ORNAMENTAL STRIP

ORNAMENT, hood

1шт.

445165

NUT,5/32", Push-on

spring

2шт.

7

531488R1

HOUSING ASSY, steering support lower LH

1шт.

8

531493R1

HOUSING

ASSY, steering support lower RH

1шт.

9

538519R1

HOOD W/PRODUCT GRAPHIC, LH rear

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

2шт.

187758

PLUG,2 1/2"

2-1/2 in. button, torque amplifier opening

1шт.

10

531046R1

HOOD ASSY, RH rear

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

2шт.

11

531063R2

PANEL

radiator slupport LH

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 CDP hex. washer hd cap

3шт.

12

531064R2

PANEL

radiator support RH

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 CDP hex. washer hd cap

3шт.

13

531055R3

HOOD

LH front

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

3шт.

373483R2

BOLT,Hex, 5/16" - 18

shoulder

3шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

3шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

3шт.

14

538153R1

HOOD, RH front

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

3шт.

373483R2

BOLT,Hex, 5/16" - 18

shoulder

3шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

3шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

3шт.

15

536661R1

GASKET

LH front hood

1шт.

15

536662R1

GASKET

GASKET, RH front hood

1шт.

16

536651R1

STRIP

SEAL, front hood

2шт.

17

538155R1

BAFFLE ASSY, front heat LH

1шт.

280184R1

SPACER, 11/32 x 7/8 x 7/8

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

1шт.

373483R2

BOLT,Hex, 5/16" - 18

shoulder

1шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

1шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

1шт.

18

531502R2

BAFFLE ASSY, front heat RH

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

1шт.

280184R1

SPACER, 11/32 x 7/8 x 7/8

1шт.

373483R2

BOLT,Hex, 5/16" - 18

shoulder

1шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x1-1/8 x .048 C-Z

1шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

1шт.

19

532884R1

BRACKET ASSY, front baffle

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

LH side only Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

536755R1

RUBBER WASHER

rubber

2шт.

20

531499R1

BAFFLE

ASSY, rear heat LH

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

2шт.

21

531500R1

BAFFLE

rear heat RH

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

2шт.

22

397890R2

HANDLE

operators mounting assist LH

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

23

399306R2

HANDLE

operators mounting assist RH

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

24

531058R1

CHANNEL ASSY, rear hood support mounting

2шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

8шт.

25

538154R1

STRAP, front heat baffle

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

26

538156R1

SEAL, lower RH heat shield

1шт.

27

538157R1

GASKET

SEAL, lower LH heat shield

1шт.
