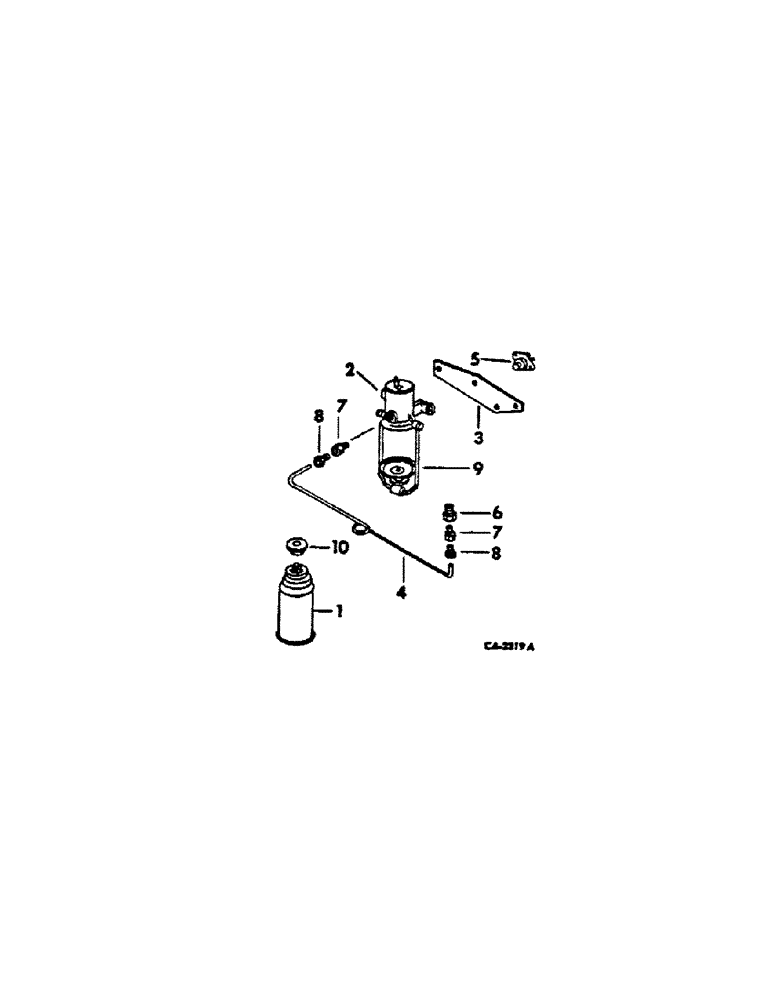

Запчасти Case IH 1468 (12-23) - POWER, ETHER STARTING SYSTEM, 1468 TRACTORS Power

1

385064R91

FLUID

ether staring, 12 ounce can

1шт.

2

393719R92

NOZZLE

SOLENOID ASSY, ether starting, for replacement order 121842C91 solenoid assy, composed of ref nos 9 and 10

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

2шт.

3

538142R1

BRACKET, ether starting solenoid

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

TUBE ASSY, ether solenoid to manifold, use 20 in. of 1/8 OD copper tubing from 50 ft roll marked, 995059R1 and two nuts, 36059R1 and two nuts, 36092D

1шт.

5

397940R93

SWITCH

ether solenoid push button

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

. 10-32 x 1/2 C-Z slt-pan hed mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120611

NUT,#10 - 32

10-32 C-Z sq

2шт.

6

269635R91

NOZZLE CAP

NOZZLE ASSY, ether starting fluid

1шт.

7

59939D

HYD CONNECTOR,1/8" NPT x 5/16"-24

CONNECTOR, 5/16-24 hi-duty fitting male

2шт.

8

222-500

TUBE NUT,5/16" - 24 NPT

NUT, 5/16-24 hi-duty tube fitting

2шт.

9

404247R1

BAIL

ASSY, injector

1шт.

10

395686R1

GASKET

ether starting injector

1шт.
