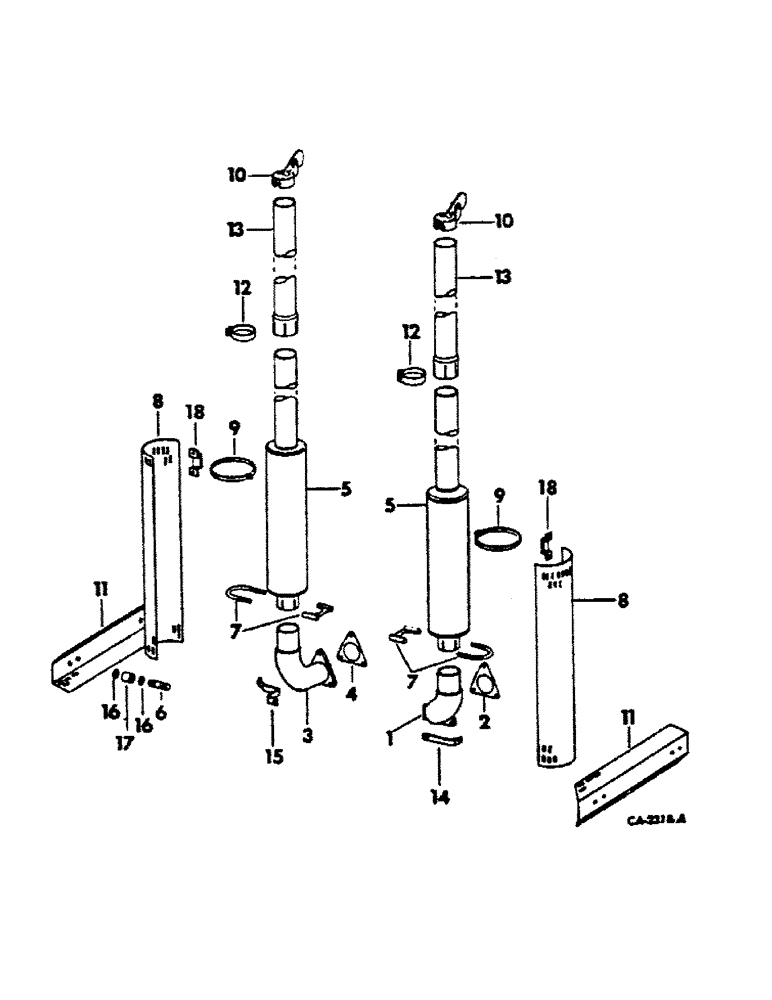

Запчасти Case IH 1468 (12-21) - POWER, EXHAUST SYSTEM, 1468 TRACTORS Power

1

538143R1

ELBOW

LH exhaust

1шт.

25096R1

WASHER, 15/32 x 59/64 x 16 ga

3шт.

279098R1

SCREW, 7/16-14 x 1-1/4 hex-hd cap

3шт.

2

428099C1

MANIFOLD GASKET

exhaust elbow

1шт.

3

538144R1

ELBOW

RH exhaust

1шт.

496-21047

WASHER

15/32 x 59/64 x .060

3шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, 7-16/14 x 1-1/4 hex-hd cap

3шт.

4

428099C1

MANIFOLD GASKET

exhaust elbow

1шт.

5

538148R1

MUFFLER

exhaust

2шт.

6

539992R1

STUD, exhaust manifold heat shield

4шт.

9413243

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 hex lock

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .06 znd

4шт.

7

68217C91

CLAMP

PACKAGE, muffler clamp assembly service, consists of (1) clamp 538149R1 (NSS), (2) nut 535993R1, (1) u-bolt 538150R1 (NSS), (2) washer 103321

1шт.

535993R1

NUT

clamp

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

538152R1

SHIELD, muffler heat

2шт.

9

371677R91

HOSE CLAMP,#92, 5.38/6.25 Type F Worm, W/liner

CLAMP, muffler heat shield

2шт.

10

321575R91

CAP

ASSY, exhaust

2шт.

11

538146R1

SHIELD, exhaust manifold heat

2шт.

12

396910R2

CLAMP

exhaust pipe

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

538426R1

PIPE, EXHAUST SYSTEM

PIPE, exhaust extension

2шт.

14

539998R1

BRACKET, muffler shield LH

1шт.

19296R1

NUT,5/16"-18, G5

5/16-18 CDP hex

2шт.

21533R1

BOLT

SCREW, 5/16-118 x 5/8 CDP hex-hd cap

2шт.

619855R1

WASHER

11/32 x 3/4 x .054 znd

2шт.

15

539999R1

BRACKET, muffler shield RH

1шт.

19296R1

NUT,5/16"-18, G5

5/16-18 CDP hex

2шт.

21533R1

BOLT

SCREW, 5/16-18 x 5/8 CDP hex-hd cap

2шт.

619855R1

WASHER

11/32 x 3/4 x .054

2шт.

16

539991R1

WASHER

heat shield

8шт.

17

345505C1

SPACER, manifold heat shield

4шт.

18

539997R1

BRACKET, heat shield upper

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16-18 znd hex jam

4шт.

22506R1

SCREW

5/16-18 x 1/2 CDP hex-hd cap

4шт.

619855R1

WASHER

11/32 x 3/4 x .054 znd

4шт.
