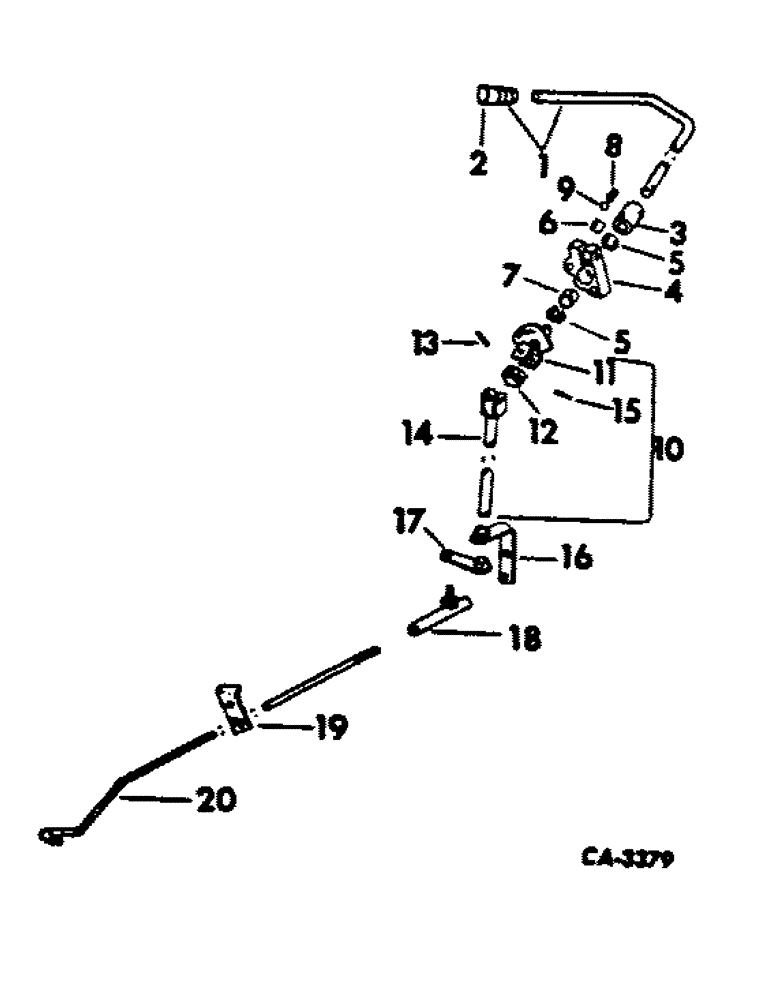

Запчасти Case IH 1468 (12-18) - POWER, GOVERNOR AND FUEL SHUT-OFF CONTROLS, 1468 TRACTORS Power

1

533206R93

HANDLE

ASSY, governor control

1шт.

2

397931R2

GRIP

1шт.

2

397931R2GV

SPRING

Valub, Knob

1шт.

3

533208R1

COUPLING

governor control

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

4

533209R1

CLAMP

friction adjusting

1шт.

181004

BOLT,Hex, 5/16" - 24 x 1 1/8", Gr 5

SCREW, 5/16-24 x 1-1/8 znd hex-hd cap

2шт.

5

535684R1

WASHER

lever stop felt

2шт.

6

535685R1

SPACER

lever stop felt

1шт.

7

533210R1

BUSHING,19.07mm ID x 20.79mm OD x 17.02mm L

BEARING, friction

1шт.

20057R1

NUT

SCREW W/NYLON PELLET INSERT, 5/16-24 x 1-1/4 znd hex-hd cap

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

8

400209R1

VALVE SPRING

SPRING, governor control poppet

1шт.

9

16011R1

BALL

11/32 cr-stl

1шт.

10

533222R91

SPARE PART

JOINT & SHAFT ASSY, governor control

1шт.

11

533212R1

STOP

ASSY, lever

1шт.

12

382691R1

CROSS

BLOCK, universal joint center

1шт.

13

382692R1

PIN

center block

1шт.

14

382694R11

ROD

SHAFT ASSY, governor control lower

1шт.

15

385681R1

PIN

1шт.

16

382695R11

BRACKET

SUPPORT ASSY, governor control shaft

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

17

538138R1

LEVER ASSY, governor control rod operating

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

18

366795R92

JOINT TURNING

JOINT ASSY, spring loaded ball

1шт.

231-2444

NUT,1/4"-28, GB

NUT, 1/4-28 nylon insert

1шт.

19

538137R1

GUIDE, governor control rod

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

20

538140R1

ROD, governor control front

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.
