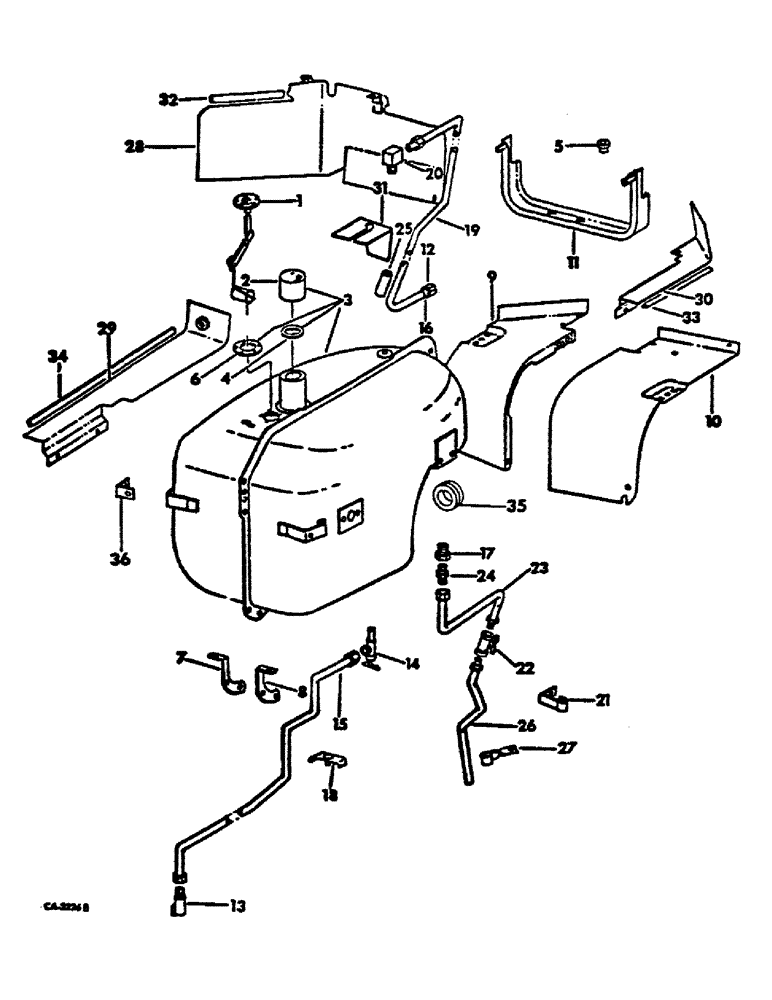

Запчасти Case IH 1468 (12-12) - POWER, FUEL TANK, SUPPORTS AND TUBING, 1468 TRACTORS Power

1

378427R92

GAUGE

SENDING UNIT, electric fuel gage

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

2

361910R91

PLUG

CAP W/GASKET, fuel tank filler

1шт.

3

381379R93

TANK

ASSY, fuel, composed of (2) bracket 531910R11, (1) cap 361910R91, (1) cover 369155R1, (1) gasket 369154R1, (1) plug 445686, (2) screw 179814, (5) screw 372627R91, (1) tank 381393R93 (NSS)

1шт.

389117R91

NUT

5/16-18 floating cage

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

4

23977DB

GASKET

fuel tank filler cap

1шт.

5

538646R1

BUSHING

fuel tank support isomount

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap

2шт.

22191R1

WASHER

17/32 x 1-3/4 x 7 ga

2шт.

22042R1

WASHER

1/2 x 2 x 11 ga

2шт.

6

369154R1

GASKET

sending unit

1шт.

7

531296R1

BRACKET, fuel tank rear support LH

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

8

531297R1

BRACKET, fuel tank rear support RH

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

538131R1

SHIELD ASSY, lower heat LH

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

10

538133R1

SHIELD ASSY, lower heat RH

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

3шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

11

538369R1

SUPPORT ASSY, fuel tank

1шт.

179814

SPACER

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

2шт.

12

166483R1

NUT

5/16 coupling

1шт.

13

193004

ELBOW

5/8-18 90 deg inverted flared tube, tank to filter, filter end

1шт.

14

537978R1

LOCK VALVE

VALVE, fuel tank shut off

1шт.

15

TUBE ASSY, fuel tank to fuel filter, use 52.5 in. of 3/8 OD copper tubing from 50 ft roll marked, 995063R1 and two nuts, 137399

1шт.

222-1004

TUBE NUT,5/8" - 18

NUT, 5/8-18 inverted flared tube

2шт.

16

134630H1

SLEEVE

5/16 OD tube

1шт.

17

119933

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

3/8 x 1/8 reducing pipe

1шт.

18

538128R1

CLAMP

ASSY, tube

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

19

TUBE ASSY, fuel return line, use 37 in. of 5/16 OD copper tubing from 50 ft roll market, 995062R1 and two nuts, 137398

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 inverted flared tube

2шт.

20

538127R1

ELBOW, fuel return line

1шт.

21

363478R1

CLIP, fuel return line

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

22

385747R91

COCK

VALVE, fuel tank drain w/nut & sleeve

1шт.

23

TUBE ASSY, fuel tank drain upper, use 14.5 in. of 1/4 OD copper tubing from 50 ft roll marked, 995061R1, one nut, 137397, one nut, 114627 and one sleeve, 114628

1шт.

137397

NUT

7/16-24 inverted flared tube

1шт.

24

442321

ROD, CONNECTING

CONNECTOR, 1/8-27 inverted flared tube, fuel drain

1шт.

25

534250R1

HOSE

SLEEVE, return line

1шт.

26

TUBE ASSY, fuel tank drain lower, use 19.0 in. of 1/4 OD copper tubing from 50 ft roll marked, 995061R1, one nut, 114627 and one sleeve, 114628

1шт.

27

289354R1

CLIP, fuel drain tube lower

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 1 hex-hd cap

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

28

533332R2

SHIELD ASSY, upper heat

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

29

538135R1

EXTENSION ASSY, LH heat shield

1шт.

171700

SCREW, 8-32 x 1/4 slt-pan-hd tap

5шт.

30

531304R1

EXTENSION ASSY, RH heat shield

1шт.

171700

SCREW, 8-32 x 1/4 slt-pan-hd tap

3шт.

31

533333R1

SHIELD, center heat

1шт.

171700

SCREW, 8-32 x 1/4 slt-pan-hd tap

4шт.

32

SEAL, heat shield upper, use 15 in. of seal, 536503R1

1шт.

33

536503R1

SEAL

heat shield LH side

1шт.

34

SEAL, heat shield RH side, use 25 in. of seal, 536503R1

1шт.

35

71072C1

GROMMET, rubber, oil cooler hose

1шт.

36

531310R11

BRACKET ASSY, assist handle mtg

2шт.

179814

SPACER

2шт.
