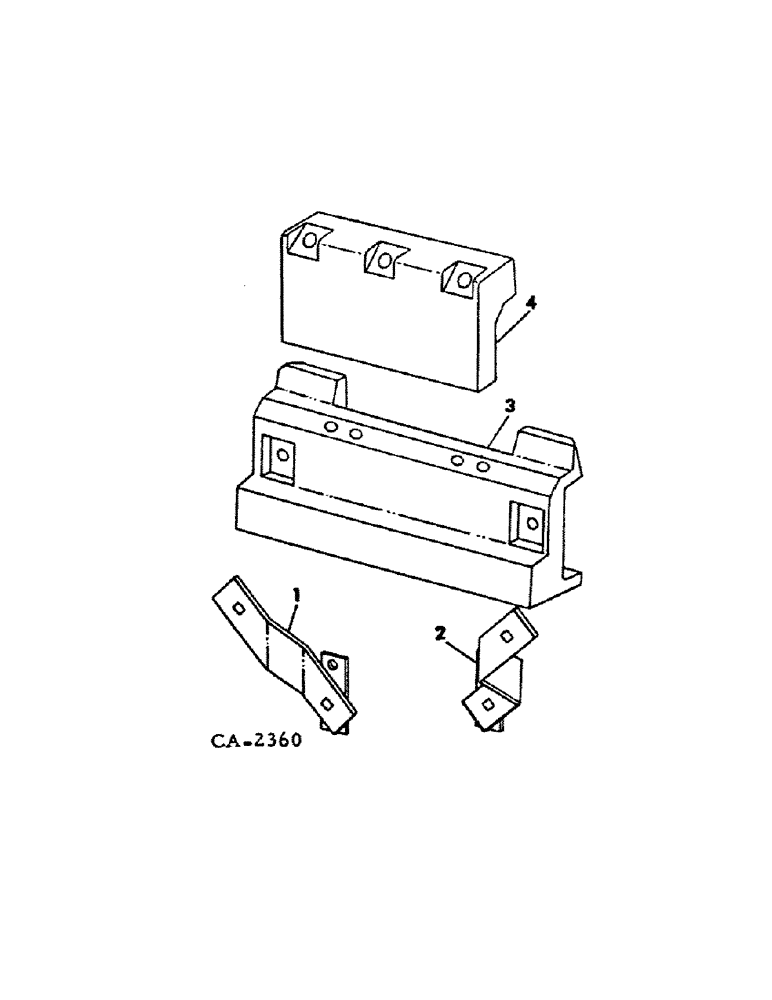

Запчасти Case IH 1468 (09-23[A]) - FRAME, SIDE WEIGHTS AND MOUNTING BRACKETS, 1468 TRACTORS (12) - FRAME

1

538831R1

BRACKET ASSY, side weight LH

2шт.

223441

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

SCREW, 5/8-11 x 3-1/4 hex-hd cap

2шт.

223442

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

SCREW, 5/8-11 x 3-1/2 hex-hd cap

2шт.

2

538834R1

BRACKET ASSY, side weight RH

2шт.

223441

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

SCREW, 5/8-11 x 3-1/4 hex-hd cap

2шт.

223442

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

SCREW, 5/8-11 x 3-1/2 hex-hd cap

2шт.

3

541024R2

WEIGHT, side

2шт.

15058R1

BOLT, 5/8-11 x 1-3/4 sq-nk crg

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

102639

NUT,5/8"-11, G5

4шт.

4

541026R1

WEIGHT, saddle auxiliary

2шт.

21613R1

BOLT,Hex, 1" - 8 x 3 3/4", Gr 5

1-8 x 3-3/4 znd hex-hd

2шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.
