Запчасти Case IH 1466 (07-73) - DRIVE TRAIN, POWER TAKE OFF LEVER AND CONTROLS (04) - Drive Train

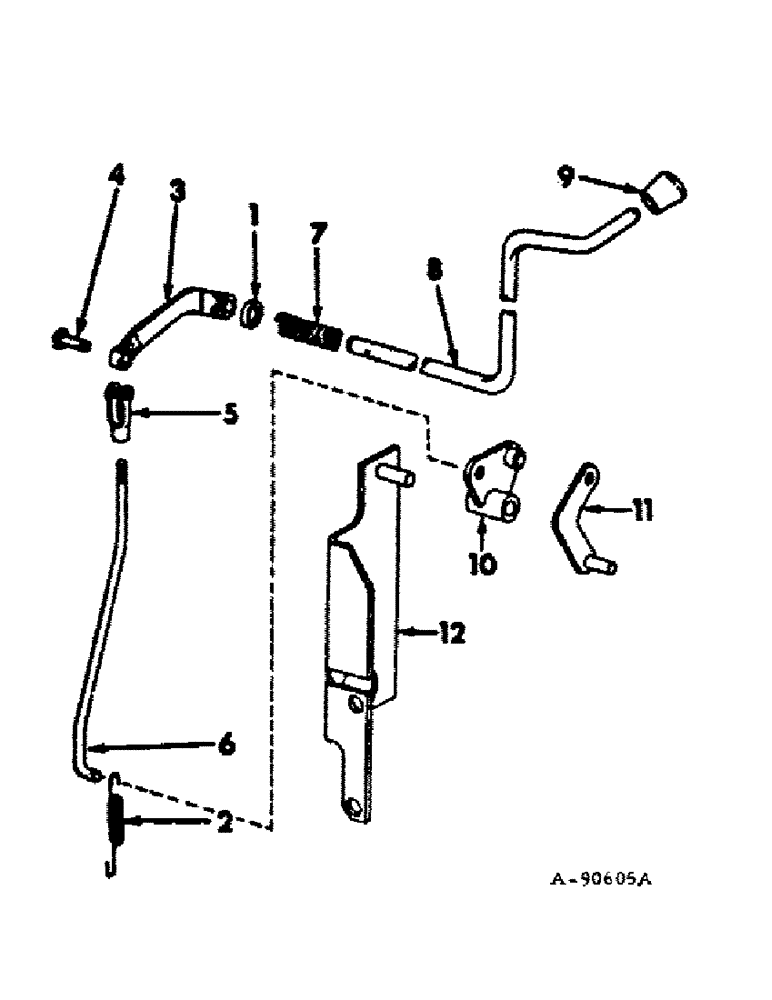

Схема запчастей Case IH 1466 - (07-73) - DRIVE TRAIN, POWER TAKE OFF LEVER AND CONTROLS (04) - Drive Train
11
9
5
8
4
12
1
2
10
3
6
7

Артикул

Название

Примечание

Количество

1

533486R1

DRIVEN PLATE

DISC, independent PTO handle friction

1шт.

2

401222R1

VALVE SPRING

SPRING, IPTO linkage anti-friction

1шт.

3

533487R1

ARM

independent PTO

1шт.

4

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end, independent PTO actuation rod

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

5

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 rod end adjustable

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

6

399633R1

ROD

independent PTO actuating

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

7

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

399635R1

VALVE SPRING

SPRING, indpendent PTO handle rod

1шт.

8

533488R1

STEM

ROD, independent PTO handle

1шт.

443023

GROOVED PIN,3/16" x 1", Type F

Pin, Grooved, 3/16" x 1", Type F

1шт.

9

387885R1

KNOB

independent PTO handle rod

1шт.

10

539624R1

LEVER

over-center, replaces 384189R12 by also ordering pin, 20797R1 on 766, Serial Range: -7611

1шт.

10

539624R1

LEVER

over-center, replaces 384189R12 by also ordering pin, 20797R1 on 966, Serial Range: -14232

1шт.

10

539624R1

LEVER

over-center, replaces 384189R12 by also ordering pin, 20797R1 on 1066, Serial Range: -17320

1шт.

10

539624R1

LEVER

over-center, replaces 384189R12 by also ordering pin, 20797R1 on 1466, Serial Range: -12279

1шт.

10

539624R1

LEVER

over-center, replaces 384189R12 by also ordering pin, 20797R1 on 1468, Serial Range: -7142

1шт.

20797R1

PIN, 5/16 x 1-1/4 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

1шт.

11

384192R21

ANGLE

LINK ASSY, valve stem actuating

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

1шт.

12

399626R1

SUPPORT

ASSY, valve linkage

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

189787

BOLT,Hex, 1/2" - 13 x 5 1/4", Gr 5

SCREW, 1/2-13 x 5-1/4 hex-hd cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 16 ga) 3/8"

1шт.

529144R1

SPACER

BUSHING, independent PTO lever, tractors with cab, illustrated with tractor cab and connections unit, see group 13

1шт.

529143R1

LEVER

ASSY, independent PTO, tractors with cab, illustrated with tractor cab and connections unit, see group 13

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

662579R1

GRIP

lever handle, tractors with cab, illustrated with tractor cab and connections unit, see group 13

1шт.

Выбрано товаров: 36
