Запчасти Case IH 1466 (07-48) - DRIVE TRAIN, REAR AXLE AND CONNECTIONS, 1466 AND 1468 TRACTORS (04) - Drive Train

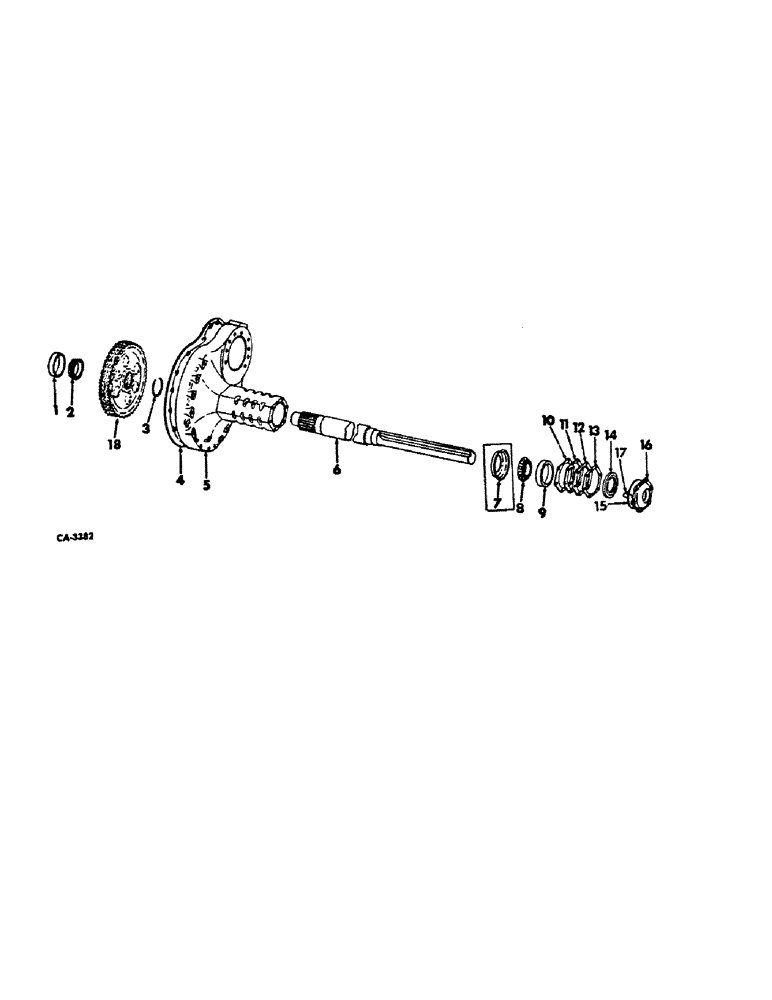

Схема запчастей Case IH 1466 - (07-48) - DRIVE TRAIN, REAR AXLE AND CONNECTIONS, 1466 AND 1468 TRACTORS (04) - Drive Train
9
1
7
15
16
6
2
8
10
3
13
17
11
14
4
12
18
5

Артикул

Название

Примечание

Количество

1

56040R1

BEARING CUP,2.5938" ID x 4.8125" OD x 1.71875"

rear axle inner cup

2шт.

2

391695R91

BEARING ASSY,2.5938" ID x 4.8125" OD x 1.71875, 1.4375"

rear axle inner cone

2шт.

3

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer snap

2шт.

4

380225R1

GASKET

rear axle carrier

2шт.

5

380224R5

AXLE CARRIER

CARRIER, rear axle

2шт.

444746

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 auto sq-hd drain & filler

2шт.

271568

PIPE FITTING,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap

28шт.

NLS

NO LONGER SERVICED

5/8-11 x 4-1/4 hex-hd

8шт.

343772R1

SCREW, rear axle carrier set

1шт.

6

529787R2

CENTER AXLE

AXLE, rear, 100 inch tread

2шт.

6

529786R1

AXLE

rear, 118 in. tread

2шт.

Ref #6 - 529786R1 is 54"

1шт.

7

528715R1

RETAINER

rear axle outer brg grease, 1466, Serial Range: -9056

2шт.

8

11351D

ROLLER BEARING

ASSY, rear axle outer cone

2шт.

9

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

BEARING, rear axle outer cup

2шт.

10

380227R2

SHIM

rear axle carrier cap, .007

6шт.

11

380228R2

SHIM

rear axle carrier cap, .012 (or as required)

4шт.

12

380229R2

SHIM

rear axle carrier cap, .030

1шт.

13

380230R2

SHIM

rear axle carrier cap, .004

1шт.

13

385158R2

SHIM

rear axle carrier cap, .003

1шт.

14

529466R91

SEAL ASSY.

SEAL, rear axle carrier cap oil

2шт.

15

529133R1

RING

rear axle carrier cap sealing

2шт.

16

528716R1

COVER

CAP, rear axle carrier

2шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

17

392346R1

BRACKET

rear wheel inner position gauge

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

BULL GEAR , refer to differential listing, this group

1шт.

Выбрано товаров: 29
