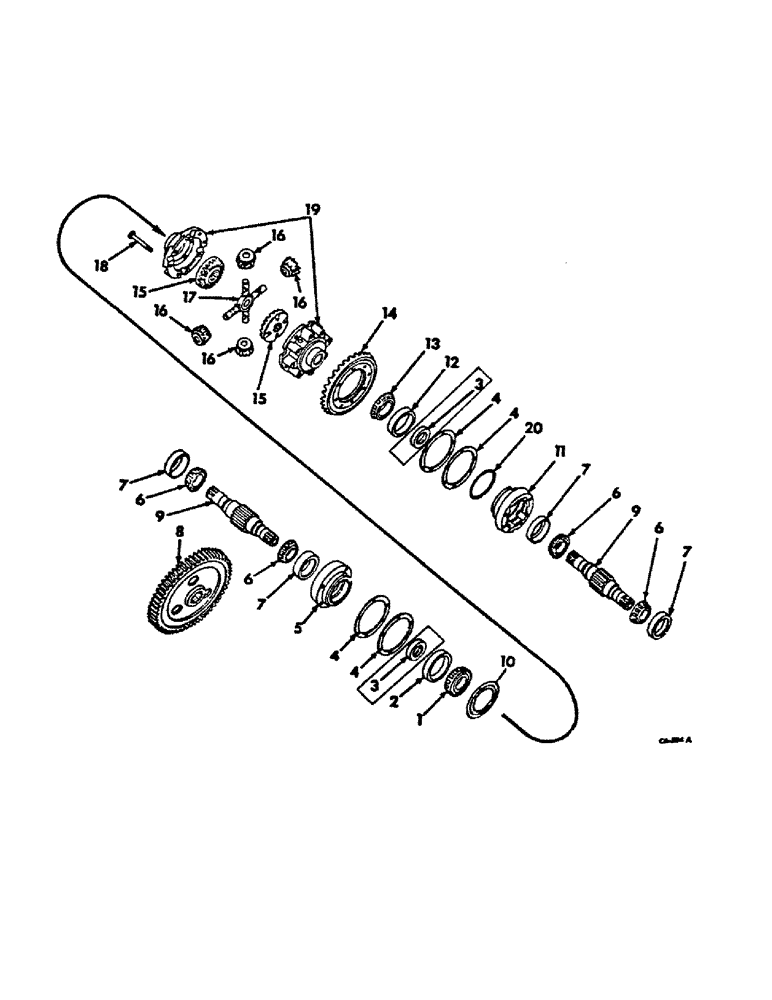

Запчасти Case IH 1466 (07-40) - DRIVE TRAIN, DIFFERENTIAL, 1466 AND 1468 TRACTORS (04) - Drive Train

1

529452R91

ROLLER BEARING

ASSY, LH cone

1шт.

2

529453R1

BEARING, CUP

BEARING, differential LH cup

1шт.

3

391689R91

OIL SEAL

SEAL, differential brg retainer oil, 1466, Serial Range: -14999

2шт.

3

391689R91

OIL SEAL

SEAL, differential brg retainer oil, 1468, Serial Range: -8999

2шт.

3

67609C1

BAFFLE

differential lube oil, 1466, Serial Range: 15000-18216

2шт.

3

67609C1

BAFFLE

differential lube oil, 1466, Serial Range: 19056-19138

2шт.

3

67609C1

BAFFLE

differential lube oil, 1468, Serial Range: 9000-9555

2шт.

3

67609C1

BAFFLE

differential lube oil, 1468, Serial Range: 9634-9641

2шт.

4

SHIM, differential bearing retainer, available in the following size options

1шт.

4

385155R1

SHIM

.003

1шт.

4

380205R1

SHIM

.004

1шт.

4

380202R1

SHIM

.007

2шт.

4

380203R1

SHIM

.012

4шт.

4

380204R1

SHIM

.030

1шт.

5

528710R1

RETAINER, differential brg LH, 1466, Serial Range: -14999

1шт.

5

528710R1

RETAINER, differential brg LH, 1468, Serial Range: -8999

1шт.

5

67595C2

RETAINER

differential brg LH, 1466, Start Serial: 15000

1шт.

5

67595C2

RETAINER

differential brg LH, 1466, Start Serial: 9000

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

6

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

BEARING, bull pinion shaft roller cone

4шт.

7

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

BEARING, bull pinion shaft roller cup

4шт.

8

528712R1

GEAR

bull, 73 T

2шт.

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer snap

2шт.

9

528709R2

GEAR WHEEL

SHAFT, bull pinion & brake, 13 T

2шт.

10

67397C1

BAFFLE

LH differential bearing oil, 1466, Start Serial: 1500

1шт.

10

67397C1

BAFFLE

LH differential bearing oil, 1468, Start Serial: 9000

1шт.

11

528711R1

RETAINER, differential brg RH, 1466, Serial Range: -18216

1шт.

11

528711R1

RETAINER, differential brg RH, 1468, Serial Range: -9555

1шт.

11

68683C1

RETAINER

differential brg RH 1466, Start Serial: 18217

1шт.

11

68683C1

RETAINER

differential brg RH, 1468, Start Serial: 9556

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

12

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

BEARING, differential RH roller cup

1шт.

13

622336C91

ROLLER BEARING

ASSY, RH roller cone

1шт.

14

528707R92

GEAR SET

BEVEL GEARS, matched set, order 120265C91, consists of (1) gear 528708R1 (NSS), (1) 529284R2 (NSS), (1) tag 1084054R1 (NSS)

1шт.

15

380190R2

GEAR

differential bevel, 28 T

2шт.

16

361061R3

PINION

differential bevel, 15 T

4шт.

17

393637R2

DIFF. SPIDER

SPIDER, differential

1шт.

18

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

12шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

differential case bolt

12шт.

19

528706R3

CASE

ASSY, differential

1шт.

20

(Not used in this application)

1шт.

120265C91

GEAR-SET

PACKAGE, bevel gear and pinion consists of (1) shaft, 13T (NSS), (1) bevel gear, 51T (NSS), (1) shim 380283R2, (2) shim 380284R2, (2) retainer 529464R1, (1) bearing 528684R91, (1) washer 359081R1, (1) nut 359082R2, (1) instruction (NSS)

1шт.
