Запчасти Case IH 1466 (07-02) - DRIVE TRAIN, CLUTCH HOUSING AND COVERS, GEAR DRIVE TRACTORS (04) - Drive Train

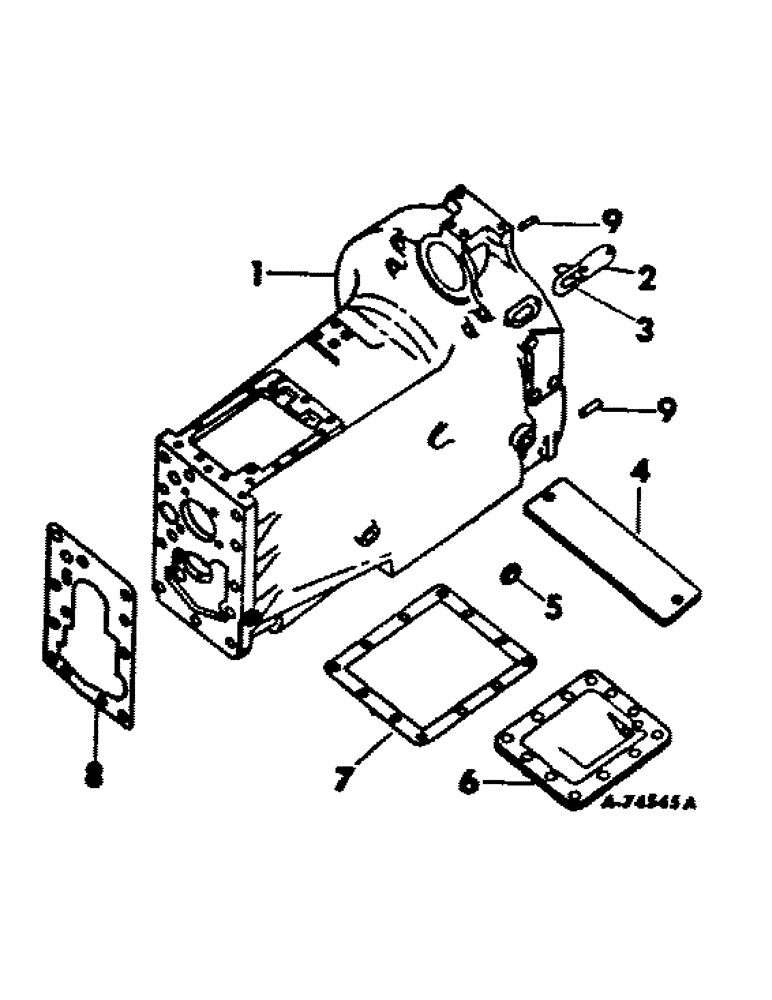

Схема запчастей Case IH 1466 - (07-02) - DRIVE TRAIN, CLUTCH HOUSING AND COVERS, GEAR DRIVE TRACTORS (04) - Drive Train
3
5
4
2
1
8
6
7
9
9

Артикул

Название

Примечание

Количество

1

71831C91

HOUSING

ASSY, clutch, replaces 531264R91

1шт.

Composed of (1) housing (NSS), (2) plug 1017954R1, (4) plug 1017956R1, (1) plug 1017957R1, (1) plug 444654, (1) plug 444788 (1) seat 381611R1, (1) TUBE, suction, (NSS), (1) TUBE, diff. lub (NSS), (1) TUBE, spray lub (NSS), (1) TUBE, power steering pressure, (NSS), (1) TUBE, power steering return (NSS)

1шт.

766 - serial no. 8999 & below, 966 - serial no. 17000 & below, 1066 - serial no. 22999 & below, 1466 - serial no. 14999 & below, 1468 - serial no. 8999 & below, order housing 71831C91, gear, 68512C1, bearing assy, 619386R91, bearing, 619387R1, retainer, 380107R1, shim 67758C1, three shims, 67760C1, seal, 67761C1, cover, 104402C1 and pointer, 120027C1, 766 - serial nos 9000 to 11780, 966 - serial nos 17001 to 20613, 1066 - serial nos 23000 to 30176, 1466 - serial nos 15000 to 18131, 1468 - serial nos 9000 to

1шт.

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 auto sq-soc pipe

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto sq-soc pipe

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap, 766 gasoline tractors

2шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap, 766 diesel, 966, 1066 and 1466 tractors

2шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

25711R1

WASHER

.656 x 1.312 x .150 HDN

8шт.

2

380073R1

COVER, engine timing opening, used only w/pointer, 380072R1

1шт.

2

104402C1

COVER

engine timing opening, used only w/pointer, 120027C1

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

120027C1

POINTER

engine timing, replaces 380072R1

1шт.

4

380068R1

BAR

COVER, clutch compartment

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

5

381611R1

SEAT

- valve

1шт.

6

384077R11

COVER

w/plug, clutch housing bottom

1шт.

103735

HOUSING

PIN, 1/4 x 1/2 chamfered straight

1шт.

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 auto sq-soc pipe

1шт.

NLS

NO LONGER SERVICED

12шт.

7

384078R1

GASKET

clutch housing bottom cover

1шт.

8

380067R3

GASKET

clutch housing

1шт.

9

375362R1

PIN,12.69mm OD x 34.8mm L

rear engine support dowel, 766 gasoline

2шт.

9

375362R1

PIN,12.69mm OD x 34.8mm L

rear engine support dowel, 1468 tractors

1шт.

Выбрано товаров: 28
