(12-05[A]) - POWER, AIR CLEANER, 1066 WITH SERIAL NO. 14581 AND BELOW, 1466 WITH SERIAL NO. 9500 AND BELOW

Запчасти Case IH 1466 (12-05[A]) - POWER, AIR CLEANER, 1066 WITH SERIAL NO. 14581 AND BELOW, 1466 WITH SERIAL NO. 9500 AND BELOW Power

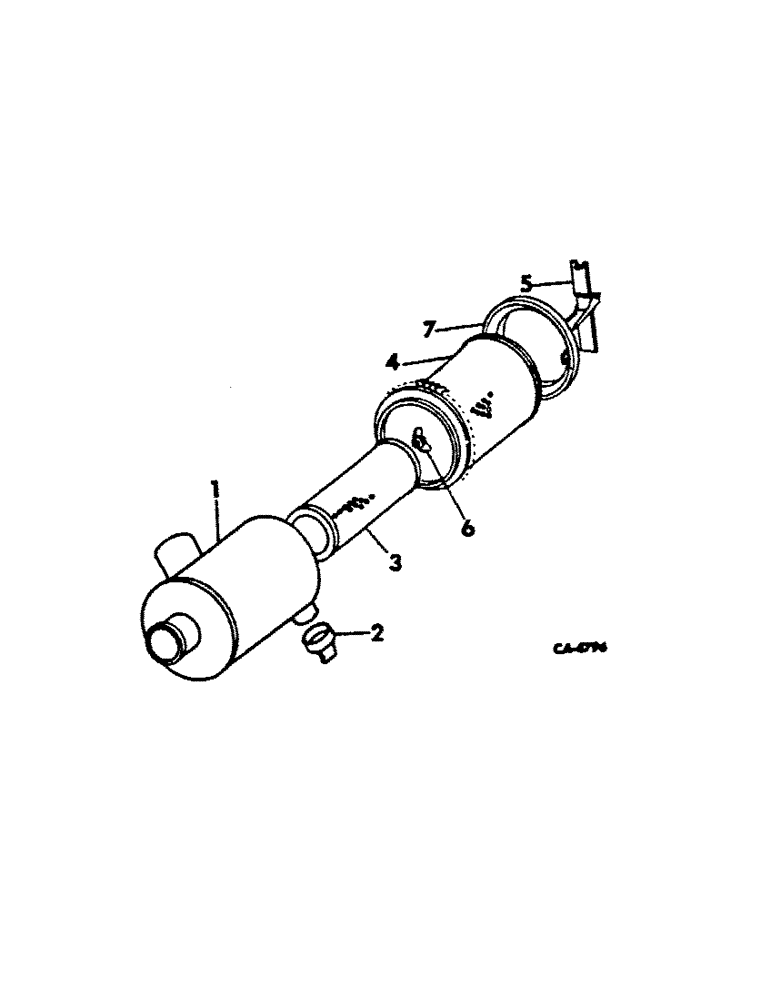

Схема запчастей Case IH 1466 - (12-05[A]) - POWER, AIR CLEANER, 1066 WITH SERIAL NO. 14581 AND BELOW, 1466 WITH SERIAL NO. 9500 AND BELOW Power
2
6
3
1
5
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

534350R91

CLEANER

ASSY, air, Donaldson

1шт.

2

303734R2

VALVE, unloader

1шт.

3

392516R91

ELEMENT

safety

1шт.

4

537336R1

ELEMENT

filter

1шт.

5

392521R92

LATCH

assy

1шт.

6

381342R92

WING NUT

NUT ASSY

1шт.

7

392520R91

COVER

air cleaner

1шт.
