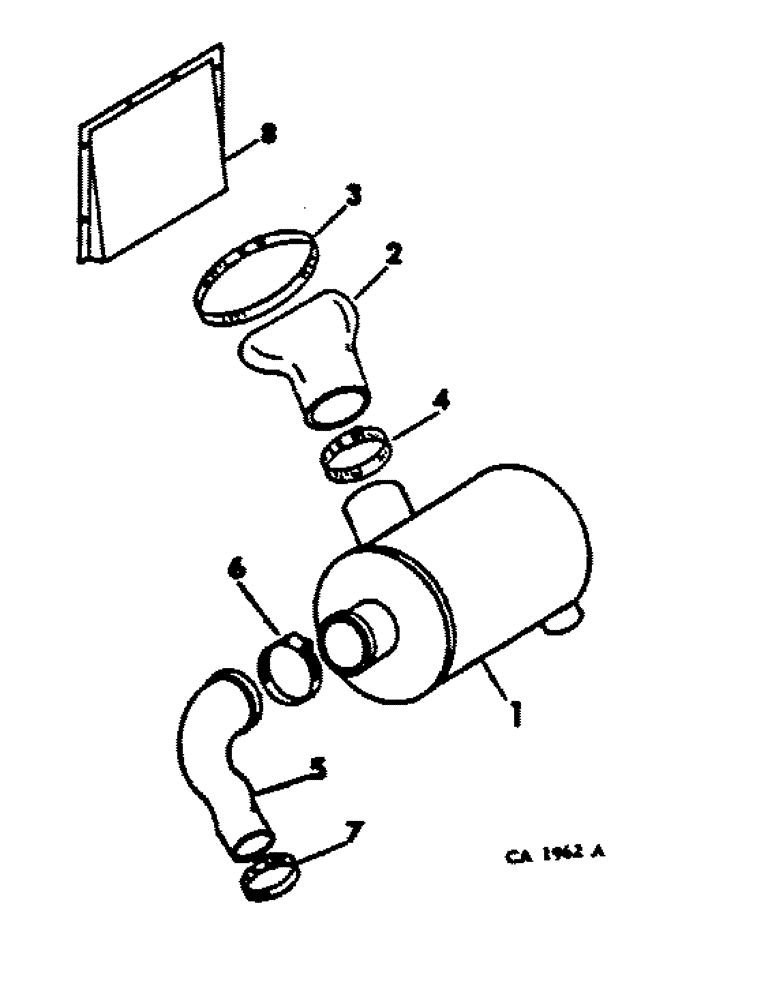

Запчасти Case IH 1466 (12-04) - POWER, AIR CLEANER AND CONNECTIONS, 1066 AND 1466 TRACTORS Power

1

CLEANER ASSY, air, refer to air cleaner assy, for list of component parts

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179902

BOLT,Hex, 9/16" - 12 x 1", Gr 5

SCREW, 9/16-12 x 1 hex-hd cap

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 16 ga) 3/8"

1шт.

NLS

NO LONGER SERVICED

19/32 x 1-3/16 x 13 ga

1шт.

2

532455R1

INTAKE AIR HOSE

HOSE, air cleaner intake

1шт.

3

427312R91

HOSE CLAMP,#100, 5.88/6.75 Type F Worm

CLAMP, intake hose front

1шт.

4

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP, intake hose rear

1шт.

5

532457R1

INTAKE AIR HOSE

HOSE, air cleaner outlet

1шт.

Ref #5 - use hose 67684C1 with air cleaner 67685C93

1шт.

6

397258R1

HOSE CLAMP,#64, 3.56/4.50 Type F Worm, W/liner

CLAMP, air cleaner outlet hose front

1шт.

7

400446R1

HOSE CLAMP,#56, 3.06/4.00 Type F Worm, W/liner

CLAMP, air cleaner outlet hose rear

1шт.

8

532458R2

BAFFLE, pre-cleaner

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.
