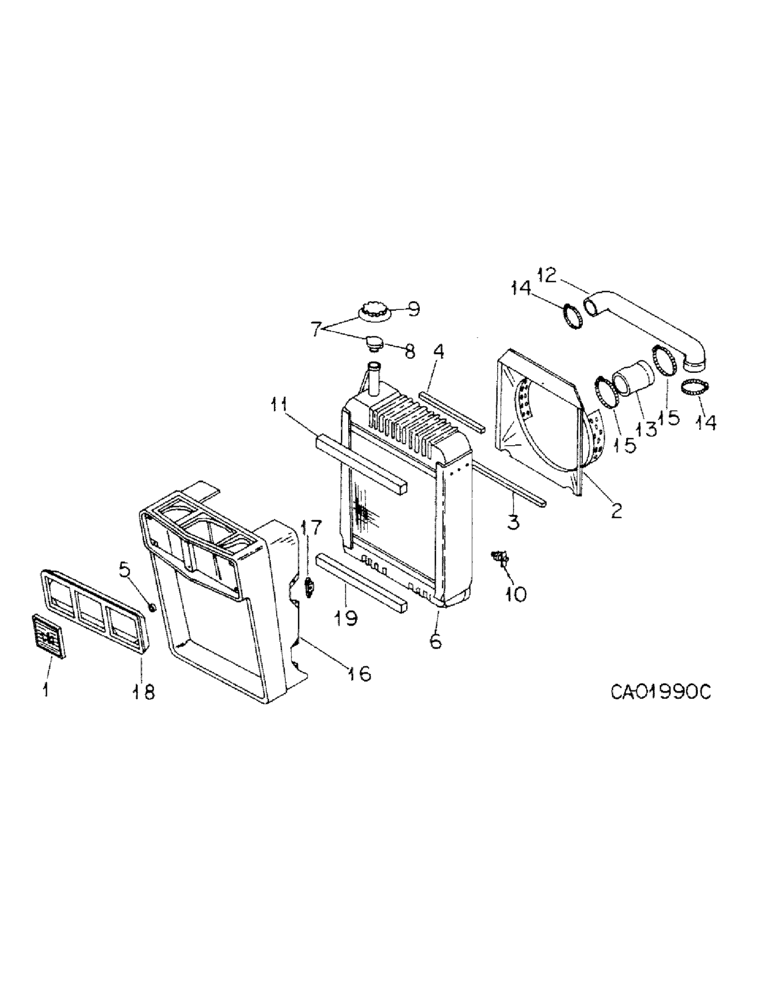

Запчасти Case IH 1466 (06-11) - COOLING, RADIATOR AND CONNECTIONS, 1466 TRACTORS Cooling

1

531218R2

SCREEN

head light support

1шт.

2

531230R1

SHROUD

ASSY, fan

1шт.

.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

3

531216R1

STRIP

SEAL, fan shroud, lower

1шт.

4

385631R1

SEAL

fan shroud, upper

1шт.

5

531225R1

SQ HOLE WASHER

head light support

6шт.

6

121725C1

RADIATOR

ASSY, less filler cap, replaces 533586R2

1шт.

REF# 6 RADIATOR 121725C1- PER MARV HOOD, THE OVERFLOW HOSE LOOKS TO BE COMMON 5/16" I.D. HOSE. P/N FOR BULK 50' ROLL IS 427698C1 (WHICH IS NO LONGER SUPPLIED, CHECK DPNI).JBEDFORD 2/17/97. ALSO SEE PARTS COUNTER MERCHANDISER UNDER COOLANT SYSTEMS WHICH SHOWS P/N 87086C1 FOR THE OVERFLOW TUBE.

1шт.

.

68429C1

CLIP

radiator overflow hose

1шт.

.

107518R1

CLIP, radiator overflow hose, tractors w/tricycle front axle

1шт.

.

306132C1

CABLE TIE,14.5" L

STRAP, hose lock

1шт.

7

532672R91

CAP

w/cover, radiator

1шт.

8

532673R1

CAP

ASSY

1шт.

9

532674R1

PLUG

COVER

1шт.

10

614201R1

VALVE

COCK, radiator drain

1шт.

11

528936R1

GASKET

SEAL, radiator front

2шт.

11

69842C1

SEAL, radiator side

1шт.

12

532680R1

RADIATOR HOSE,57.20 mm ID x 302.30 mm, SAE 20R4 CLASS 5C, SAE 20 R4 CLASS R, GRADE 1A

Inlet 57.20 mm ID x 302.30 mm, SAE 20R4 CLASS 5C, SAE 20 R4 CLASS R, GRADE 1A

1шт.

12

532680R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

13

532681R1

RADIATOR HOSE,66.50 mm ID x 106.68 mm, SAE 20R4, CLASS 5C, SAE 20R4, CLASS R, GRADE 1A

Outlet 66.50 mm ID x 106.68 mm, SAE 20R4, CLASS 5C, SAE 20R4, CLASS R, GRADE 1A

1шт.

13

532681R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

14

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, hose

2шт.

15

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP, hose

2шт.

16

71782C91

SUPPORT ASSY.

SUPPORT, radiator & grille

1шт.

.

19555R1

PIN,5/16" x 1", Coiled

2шт.

.

271565

SHIELD,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

6шт.

.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

.

104520C1

PLUG

radiator support

1шт.

17

378710R91

PLATE ASSY.

BRACKET, radiator mounting plate

4шт.

.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

18

531217R1

SUPPORT ASSY.

SUPPORT, head light

1шт.

.

156265

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

1/4-20 x 1 cr-rec-f-hd mach

2шт.

19

394787R1

GASKET

GASKET, radiator baffle, tractors w/tricycle front upper bolster

1шт.

.

STRIP, radiator support panel foam, use as required from a bulk roll marked 73213C1

1шт.

.

306132C1

CABLE TIE,14.5" L

STRAP, hose lock

1шт.
