Запчасти Case IH 1466 (06-07) - COOLING, RADIATOR SCREEN AND GRILLE Cooling

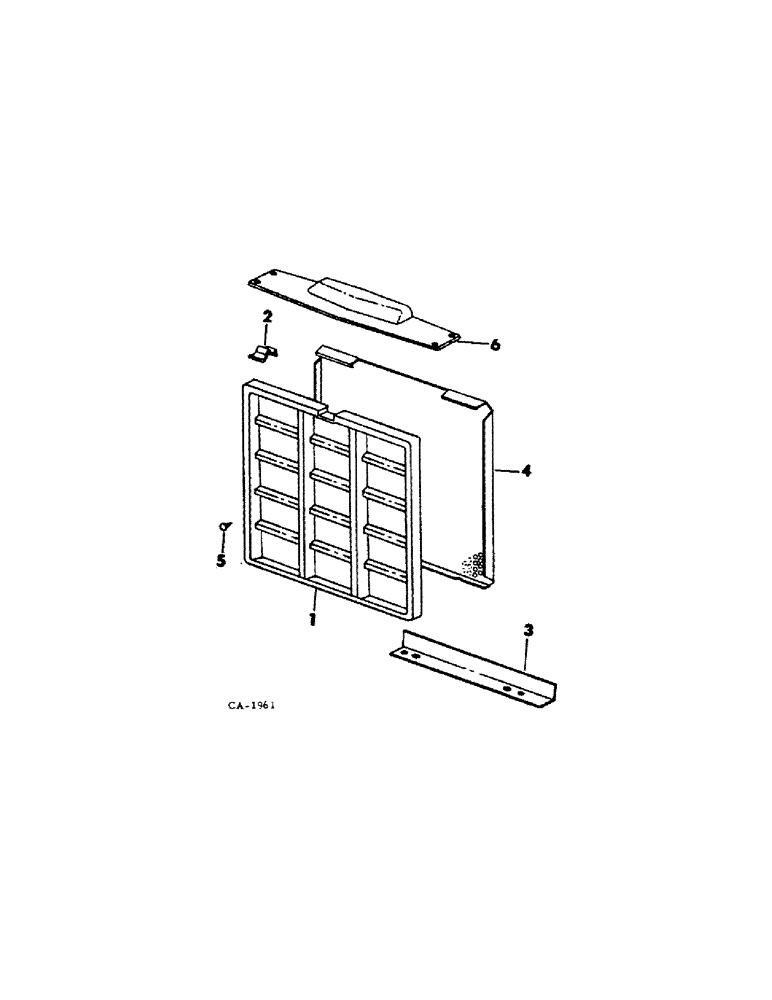

Схема запчастей Case IH 1466 - (06-07) - COOLING, RADIATOR SCREEN AND GRILLE Cooling
5
4
1
3
6
2

Артикул

Название

Примечание

Количество

1

531231R1

GRILLE ASSY

GRILLE, radiator

1шт.

2

531223R1

SPRING CLIP

LATCH, radiator grille

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 slt-pan-hd mach, die cast grille

2шт.

27581R1

SCREW, 1/4-14 x 3/4 pan hd cr recess tapping, type BF, plastic grille

1шт.

27581R1 is no longer furnished - refer to description for size specifications.

1шт.

27581R1

SCREW, 1/4-14 x 3/4 pan hd cr recess tapping, type BF, plastic grille

1шт.

3

531224R1

BAFFLE, radiator air

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

4

531233R2

GRILLE ASSY

SCREEN, radiator grille

1шт.

5

368175R1

BUMPER

grille screen

4шт.

6

531221R2

COVER ASSY

COVER, radiator & grille support

1шт.

369917R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 5/8"

1/4-20 x 5/8 hex. washer hd cap

4шт.

Выбрано товаров: 12
