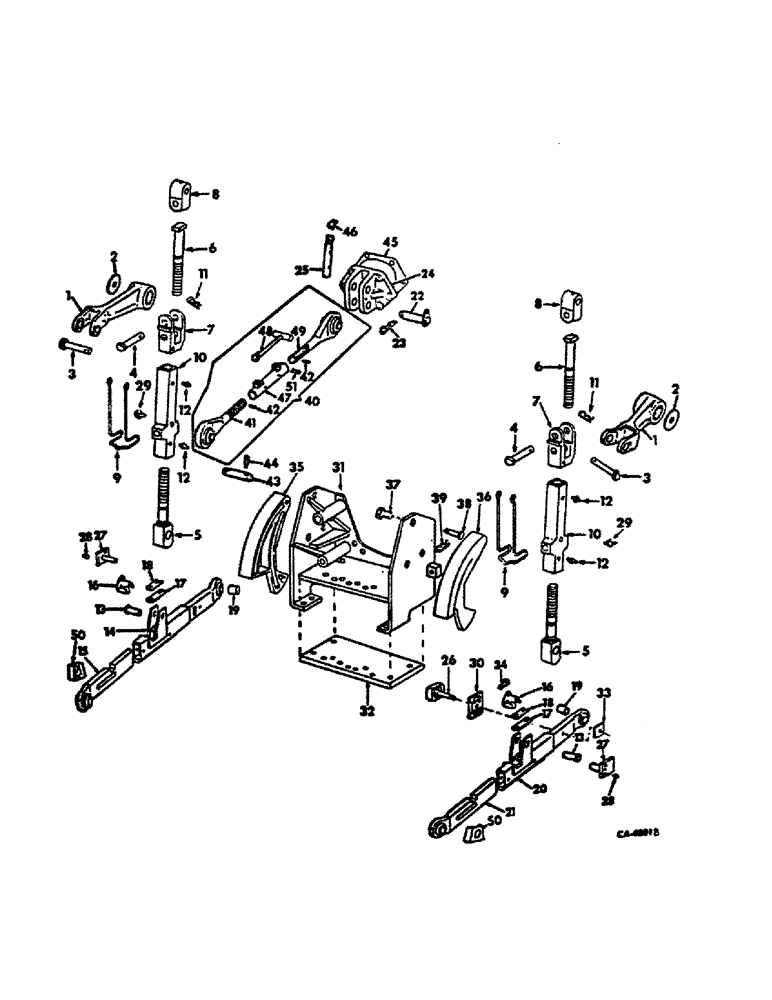

Запчасти Case IH 1466 (09-18) - FRAME, THREE POINT HITCH TRACTORS WITH DRAFT CONTROL AND DRAFT SENSING AND CAM SWAY LIMITING SYSTEM (12) - FRAME

1

108589C1

ARM

rockshaft

2шт.

2

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retainer

2шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-3/4 hex-hd cap

2шт.

3

108590R1

PIN

headed

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

4

108582C1

PIN

3/4 x 3-3/4 headed

2шт.

27357R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3-3/4 headed

2шт.

5

108583C1

ROD

lower leveling

2шт.

6

108584C1

ROD

upper leveling

2шт.

7

108585C1

YOKE

lift link

2шт.

8

108586C1

TRUNNION

SWIVEL, lift link

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive-type str lub

2шт.

9

123464C1

CLAMP

BAIL, turnbuckle lock, replaces 108744C1 by also ordering screw 189304, two washer 120394 and nut 9411655

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 znd hex-hd cap

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051 znd

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock

1шт.

10

108588C1

TURNBUCKLE

lift link

2шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive-type str lub

2шт.

15

1-34-661-038

SUPPORT

"De Luxe" CAB with comfort instructional seat, VAR.330615

1шт.

11

480523R1

HAIR PIN COTTER

quick attachable

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

12

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive-type str lub, leveling screw housing

2шт.

13

392915R1

AXLE PIN

PIN, leveling screw housing

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

14

70447C91

LINK

W/BUSHING, front section lower LH, 1466 & 1468 tractors

1шт.

14

70455C91

LINK

W/BUSHING, front section lower LH, 1066 tractor

1шт.

15

398395R1

LINK

ASSY, rear section LH

1шт.

16

398399R1

LATCH

lower link

2шт.

17

382192R1

SPRING

lower link latch

2шт.

18

382193R1

SPRING

stiffener

2шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

SCREW, 5/16-24 x 1/2 hex-hd cap

2шт.

20126R1

PIN,1/2" x 2", Coiled

2шт.

19

392180R1

BUSHING

front lower link ball

2шт.

557273R1

WASHER

1-1/32 x 2 x 11 ga

2шт.

20

70448C91

LINK

W/BUSHING, front section lower RH, 1466 & 1468 tractors

1шт.

20

70456C91

LINK

W/BUSHING, front section lower RH, 1066 tractor

1шт.

21

398396R1

LINK

ASSY, rear section lower RH

1шт.

22

70804C1

AXLE PIN

PIN ASSY, upper link bracket

1шт.

23

591107R1

COTTER PIN

quick attachable cot

1шт.

24

392210R3

ASSEMBLY

BRACKET ASSY, upper link

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap

5шт.

614636R1

SCREW,Hex, 5/8"-11 x 1 7/8", G8, Full Thd

5/8-11 x 1-7/8 hex-hd cap

1шт.

25

393002R11

TUBE

ASSY, upper link storage

1шт.

26

70475C2

BUMPER

ASSY, cam

2шт.

22244R1

LOCK NUT

3/4-10 nylon insert cad type NE

2шт.

27

70461C1

PIN

lower link

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight, Lower link pin 1/4"-28 NPT x .54" lg

2шт.

29

392181R91

PIN

ASSY, lower link drawbar

2шт.

30

70478C1

SPACER

cat. III

1шт.

31

123120C1

SUPPORT

BRACKET ASSY, cam limiter, replaces 70464C1 by furnishing 1 support 123120C1, 1 channel 123121C1 and two screws 271734

1шт.

67872C1

WASHER

.656 x 1.25 x .25

8шт.

20548R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8-11 x 1-3/4 hex-hd cap type 8

4шт.

27352R1

SCREW,Hex, 5/8"-11 x 7 1/2", G8

5/8-11 x 7-1/2 hex-hd cap type 8

4шт.

32

70474C1

BAR, drawbar support

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

4шт.

32

123121C1

CHANNEL

drawbar wear, use w/123120C1 bracket only

1шт.

271734

ROTOR,Hex, 5/8" - 11 x 4 3/4", Gr 5

5/8 x 4-3/4 type 5

2шт.

33

70480C1

SHIM

.033 thick

2шт.

33

70479C1

SHIM

.067 thick

12шт.

34

383261R2

ADJUSTMENT SCREW

draft adjusting

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

35

70481C1

NO LONGER SERVICED

CAM, sway limiter LH

1шт.

36

70482C1

SPARE PART

CAM, sway limiter RH

1шт.

37

70483C1

BOLT, metal coated lock, cam mounting pivot

2шт.

37

26323R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

3/4 x 1-1/2 PHC pre-torq type 8

2шт.

38

21377R1

HEADED PIN,3/4" x 2"

PIN, 3/4 x 2 headed znd

2шт.

39

545254R1

PIN

quick attaching cot

2шт.

40

404632R91

TURNBUCKLE

W/SCREWS, upper link

1шт.

41

398401R1

SCREW

ASSY, LH thread

1шт.

42

19689R1

PIN,1/4" x 1 1/4", Coiled

2шт.

43

392211R1

AXLE PIN

PIN, upper link implement

1шт.

44

392181R91

PIN

ASSY, upper hitch

2шт.

45

383330R1

GASKET

draft control adj opening cover

1шт.

46

393004R1

SUPPORT

CLIP, upper link storage bracket

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

47

404633R1

BUCKLE

TURNBUCKLE, upper link

1шт.

48

392204R1

HANDLE

upper link turnbuckle

1шт.

SB191

HEADED PIN,3/8" x 1 3/4"

PIN, 3/8 x 1-3/4 standard head

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

49

398404R1

SCREW

ASSY, RH thread

1шт.

50

404788R1

SHIELD

linch pin

2шт.

51

517843R1

COTTER PIN

PIN, quick attachable cot

1шт.
