Запчасти Case IH 1466 (09-07[B]) - FRAME, ROCKSHAFT ARMS 1066, 1466 AND 1468 TRACTORS WITH DRAFT CONTROL AND DRAFT SENSING (12) - FRAME

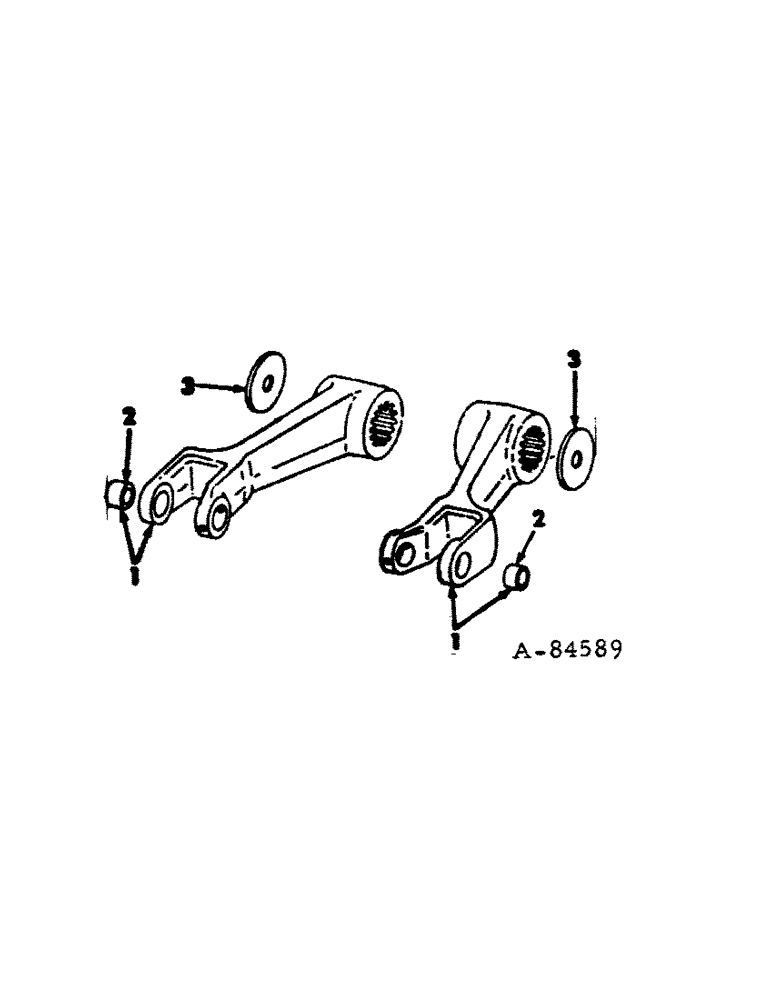

Схема запчастей Case IH 1466 - (09-07[B]) - FRAME, ROCKSHAFT ARMS 1066, 1466 AND 1468 TRACTORS WITH DRAFT CONTROL AND DRAFT SENSING (12) - FRAME
3
1
3
2
2
1

Артикул

Название

Примечание

Количество

1

67701C91

ARM

ASSY, rockshaft, replaces 392147R11 by also ordering bushing, 67702C1

2шт.

2

392992R2

BUSHING,22.15mm ID x 34.87mm OD x 22.86mm L

rockshaft arm

2шт.

3

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retainer

2шт.

Выбрано товаров: 3
