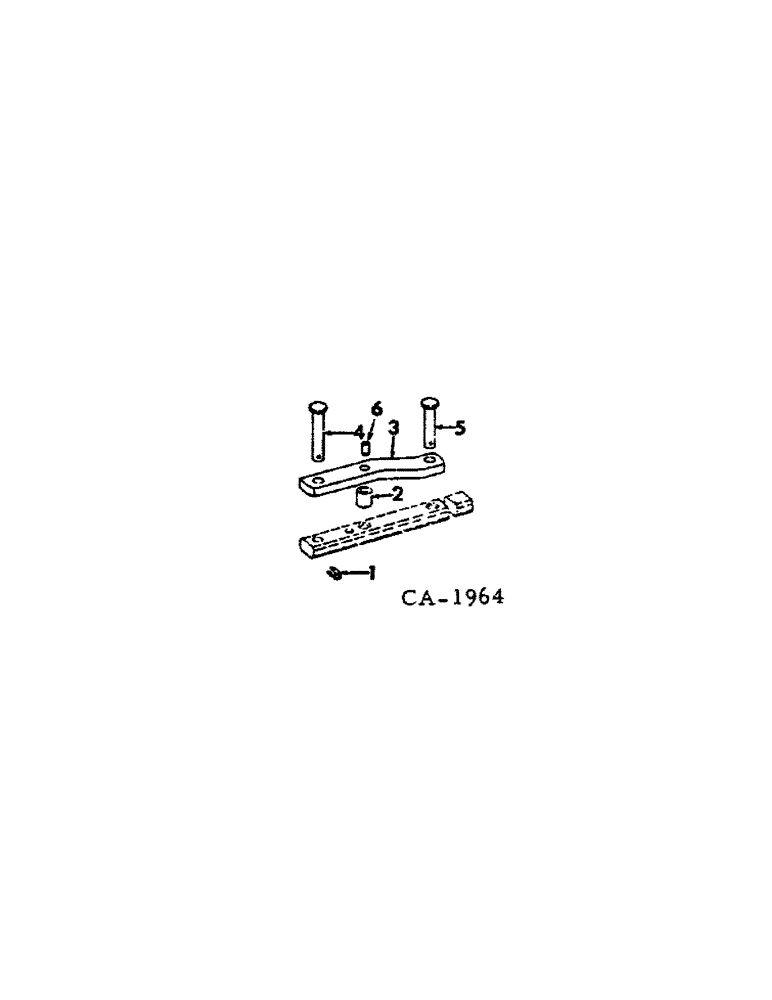

Запчасти Case IH 1466 (09-06[A]) - FRAME, HAMMER STRAP (12) - FRAME

535812R91

PARTS ACCESSORY, hammer strap

1шт.

1

520175R11

AXLE PIN

PIN ASSY, quick attachable cot

1шт.

2

483858R1

SPACER

swinging drawbar strap

1шт.

3

535800R1

STRAP

swinging drawbar, 1066, for use with drawbar 535799R1

1шт.

3

535801R1

STRAP

swinging drawbar, 1466 & 1468, for use with drawbar 397066R2

1шт.

2727209

SCREW, 5/8-11 x 5-1/2 hex-hd cap

1шт.

102639

NUT,5/8"-11, G5

1шт.

575810R1

WASHER

21/32 x 1-1/2 x .120

2шт.

4

70498C1

PIN

swinging drawbar clevis

1шт.

5

389523R1

PIN

drawbar

1шт.

520175R1

CLIP

PIN, quick attachable cot

1шт.

6

(Not used in this application)

1шт.
