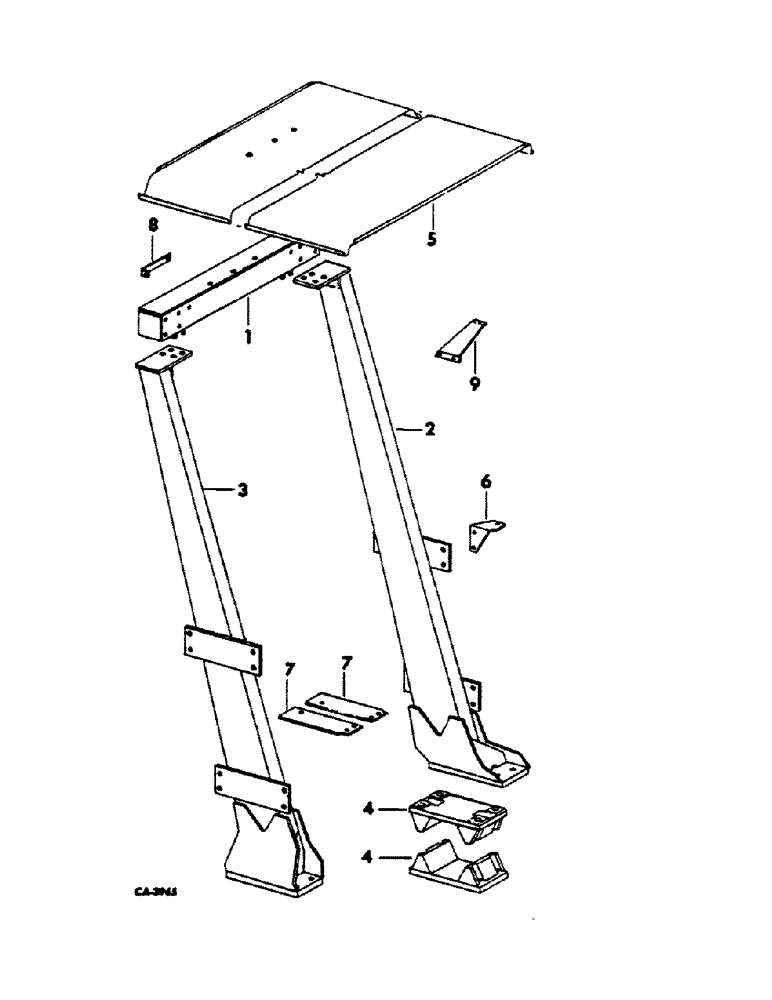

Запчасти Case IH 1466 (13-59) - SUPERSTRUCTURE, PROTECTIVE FRAME, TWO POST ROPS, MODEL (05) - SUPERSTRUCTURE

1

BAR ASSY, frame cross, service only as a part of the protective frame

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

2

FRAME ASSY, safety LH, service only as part of the protective frame

1шт.

3

FRAME ASSY, safety RH, service only as part of the protective frame

1шт.

4

CLAMP, hex. axle, service only as part of the protective frame

1шт.

27321R1

SCREW,Hex, 1"-8 x 12", G8

1 x 12 znd hex-hd type 8

8шт.

21929R1

NUT,1"-8, G8

1-8 znd hex. type 8

8шт.

5

402105R1

TOP ASSY W/COATING

1шт.

189306

COVER,Hex, 3/8" - 16 x 5", Gr 5

SCREW, 3/8-16 x 5 hex-hd cap

3шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

413-780

BOLT,Hex, 7/16" - 14 x 5", Gr 5

SCREW, 7/16-14 x 5 znd hex-hd cap , Course threads

8шт.

23104R1

SCREW, 7/16-14 x 5-1/4 znd hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

10шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

10шт.

496-21047

WASHER

15/32 x 59/64 x .051 znd

20шт.

6

402111R1

SUPPORT, flasher light bracket LH, for tractors w/o deluxe fenders

1шт.

6

536529R1

SUPPORT, flasher light bracket RH, for tractors w/o deluxe fenders

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

7

402112R1

PLATE, platform filler

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

8

406115R1

BRACKET, stabilizer rear

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hx hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

2шт.

9

406117R1

BRACKET, stabilizer RH front

1шт.

9

406116R1

BRACKET, stabilizer LH front

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

6шт.

68690C1

SAFETY BELT 2.00" W 2.00" W

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

271684C2

BOLT, eye

2шт.

402132R2

BAR, seat belt anchor

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

456939

NUT,7/16"-20, G8

7/16-20 type 4 hex.

2шт.

404228R1

SAFETY BELT, Seat retainer, 25.7 in.

1шт.

2753699R1

PRODUCT GRAPHIC, seat belt

1шт.

68554C1

PRODUCT GRAPHIC

ROPS model

1шт.

142862

SCREW,Type U Metallic, Rnd Hd, #4 x 1/4"

no. 4 x 1/4 rd-hd blunt metal drive

2шт.
