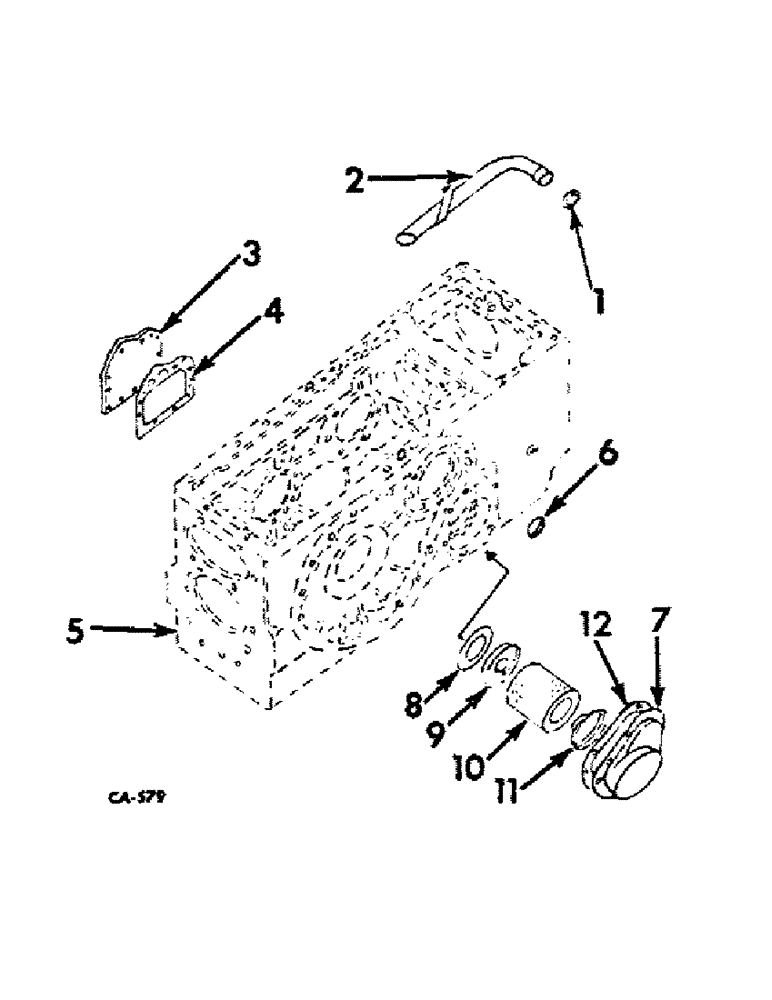

Запчасти Case IH 1456 (10-05) - HYDRAULICS, HYDRAULIC FILTER, PUMP OPENING COVERS AND RELATED PARTS (07) - HYDRAULICS

1

360610R1

O-RING,1.609" ID x 0.139" Width

1-5/8 x 1-7/8 x 1/8, hydraulic filter suction tube

1шт.

2

382240R11

TUBE

ASSY, hydraulic filter suction

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd nylok

1шт.

3

382243R1

COVER ASSY

COVER, pump opening

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

12шт.

4

382244R1

GASKET

pump opening cover

1шт.

5

FRAME ASSY, rear, refer to rear frame, cover and connections listing, Section 7

1шт.

6

382242R1

RETAINER

hydraulic filter suction tube

1шт.

7

382256R1

COVER ASSY

COVER, oil filter

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

8

382247R1

O-RING,5.237" ID x 0.103" Width

SEAL, hyd filter cartridge retainer

1шт.

9

382246R1

RETAINER, hydraulic filter cartridge

1шт.

10

386122R91

SERVICE KIT

PACKAGE, hydraulic filter service, includes 382257R1 gasket and 382247R1 seal

1шт.

11

386121R92

VALVE

ASSY, filter relief

1шт.

12

382257R1

GASKET

oil filter cover

1шт.
