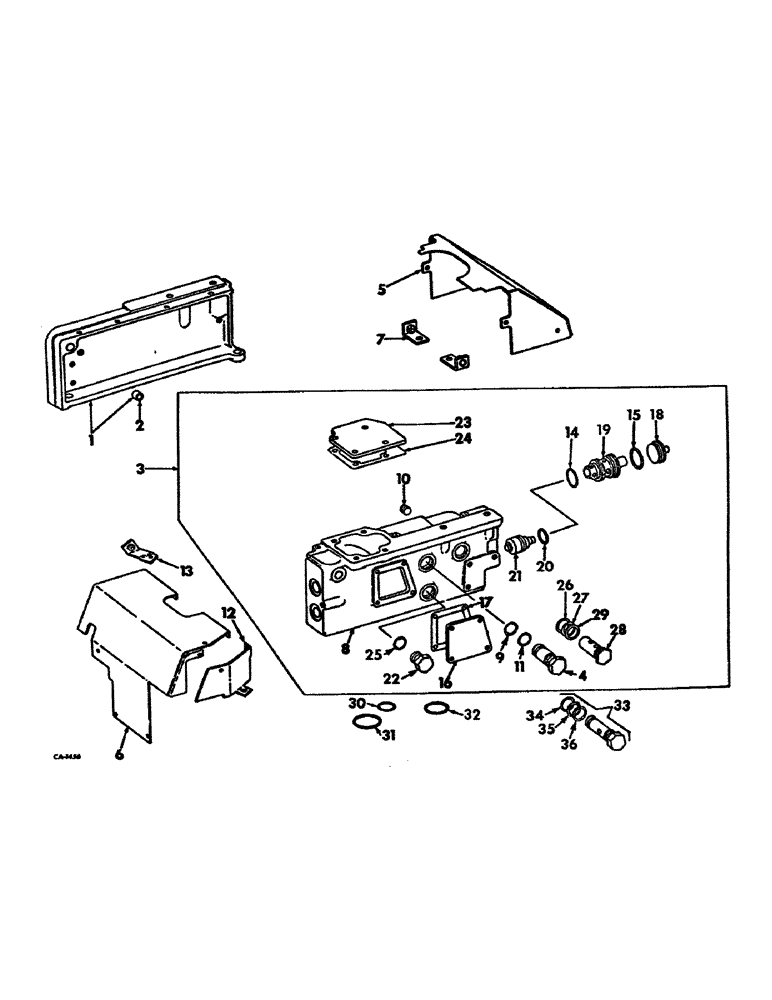

Запчасти Case IH 1456 (13-07) - SUPERSTRUCTURE, SEAT AND HYDRAULIC COMPONENT SUPPORT (05) - SUPERSTRUCTURE

1

382912R3

RING

SUPPORT, LH seat, for service replacement on Farmall tractors, also order bushing 405513R1, Serial Range: -13628

1шт.

1

382912R3

RING

SUPPORT, LH seat, for service replacement on International tractors , also order bushing 405513R1, Serial Range: -10210

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

382913R1

BUSHING, seat support split, 7/16 ID x 1/2 OD x 1/2 in. long, Farmall tractor, Serial Range: -13628

1шт.

2

382913R1

BUSHING, seat support split, 7/16 ID x 1/2 OD x 1/2 in. long, International tractor, Serial Range: -10210

1шт.

2

405513R1

BUSHING, seat support split, 7/16 ID x 1/2 OD x 3/4 in. long, Farmall tractor, Serial Range: -13628

1шт.

2

405513R1

BUSHING, seat support split, 7/16 ID x 1/2 OD x 3/4 in. long, International tractor, Serial Range: -10210

1шт.

3

399605R93

SUPPORT

ASSY, seat and hydraulic components RH, tractors with draft control, composed of ref nos 4, 8, 9, 11, 14 through 18, 20, 21, 22, 25 through 29 & attaching hardware

1шт.

3

399606R92

SUPPORT ASSY, seat and hydraulic components RH, tractors without draft control, composed of ref nos 8, 15 through 18, 22 through 29 and attaching hardware

1шт.

279991R1

SCREW

W/PELLET INSERT, 1/2-13 x 1-1/2 hex-hd cap

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

530444R1

PLUG, sequence lift, tractors w/out simultaneous raise

1шт.

5

398013R3

SUPPORT

COVER ASSY, seat support front

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 x 5/8 C-Z hex. washer hd cap

6шт.

6

398015R2

COVER ASSY, seat support rear

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 C-Z hex-hd cap

2шт.

7

383176R11

CLIP ASSY, seat support front cover mounting

2шт.

179813

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

2шт.

8

399609R41

SUPPORT ASSY.

SUPPORT W/TWO PLUGS, 444660, RH seat, part of support 399605R93

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 sq-soc-hd pipe

1шт.

8

399608R41

SUPPORT W/PLUG 444660, RH seat, part of support 399606R92

1шт.

1017989R1

PLUG

7/8-14 self aligning, tractors w/single auxiliary valve

1шт.

9

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16

1шт.

10

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-soc pipe

1шт.

11

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

12

398104R1

PLATE, RH seat support cover, tractors without auxiliary valves or draft control

1шт.

127976

SHAFT

SCREW, 12-11 x 1/2 C-Z slt pan hd tap.

2шт.

13

398102R1

BRACKET, rear cover mounting

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

14

391923R1

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

1-5/16 x 1-1/2 x 3/32, carrier inner, used on tractors with draft control

1шт.

15

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-15/32 x 1-11/16 x 7/64, carrier outer

1шт.

16

382790R1

PLATE, access hole

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

17

382791R1

GASKET

access hole plate

1шт.

18

391922R1

PLUG

regulator port, tractors with auxiliary valves

1шт.

19

391920R91

SEAT

ASSY, unloading valve, used on tractors with draft control

1шт.

20

406181R1

O-RING,21.82mm ID x 3.53mm Width

unloading valve piston, -S-treated, used on tractors with draft control

1шт.

21

376762R11

PISTON ASSY.

PISTON ASSY, unloading valve, used on tractors with draft control

1шт.

22

9410360

PLUG

7/8-14 C-Z str-thd O-ring boss, check valve port

1шт.

23

382918R1

COVER, hyd quadrant support opening, not used on tractors with draft control

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

24

382793R1

GASKET

quadrant support opening cover, not used on tractors with draft control

1шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, check valve port plug

1шт.

26

362976R1

O-RING, 15/16 x 1-1/8 x 3/32, relief valve inner

1шт.

27

378985R2

BACK-UP RING

relief valve inner O-ring backup

1шт.

28

388208R93

VALVE

ASSY, relief, for components see list of parts under details of pilot relief valve, Section 10

1шт.

29

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, relief valve inner

1шт.

30

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, hyd component housing small

1шт.

31

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32, hyd component housing large

1шт.

32

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1-1/8 x 1-5/16 x 3/32, hydraulic component housing

1шт.

33

530451R91

SCREW

PARTS ACCESSORY, simultaneous raise, consists of (1) O-ring 364879R1 (1) O-ring 383024R1 (1) O-ring 392385R1 (1) plug 530452R1 (NSS)

1шт.

34

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

1шт.

35

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16

1шт.

36

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.
