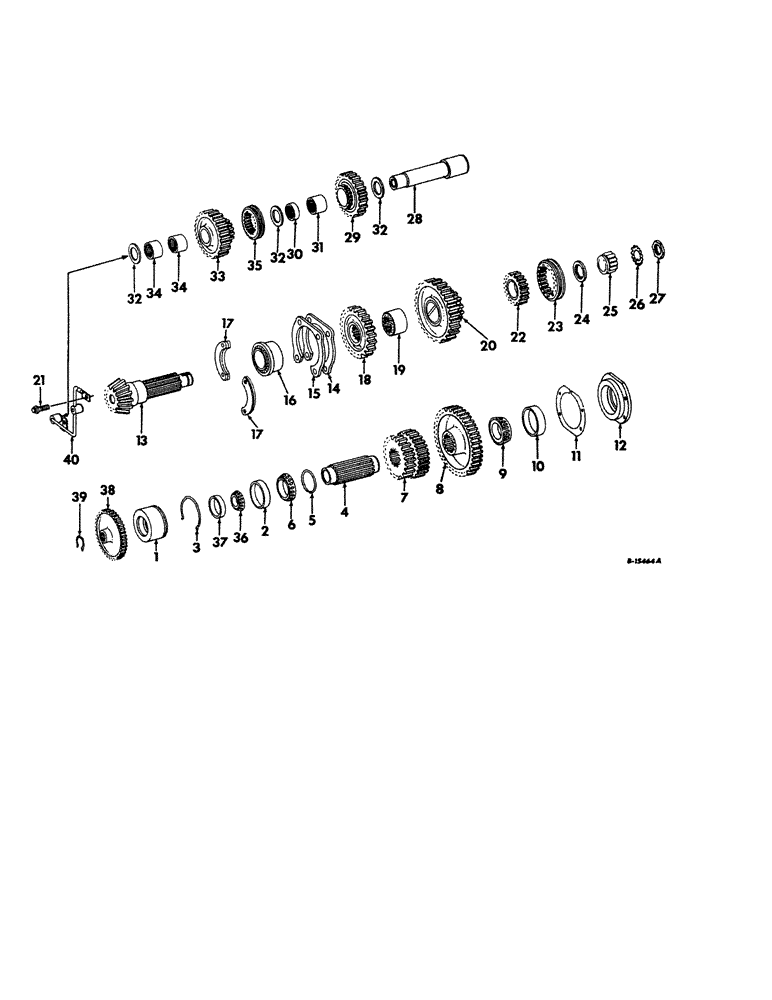

Запчасти Case IH 1456 (07-04) - DRIVE TRAIN, RANGE TRANSMISSION, IN REAR FRAME (04) - Drive Train

1

528695R1

CAGE

ASSY, countershaft rear brg

1шт.

2

ST2164

BEARING ASSY,90mm OD x 19.99mm W

countershaft cup

1шт.

3

384340R1

RING, SNAP

RING, brg rear cage retaining

1шт.

4

531799R1

SHAFT

COUNTERSHAFT

1шт.

5

583564R1

SNAP RING,#250, 2.356, Ext

RING, countershaft snap

1шт.

6

ST2010

BEARING ASSY,52.39mm ID x 25.4mm W

cone

1шт.

7

528681R1

GEAR

lo drive, 28T-33T

1шт.

8

406028R1

GEAR

constant mesh, 50T

1шт.

9

625742C91

BEARING

ASSY, cone

1шт.

10

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, countershaft cup

1шт.

11

380280R1

SHIM

countershaft brg

2шт.

12

528682R1

CAGE

countershaft front brg

1шт.

NLS

NO LONGER SERVICED

4шт.

13

SHAFT, transmission main and drive, order matched set of bevel gears 528707R91

1шт.

14

380283R2

SHIM

main shaft brg

1шт.

15

380284R2

SHIM

main shaft brg

2шт.

16

528684R91

BEARING ASSY,63.5mm ID x 133.4mm OD x 70.48mm W

ASSY, mainshaft rear

1шт.

17

529464R1

RETAINER

ASSY, mainshaft rear brg

2шт.

18

380288R1

GEAR

reverse driven, 35T

1шт.

19

380289R1

CARRIER

hi-lo driven gear

1шт.

20

528683R11

GEAR

ASSY, hi-low driven, 45T

1шт.

21

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

main shaft brg cage

2шт.

396323R1

WASHER

brg retainer bolt

2шт.

22

533927R1

CARRIER

shift collar

1шт.

23

393521R1

COLLAR

hi-lo shift

1шт.

24

380294R1

SPACER

main shaft

1шт.

25

530137R91

BEARING ASSY,40mm ID x 77.62mm OD x 32.38mm W

mainshaft front

1шт.

26

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

main shaft lock

1шт.

27

359082R2

NUT

main shaft

1шт.

28

380296R11

SHAFT

ASSY, reverse idler

1шт.

29

393523R1

GEAR

reverse idler, 30T

1шт.

30

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING, idler gear rear

1шт.

31

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, idler gear front

1шт.

32

380300R1

THRUST WASHER,41.66mm ID x 60.96mm OD x 2.54mm Thk

idler gear thrust

3шт.

33

393525R1

GEAR

reverse drive, 34T

1шт.

34

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, drive gear

2шт.

35

393524R1

COLLAR

forward reverse shift

1шт.

36

ST2135

BEARING ASSY,33.34mm ID x 19.58mm W

IPTO driven shaft cone

1шт.

37

ST991

BEARING CUP

BEARING, IPTO driven shaft cup

1шт.

38

380319R1

PINION

GEAR, pump drive, 61T

1шт.

39

384341R1

RING, SNAP

RING, pump drive gear retaining

1шт.

40

529561R2

TUBE

ASSY, pressure lub

1шт.

528707R91

GEAR SET

BEVEL GEARS, matched set, consists of (1) gear 528708R1 (NSS) (1) shaft 529284R1 (NSS)

1шт.
