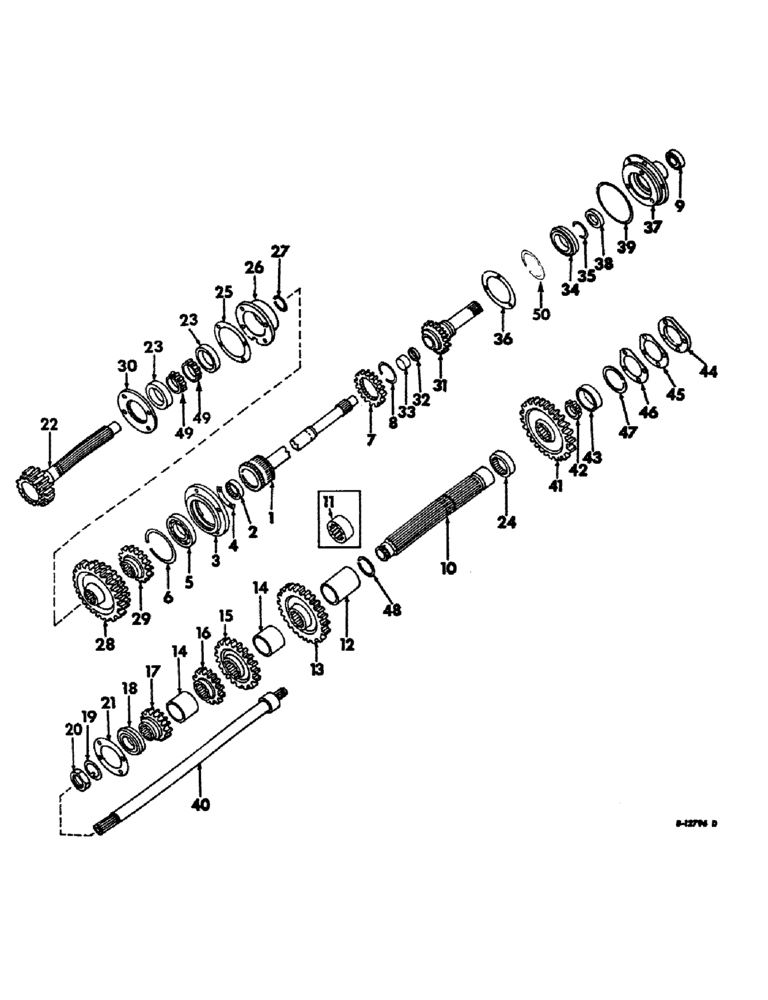

Запчасти Case IH 1456 (07-02) - DRIVE TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING (04) - Drive Train

1

380076R3

SHAFT

transmission drive, 26T

1шт.

2

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

main shaft front

1шт.

3

380080R1

CAGE

constant mesh drive gear brg

1шт.

4

380081R1

PLATE

constant mesh drive gear brg cage lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

5

ST697

BALL BEARING,75 mm ID x 130 mm OD x 22 mm

BEARING, constant mesh drive gear

1шт.

6

392683R1

RING

constant mesh drive brg cage

1шт.

7

528670R1

GEAR WHEEL

GEAR, constant mesh drive, 26T

1шт.

8

381330R1

RING

constant mesh drive gear ext snap

1шт.

9

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

clutch pilot

1шт.

9

524598R91GV

BEARING

Value, Ball Bearing

1шт.

10

380082R2

SHAFT

COUNTERSHAFT

1шт.

11

(Not used this application)

1шт.

12

384091R1

BUSHING

SPACER, constant mesh gear, tractors w/torque amplifier

1шт.

13

528673R1

GEAR

constant mesh, 47T

1шт.

14

380126R1

BUSHING

SPACER, countershaft gears

2шт.

15

528671R1

GEAR

3rd speed driving, 42T

1шт.

16

528672R1

GEAR

2nd speed driving, 32T

1шт.

17

406473R1

GEAR

1st speed driving, 27T

1шт.

18

389379R91

BEARING

countershaft rear

1шт.

19

380091R2

THRUST WASHER,59.51mm ID x 82.55mm OD x 1.52mm Thk

countershaft brg lock nut

1шт.

20

380092R1

NUT

countershaft brg lock

1шт.

21

380093R1

RETAINER

countershaft rear brg

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

529282R1

SHAFT

main, 23T

1шт.

22

529434R1

PINION

SHAFT, main, tractors w/torque amplifier

1шт.

23

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

BEARING, main shaft rear cup

2шт.

24

384114R91

NEEDLE BEARING

countershaft front

1шт.

25

380095R1

SHIM

main shaft rear brg, use 1 or use as required

1шт.

26

529283R1

CAGE

main shaft rear brg

1шт.

27

380097R1

RING

main shaft rear brg snap

1шт.

28

528674R1

GEAR

1st & 2nd speed sliding, 41 & 46T

1шт.

29

528675R1

GEAR

3rd & 4th speed sliding, 31T

1шт.

30

380098R2

RETAINER

main shaft rear brg

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

31

528676R1

SHAFT

IPTO drive

1шт.

32

385134R91

OIL SEAL

drive shaft oil

1шт.

33

384185R1

BUSHING,38.18mm ID x 44.58mm OD x 12.7mm L

drive shaft

1шт.

34

405185R91

ROLLER BEARING

ASSY, drive shaft

1шт.

35

384337R1

RING

shaft brg retaining

1шт.

36

384184R1

RETAINER

shaft brg

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd nylok

3шт.

37

384079R2

CAGE

drive shaft brg

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

5шт.

38

384090R91

OIL SEAL

shaft brg cage oil

1шт.

39

301604R1

O-RING

7-1/2 x 7-3/4 x 1/8, shaft brg cage sealing

1шт.

40

380103R21

PTO

SHAFT ASSY, IPTO driven

1шт.

41

528677R1

GEAR

driven, 58T

1шт.

42

G15215

ROLLER BEARING

BEARING ASSY, front cone

1шт.

43

619387R1

BEARING CUP

BEARING, front cup

1шт.

44

380107R1

RETAINER

driven shaft brg

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd nylok

4шт.

45

384382R1

SHIM

shaft brg retainer

1шт.

46

384106R1

SHIM

shaft brg retainer

3шт.

47

384103R1

SEAL RETAINER

SEAL, front brg retainer

1шт.

48

357035R1

RING

constant mesh gear snap, not used w/torque amplifier

1шт.

49

529207R91

BEARING ASSY,54.99mm ID x 29mm W

ASSY, main shaft rear cone

2шт.

50

ST453

RING

drive shaft brg snap

1шт.
