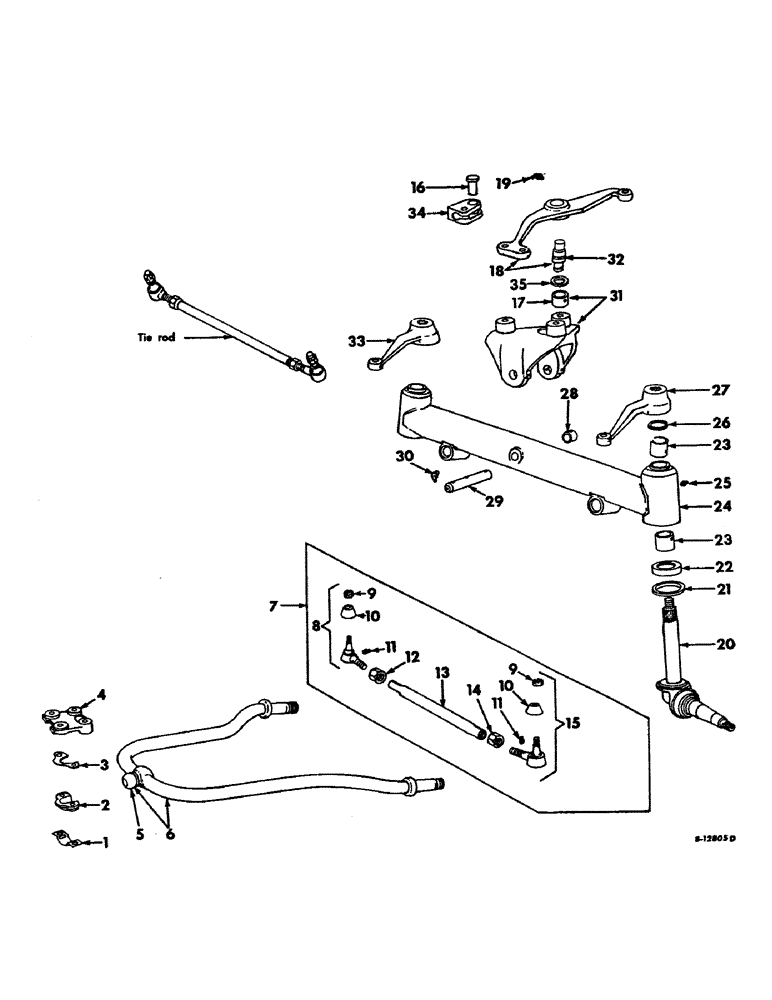

Запчасти Case IH 1456 (14-03) - SUSPENSION, FRONT AXLE AND CONNECTIONS, INTERNATIONAL TRACTORS Suspension

1

380008R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock

1шт.

2

379953R1

CAP

stay rod ball socket

1шт.

3

379954R1

SHIM

stay rod ball socket cap, use as required

1шт.

4

379952R1

SOCKET

stay rod ball

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8-11 x 1-3/4 hex-hd cap

2шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 hex-hd cap

2шт.

5

10546D

BALL

stay rod

1шт.

6

379951R11

ROD ASSY, stay

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

2шт.

118028

WASHER, 1-3/8 light lock

2шт.

7

384435R91

ROD ASSY, tie

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

4шт.

8

384005R91

END

ASSY, tie rod, LH thread

2шт.

9

374584R1

NUT, tie rod end, optional with 374701R1

4шт.

9

374701R1

NUT

tie rod end, optional with 374584R1

4шт.

10

387280R1

SEAL

COVER, dust

4шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

12

374062R1

JAM NUT

NUTM jam, LH thd

2шт.

13

384436R1

TUBE,0.948" ID, 1.187" OD, 14.562" Length

tie rod

2шт.

14

374061R1

JAM NUT

jam, RH thread

2шт.

15

384006R91

END

ASSY, tie rod, RH thread

2шт.

16

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

PIN, 3/4 x 2-1/2 clevis

1шт.

NLS

NO LONGER SERVICED

1/4 x 1-1/8 cotter

1шт.

17

399972R1

BUSHING,25.44mm ID x 28.59mm OD x 28.83mm L

center arm pivot

1шт.

18

399793R91

ARM ASSY, center steering

1шт.

16006R1

BALL

3/16 cr-stl

1шт.

19

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

1шт.

20

401768R91

KNUCKLE

W/OIL SEAL, 370254R91 and shield 48701D, steering

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slotted hex

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

21

55412D

WASHER

WASHER, steering knuckle pivot felt

2шт.

22

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

ASSY, steering knuckle pivot thrust, optional w/387231R91

2шт.

22

387231R91

BEARING

ASSY, steering knuckle pivot thrust

2шт.

23

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

24

384001R12

AXLE, w/four bushing 358985R2 & two bushing 379943R1, front

1шт.

25

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

2шт.

26

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle retaining

2шт.

27

384017R2

ARM

RH steering knuckle

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

1шт.

28

379943R1

BUSHING,38.11mm ID x 41.41mm OD x 38.1mm L

front axle pivot pin

2шт.

29

379941R1

AXLE PIN,38.1mm OD x 219.2mm L

PIN, front axle pivot

1шт.

30

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 65 deg angle drive type lub

1шт.

31

399976R91

NO LONGER SERVICED

BOLSTER ASSY, lower

1шт.

U5360

AXLE PIN

PIN, 3/8 x 6-1/8 headed

1шт.

20295R1

HEX SOC SCREW,5/8"-11 x 3"

SCREW, 5/8-11 x 3 hex-soc-hd cap

1шт.

20296R1

HEX SOC SCREW,5/8"-11 x 2"

5/8-11 x 2 hex-soc-hd cap

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

1шт.

32

399974R1

SHAFT

PIN, center arm pivot

1шт.

33

384016R2

STEERING ARM

ARM, LH steering knuckle

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

1шт.

34

389052R1

CLEVIS COUPLING

CLEVIS, cylinder end

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

1шт.

35

392991R1

SHIM

center arm pivot pin, .020, as required

1шт.

35

392990R1

SHIM

center arm pivot pin, .010, as required

1шт.
