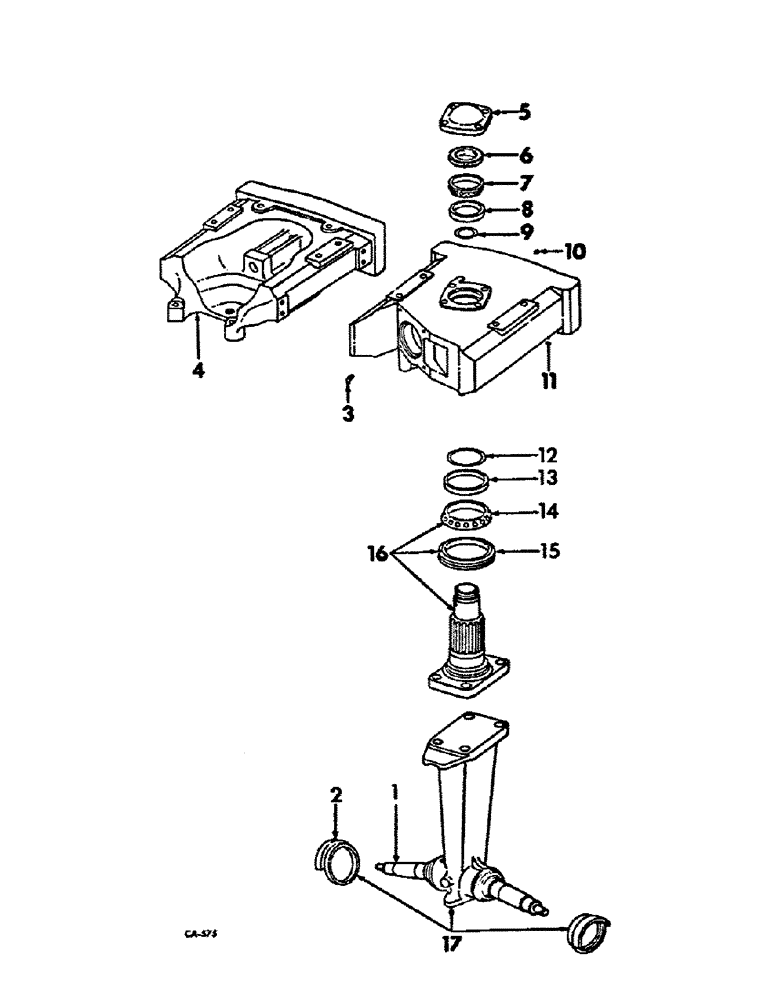

Запчасти Case IH 1456 (14-02) - SUSPENSION, FRONT AXLE AND BOLSTERS Suspension

1

370253R1

AXLE, front, Farmall tractors

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

PIN, 5/8 x 1-3/8 cot.

2шт.

2

48701D

SHIELD

front wheel dust, Farmall tractors

4шт.

3

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub, Farmall tractors

1шт.

4

367057R51

BOLSTER, upper w/bushing 399972R1, International tractors

1шт.

399972R1

BUSHING,25.44mm ID x 28.59mm OD x 28.83mm L

pivot pin

1шт.

5

378648R1

COVER

upper bolster pivot shaft, Farmall tractors

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

6

374248R1

NUT

upper bolster pivot shaft, Farmall tractors

1шт.

7

ST2086

BEARING ASSY,44.45mm ID x 29.9mm W

upper bolster pivot shaft upper cone, Farmall tractors

1шт.

8

13207D

BEARING CUP,95.28mm OD x 22.35mm W

BEARING, upper bolster pivot shaft upper cup, Farmall tractors

1шт.

9

259246R1

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

3-7/8 x 4-1/8 x 1/8, Farmall tractors

1шт.

10

384803R1

PLUG, upper bolster, Farmall tractors

1шт.

11

397478R11

SPARE PART

BOLSTER W/BEARING, 13207D, bearing ST981 & plug 384803R1, upper, Farmall tractors

1шт.

12

252734R1

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

2-3/4 x 3-1/8 x 3/16, Farmall tractors

1шт.

13

ST981

BEARING CONE,112.71mm OD x 19.05mm W

BEARING, upper bolster pivot shaft lower cup, Farmall tractors

1шт.

14

ST2087

TAPERED BEARING,2.7815" ID x 4.4385" OD x 1.014"

BEARING, upper bolster pivot shaft lower cone

1шт.

15

369380R91

OIL SEAL

upper bolster pivot shaft oil, Farmall tractors

1шт.

16

379363R21

SHAFT

ASSY, upper bolster pivot, Farmall tractors

1шт.

17

379989R11

BOLSTER ASSY, lower, Farmall tractors

1шт.

384195R1

12 PT SCREW,Flg, 3/4" - 10 x 2 1/4"

SCREW, 3/4-10 x 2-1/4 12 point cap

4шт.

19794R1

RIVET, 5/8 x 3-3/4 rd-hd

1шт.
