Запчасти Case IH 1456 (12-08) - POWER, AUXILIARY FUEL TANK Power

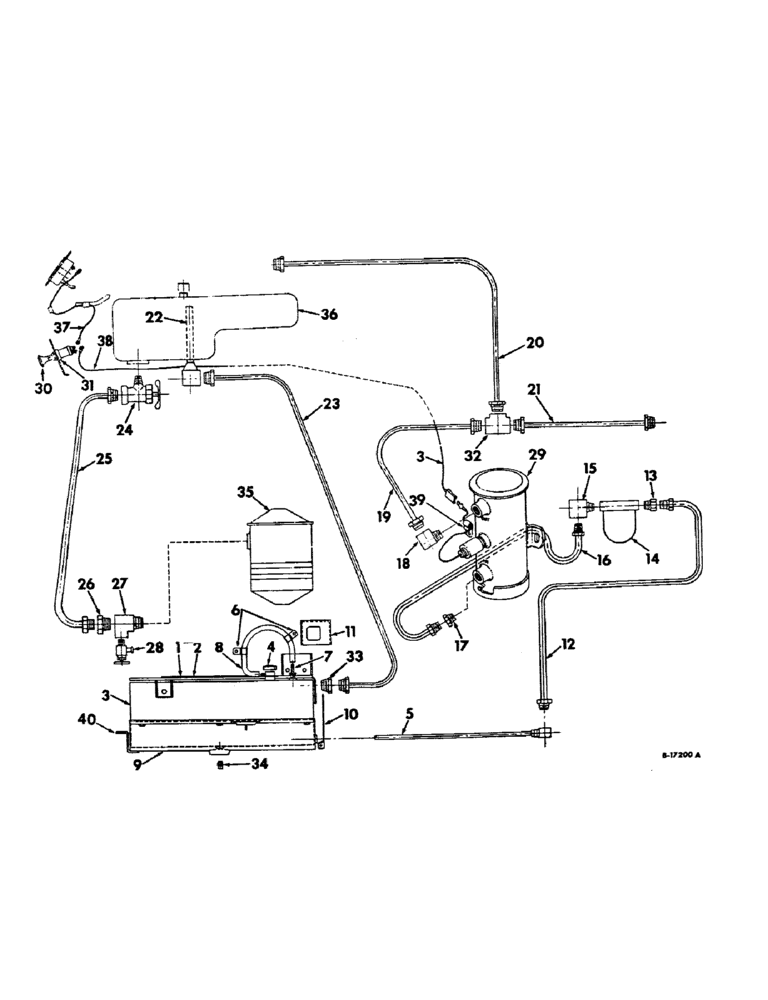

Схема запчастей Case IH 1456 - (12-08) - POWER, AUXILIARY FUEL TANK Power
14
36
25
5
6
3
37
7
9
33
4
2
38
12
16
11
35
39
18
30
3
32
21
10
40
26
22
1
19
29
34
8
27
13
31
28
23
20
17
24
15

Артикул

Название

Примечание

Количество

405732R92

PARTS ACCESSORY, auxiliary underslung fuel tank

1шт.

1

405648R1

PLATFORM ASSEMBLY, LH fuel tank

1шт.

271607

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5

SCREW, 3/4-10 x 1-1/2 hex-hd cap

3шт.

2

405653R1

PLATFORM ASSEMBLY, RH fuel tank

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

3шт.

3

405656R1

TANK ASSEMBLY, auxiliary fuel, not for tractors equipped w/all wheel drive attachment

1шт.

4

389943R91

CAP

non-vented

1шт.

5

405663R1

TUBE ASSEMBLY, fuel tank outlet

1шт.

6

383622R1

CLIP

fuel tank vent hose

2шт.

7

380471R1

FITTING

fuel tank vent

1шт.

8

405671R1

HOSE ASSY.

HOSE, fuel tank vent

1шт.

9

405665R1

SHROUD ASSEMBLY, fuel tank

1шт.

10

405669R1

SHIELD, fuel tank front

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 znd hex-hd cap

5шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

5шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

11

405670R1

COVER, upper RH platform support

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 znd hex-hd cap

4шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap, Farmall tractors

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

12

405664R1

PIPE ASSEMBLY, Serial Range: tank-strainer

1шт.

13

894809R1

CONNECTOR, 1/8-27 x 5/8-18 inv. flared tube

1шт.

14

614421R91

FILTER

STRAINER ASSY, fuel, composed of (1) bail assy 98375R91 (1) bowl, fuel 614696R1 (1) element 614693R91 (1) gasket 614694R1 (1) gasket 614695R1

1шт.

14

614421R91GV

BOWL

Value, Fuel Strainer

1шт.

15

277413R1

ELBOW, 1/8-27 x 5/8-18 inv flared tube

1шт.

16

405672R1

PIPE ASSY, Serial Range: strainer-pump

1шт.

17

894809R1

CONNECTOR, 1/8-27 x 5/8-18 inv flared tube

1шт.

18

225810

ELBOW UNION

ELBOW, 1/8-27 90 deg inverted flared tube HV series

1шт.

19

405673R1

PIPE ASSEMBLY, pump to return line

1шт.

20

405674R1

PIPE ASSY, upper fuel return

1шт.

21

405675R1

PIPE ASSY, front fuel return

1шт.

22

405676R1

PIPE ASSY, fuel overflow

1шт.

23

405677R1

PIPE ASSY, aux tank return

1шт.

24

405678R1

VALVE

shut-off

1шт.

25

405679R1

PIPE ASSY, fuel, Serial Range: tank-filter

1шт.

26

137407

CHAIN

CONNECTOR, 1/4018 inv flared tube

1шт.

27

444148

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

1/4-18 auto pope, int, ext, int

1шт.

28

111334

DRAINCOCK/TAP SUPPLY

COCK, 1/4-18 drain

1шт.

29

405898R91

FUEL PUMP

PUMP ASSY, electric fuel

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z flat

1шт.

30

362818R91

SWITCH

fuel pump

1шт.

31

59109D

SPACER, fuel pump switch

1шт.

32

127927

TEE,7/16"-24, Inv Flare, Fem, Brass

7/16-24 inverted flared tube 2-way HV series

1шт.

33

442323

CONNECTOR, ELEC

CONNECTOR, 1-1/4-18 inverted flared tube HV series

1шт.

34

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 sq-hd pipe drain

1шт.

35

FILTER, primary fuel, see fuel filters listing

1шт.

36

TANK ASSY, fuel, see fuel tanks, supports and piping listing this section

1шт.

37

389911R91

CABLE ASSY, switch to cluster gauge hot terminal

1шт.

38

405687R1

CABLE ASSY, Serial Range: switch-pump

1шт.

39

384554R1

CLIP

switch to pump cable

1шт.

40

527702R1

SUPPORT, fuel tank shroud

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

1шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga C-Z

1шт.

355258C1

SCREW, 1/2-13 x 10 znd hex-hd cap

6шт.

365584R1

CLIP

switch to pump cable

1шт.

Выбрано товаров: 60
