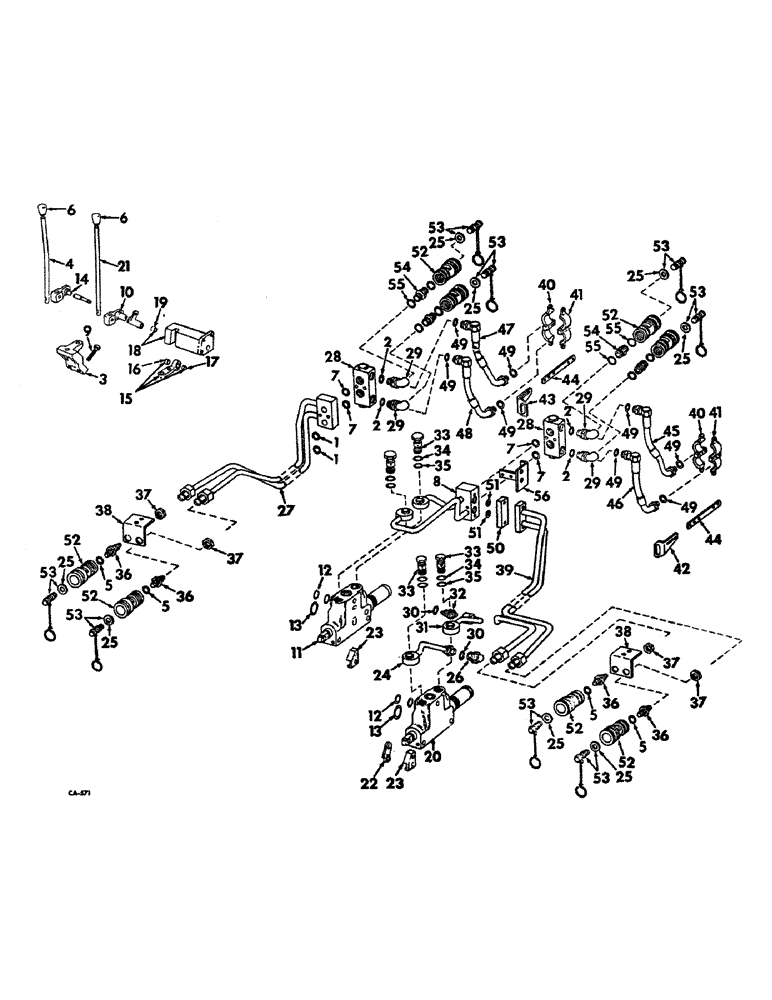

Запчасти Case IH 1456 (10-21) - HYDRAULICS, AUXILIARY VALVES AND TUBES (07) - HYDRAULICS

Service parts for single auxiliary hydraulic valve w/left rear outlet double acting check valve and breakaway coupling, consists of all parts marked unit A

1шт.

Service parts for double auxiliary hydraulic valve w/left & right rear outlets w/double acting check valve and breakaway coupling on each outlet, consists of all parts marked unit B

1шт.

Service parts for double auxiliary hydraulic valve w/left & right rear outlets w/double acting check valve and breakaway coupling on each rear outlet and left and right front outlet attachments, consists of all parts marked unit C

1шт.

530847R91

LOCK VALVE

PARTS ACCESSORY, second auxiliary hydraulic valve w/right rear outlet, tractors equipped w/single auxiliary hydraulic valve att, consists of ref nos 4, 6, 9, 11 thru 15, 22, 23, 24, 30 thru 35, 52 thru 55 & attaching parts

1шт.

403608R91

PARTS ACCESSORY, LH front mainfold, for tractors w/single or double auxiliary hydraulic valve att

1шт.

Consists of (1) angle 398432R1 (2) bolt 15002R1 (2) coupling 395150R91 (2) nut 102635 (2) nut 9403295 (2) O-ring 252707R1 (2) O-ring 364885R1 (2) plug assy 401757R11 (2) screw 179841 (1) tube 398435R1 (2) union 9403256

1шт.

403607R91

PARTS ACCESSORY, RH front manifold, for tractors equipped w/double auxiliary hydraulic valve attachment w/double acting check valve on each rear outlet

1шт.

Consists of (1) angle 398432R1 (2) bolt 15002R1 (2) coupling 395150R91 (2) nut 102635 (2) nut 9403295 (2) O-ring 252707R1 (2) O-ring 364885R1 (2) plug assy 401757R11 (2) screw 179841 (1) tube 398435R1 (2) union 9403256

1шт.

1

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 x 3/32, manifold tube to seat support, 2 for unit C

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, for check valve elbow on tractors without breakaway coupling

4шт.

3

389605R1

BRACKET

float lockout, units A, B & C

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

389167R1

LEVER

HANDLE, auxiliary valve control outer, units B & C

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 for unit C

1шт.

6

389168R1

KNOB

auxiliary valve control handle, 1 for unit A, 2 for unit B & C

1шт.

7

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 x 3/32, 2 used w/each double acting check valve for units A, B & C

1шт.

8

398420R1

MANIFOLD

ASSY, left rear, units A, B & C

1шт.

102635

NUT,3/8"-16, G5

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

102635

NUT,3/8"-16, G5

Tractors w/o double acting check valve 3/8"-16, G5

2шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

Tractors w/o double acting check valve Hex, 3/8"-16 x 2 1/2", G5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065), Tractors w/o double acting check valve 3/8"

2шт.

9

20641R1

SCREW

5/16-18 x 1-3/8 hex-hd mach, adjusting screw, units A, B & C

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

10

389164R12

BASE

ASSY, auxiliary valve inner handle, units A, B & C

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

529910R92

CONTROL VALVE

VALVE ASSY, hydraulic control, units B & C, for components see list of parts under details of hydraulic control valve

1шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex-hd cap, 3 for units B & C

1шт.

12

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, 2 per valve, open center valve small, units A, B & C

1шт.

13

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, 1 per valve, open center valve large, units A, B & C

1шт.

14

389166R12

BASE

ASSY, auxiliary valve outer handle, units B & C

1шт.

15

384111R91

SUPPORT

ASSY, control lever tube inner, units A, B & C

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

383234R1

BUSHING,11.14mm ID x 12.71mm OD x 6.35mm L

control lever shaft, units A, B & C

1шт.

17

383233R1

BUSHING,19.15mm ID x 20.65mm OD x 9.65mm L

control lever tube, units A, B & C

1шт.

18

383235R21

BRACKET

SUPPORT ASSY, control lever, units A, B & C

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

19

383236R1

BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L

control lever outer, units A, B & C

1шт.

20

529911R92

CONTROL VALVE

VALVE ASSY, hydraulic control, units A, B & C, for components see list of parts under details of hydraulic control valve

1шт.

631944R1

SCREW, 3/8-16 x 2-1/2 hex-hd cap, 3 for unit A

1шт.

21

389165R1

SHAFT

HANDLE, auxiliary valve control inner, units A, B & C

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

22

383243R91

ARM

ASSY, valve operating outer, units B & C

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

23

384112R11

DRIVE ASSY.

ACTUATOR ASSY, valve spool, 1 per valve, units A, B & C

1шт.

24

398433R1

TUBE

ASSY, right rear lift, units B & C

1шт.

25

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug, 1 per plug, units A, B & C

1шт.

26

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hydraulic flared tube adj str thd 90 deg, right rear lift tube, units B & C

1шт.

27

398428R1

TUBE

ASSY, right front manifold, unit C

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

28

374083R92

VALVE

ASSY, double acting check, 1 for unit A, 2 for units B & C, for components see list of parts under details of double acting check valve

1шт.

102635

NUT,3/8"-16, G5

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

2шт.

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

29

371357R91

ELBOW

check valve, 2 used w/each double acting check valve without breakaway coupling

4шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, right rear lift & drop tube, 2 for units B & C

1шт.

31

398426R1

TUBE

ASSY, right rear drop, units B & C

1шт.

32

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg C-Z hyd flared tube short swivel, units B & C

1шт.

33

378169R1

SCREW,Hex, 7/8" - 14 x 1.62"

PLUG, rear tube inlet union short, 2 per valve, units A, B & C

1шт.

34

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, manifold lift pipe union plug small, 1 per plug, units A, B & C

1шт.

35

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

15/16 x 1-1/16 x 1/16, manifold lift pipe union plug large, 1 per plug, units A, B & C

1шт.

36

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 5/8 tube bulk hd, 4 for unit C

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, bulk head union, 4 for unit C

1шт.

37

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, 5/8 tube bulk hd union lock, 4 for unit C

1шт.

38

398432R1

ANGLE, front outlet bracket, 2 for unit C

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd Short NK, 3/8"-16 x 7/8", G2, Full Thd

4шт.

102635

NUT,3/8"-16, G5

4шт.

39

398435R1

TUBE

ASSY, left manifold, unit C

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

40

371114R1

CLAMP

FRAME, self-sealing coupling RH, 1 for unit A, 2 for units B & C

1шт.

41

371115R1

CLAMP

self-sealing coupling, 1 for unit A, 2 for units B & C

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2 per clamp Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 2 per clamp 1/4"

1шт.

42

402316R1

SUPPORT

BRACKET, self-sealing coupling frame LH, units A, B & C

1шт.

271559

HOOD,Hex, 5/8" - 11 x 1 5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 hex-hd cap, for tractors w/standard drawbar

1шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap, for tractors w/three-point hitch

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095 plain

1шт.

43

402317R1

BRACKET, self-sealing coupling RH, units B & C

1шт.

271559

HOOD,Hex, 5/8" - 11 x 1 5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 hex-hd cap, for tractors w/standard drawbar

1шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap, for tractors w/three-point hitch

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095 plain

1шт.

44

402318R1

ARM

self-sealing coupling frame, 1 for unit A, 2 for units B & C

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, , 2 per arm Short NK, 1/4"-20 x 3/4", G2

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 C-Z hex-hd cap, 2 per arm

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2 per arm 1/4"-20, G5

1шт.

44

398478R1

BRACE, self-sealing coupling, tractors w/platform extension, 1 for unit A, 2 for units B & C

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 hex-hd cap, 2 used per brace

1шт.

180172

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap, 1 per brace

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per brace 1/2"-13, G5

1шт.

45

402226R1

HOSE ASSY.

HOSE ASSY, breakaway upper LH, for tractors equipped w/standard drawbar or three-point hitch, units A, B & C

1шт.

45

398485R1

HOSE ASSY.

HOSE ASSY, remote control upper LH, for tractors equipped w/platform extension, units A, B & C

1шт.

46

402227R1

HOSE

ASSY, breakaway lower LH, for tractors equipped w/standard drawbar or three-point hitch, units A, B & C

1шт.

46

398486R1

HOSE ASSY.

HOSE ASSY, remote control lower LH, for tractors equipped w/platform extension, units A, B & C

1шт.

47

402224R1

HOSE ASSY.

HOSE ASSY, breakaway upper RH, for tractors equipped w/standard drawbar or three-point hitch, units B & C

1шт.

47

398485R1

HOSE ASSY.

HOSE ASSY, remote control upper RH, for tractors equipped w/platform extension, units B & C

1шт.

48

402225R1

HOSE

ASSY, breakaway lower RH, for tractors, equipped w/standard drawbar or three-point hitch, units B & C

1шт.

48

398486R1

HOSE ASSY.

HOSE ASSY, remote control lower RH, for tractors equipped w/platform extension, units B & C

1шт.

49

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 for unit A, 8 for units B & C

1шт.

50

398424R1

BAR, left tube manifold block cap, units A & B

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

51

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32, manifold block or cap, 2 for units A, B & C

1шт.

52

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, hyd self-sealing female, 2 for unit A, 4 for unit B, 8 for unit C

1шт.

53

401757R11

PLUG

ASSY, coupling dust, 2 for unit A, 4 for unit B, 8 for unit C

1шт.

54

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg C-Z hyd flared tube short swivel, 2 for unit A, 4 for unit B, 8 for unit C

1шт.

55

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 2 for unit A, 4 for unit B, 8 for unit C

1шт.

56

398425R1

ANGLE

BRACKET, left rear manifold, units A, B & C

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.
