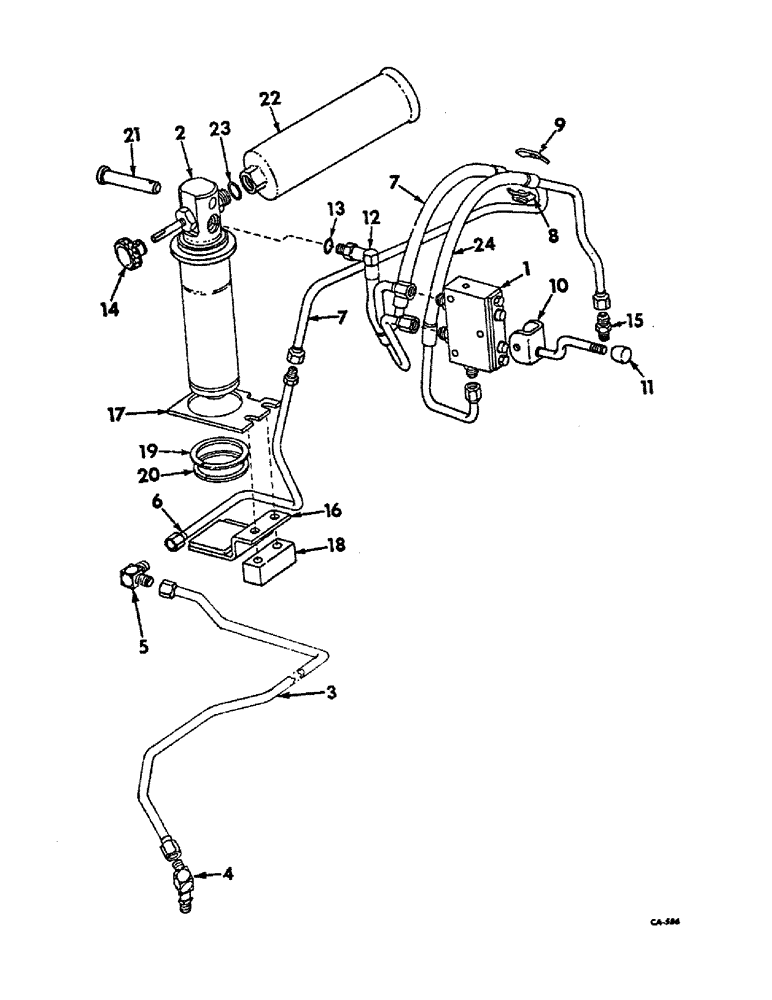

Запчасти Case IH 1456 (10-16) - HYDRAULICS, HYDRAULIC SEAT ATTACHMENT, HYDRAULIC PIPING AND CONNECTIONS (07) - HYDRAULICS

1

399088R92

VALVE

ASSY, hyd seat control, for components see list of parts under details of hydraulic seat cylinder

1шт.

2

399093R91

HYDRAULIC CYLINDER

CYLINDER ASSY, S.A. ram hyd, for components see list of parts under details of hydraulic seat cylinder

1шт.

3

529039R1

TUBE

ASSY, hyd seat pressure supply

1шт.

140579

CLIP, 5/16 closed

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

20285H

WASHER

13/16 x 3/4 x 11 ga

1шт.

4

9410975

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

1/2-20 37 deg. hyd flared tube adj str thd 90 deg.

1шт.

5

530989R1

ELBOW, 37 deg. hyd flared tube reducer

1шт.

6

530990R1

TUBE ASSY, lower hyd seat pressure

1шт.

7

399087R1

TUBE

ASSY, hyd seat pressure upper

1шт.

8

384891R11

CLAMP

ASSY, hyd seat pressure tube upper

1шт.

9

384891R1

CLAMP

hyd seat pressure tube upper

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

399089R1

LEVER

ASSY, seat control valve

1шт.

11

611976R1

KNOB, seat control valve lever

1шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 25/32 rod end

1шт.

95-11041

WASHER,3/8"

13/32 x 1 flat

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

12

399092R1

HYDRAULIC HOSE

& HOSE ASSY, Serial Range: valve-cyl

1шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, cylinder port

1шт.

14

399094R1

KNOB

seat ride control

1шт.

15

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR, 9/16-18 x 1/4 NPTF 37 deg flared tube

1шт.

16

399095R1

BRACE ASSY, cyl base

1шт.

Q3641

WASHER

13/32 x 3/4 x .024, cyl base shim, use as required

3шт.

17

399098R1

BAR, hyd cyl mounting bracket

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065

2шт.

18

399099R1

BAR, cylinder mounting spacer

1шт.

19

633090R1

WASHER

2.28 x 2.75 x .06 flat

1шт.

20

644771R1

SNAP RING,#225, Ext

Ring, Snap, , hyd cylinder #225, Ext

1шт.

21

90560H

CLEVIS PIN,1/2" x 2.766"

PIN, 1/2 x 2-49/64 headed

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

22

399100R1

SHOCK ABSORBER

ABSORBER, hyd accumulator

1шт.

23

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .087 thick

1шт.

24

399101R1

HOSE

AND TUBE ASSY, Serial Range: valve-sump

1шт.

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.
