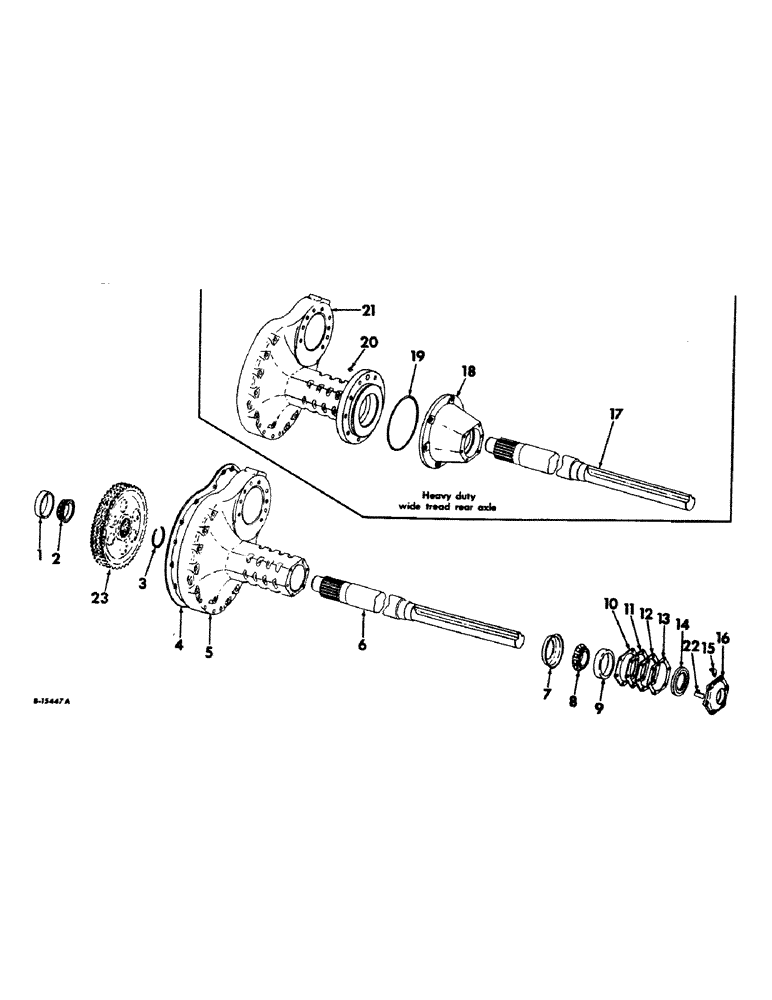

Запчасти Case IH 1256 (B-20) - POWER TRAIN, REAR AXLE AND CONNECTIONS (03) - POWER TRAIN

1

56040R1

BEARING CUP,2.5938" ID x 4.8125" OD x 1.71875"

rear axle inner cup

2шт.

2

391695R91

BEARING ASSY,2.5938" ID x 4.8125" OD x 1.71875, 1.4375"

rear axle iner cone

2шт.

3

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer snap

2шт.

4

380225R1

GASKET

rear axle carrier

2шт.

5

380224R1

AXLE CARRIER

CARRIER, rear axle

2шт.

444746

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 auto sq-hd drain & filler

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap

28шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

SCREW, 5/8-11 x 4-1/4 hex-hd

8шт.

6

391692R2

SHAFT

AXLE, rear, Farmall tractors

2шт.

6

391693R1

AXLE, rear, International tractors

2шт.

6

392646R2

AXLE

rear, 100 inch tread, tractors w/dual rear wheels of wheatland

2шт.

6

392261R3

AXLE

rear, 118 in. maximum tread

2шт.

7

380223R1

DEFLECTOR

RETAINER, rear axle outer brg grease

2шт.

8

ST2107

TAPERED BEARING

BEARING ASSY, rear axle outer cone

2шт.

9

13249D

BEARING CUP,152.4127 mm OD x 39.7895 mm

rear axle outer cup

2шт.

10

380227R1

SHIM

rear axle carrier cap, .007

6шт.

11

380228R1

SHIM

rear axle carrier cap, .012 (use as required)

4шт.

12

380229R1

SHIM

rear axle carrier cap, .030 (use as required)

1шт.

13

380230R1

SHIM

rear axle carrier cap, .004

1шт.

13

385158R1

SHIM

rear axle carrier cap, .003

1шт.

14

378077R91

OIL SEAL

rear axle carrier cap oil

2шт.

15

109457

LUBE NIPPLE,65 Degree, 5/16" NPT x .70" lg, Drive

FITITNG, 5/16 65 deg angle drive type lub, rear axle carrier cap

2шт.

16

391698R1

CAP, rear axle carrier

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

12шт.

17

392260R1

AXLE, rear, 114 in. maximum tread

2шт.

18

384249R1

EXTENSION, rear axle carrier

2шт.

SCREW, 3/8-16 x 1 hex-hd cap

12шт.

19

286967R1

O-RING

9-1/4 x 9-1/2 x 1/8, rear axle carrier

2шт.

20

382857R1

PLUG, rear axle carrier

2шт.

21

382856R11

CARRIER

ASSEMBLY, rear axle

2шт.

444746

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 automotive sq-hd drain and filler

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap

12шт.

271568

PIPE FITTING,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap

28шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

SCREW, 5/8-11 x 4-1/4 hex-hd cap, Course Threads

8шт.

22

392346R1

BRACKET

rear wheel inner position gauge

1шт.

23

BULL GEAR, refer to differential listing

1шт.
