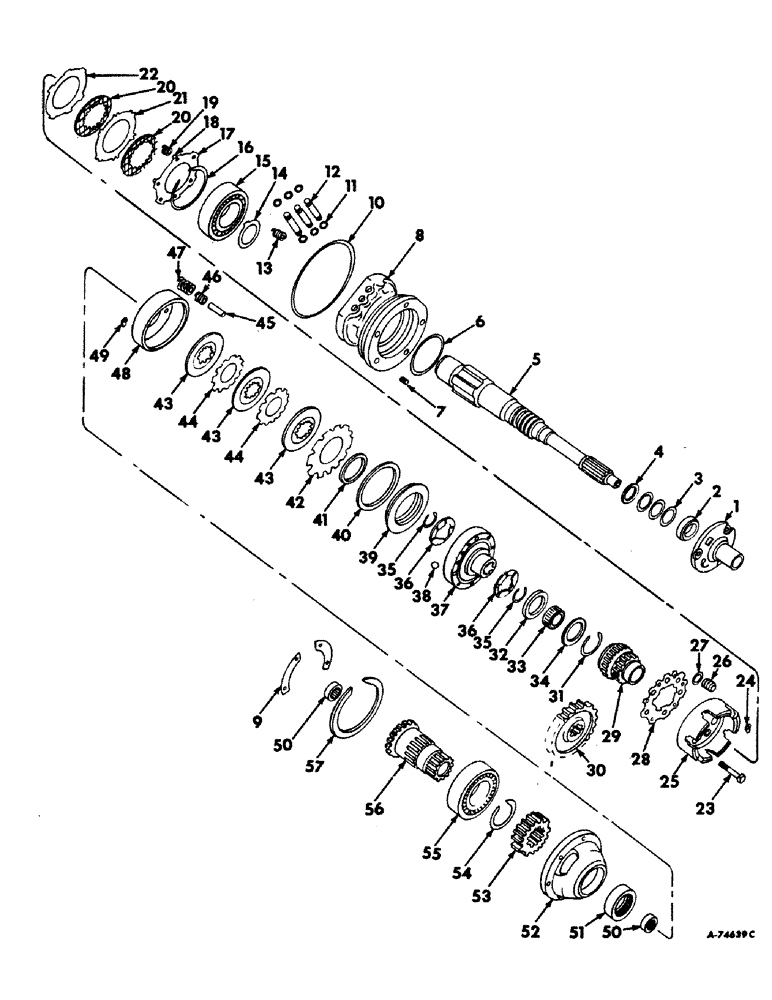

Запчасти Case IH 1256 (B-09) - POWER TRAIN, TORQUE AMPLIFIER (03) - POWER TRAIN

1

380101R1

CAGE

CAGE, PTO drive shaft brg

1шт.

1

234570A2

REMAN-TORQUE AMPLIF

IER Remanufactured

1шт.

1

1944039C2

CORE-TORQUE AMPLIF

Return Part Number

1шт.

1

HD234570A2

REMAN-TORQUE AMPLIF

IER Remanufactured Torque Amplifier

1шт.

1

1944039C2

CORE-TORQUE AMPLIF

IER Return Part Number Torque Amplifier, mechanical diode clutch, 25 degree pressure angle tooth

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

3шт.

HD234570AD

1шт.

2

384090R91

OIL SEAL

SEAL, PTO oil shaft brg cage

1шт.

3

380234R1

RING

RING, clutch shaft seal

3шт.

4

384182R1

RETAINER

RETAINER, PTO drive shaft brg

1шт.

5

380233R11

SHAFT

SHAFT ASSY, clutch

1шт.

6

252735R1

O-RING

O-RING, 5 x 5-1/4 x 1/8, brg cage sealing

1шт.

7

222459

SCREW

SCREW, 5/16-18 x 5/16 F-PT, optional w/138666

3шт.

7

138666

SCREW,Hdls Hex Skt, 5/16" - 18 x 5/16"

SCREW, 5/16-18 x 5/16 oc, pt set, optional w/222459

3шт.

8

380235R11

HOUSING

CARRIER ASSY, torque amplifier & PTO drive, includes screws

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

5шт.

9

380081R1

PLATE

PLATE, drive gear bearing lock, includes screws

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

10

301604R1

O-RING

O-RING, 7-1/2 x 7-3/4 x 1/8, torque amplifier & PTO drive carrier

1шт.

11

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

O-RING, 1/2 x 5/8 x 1/16, oil inlet tube

6шт.

12

382353R1

HYD TUBE,0.625" OD, 4.32" Length

TUBE, oil intlet

3шт.

13

382337R1

SPRING

SPRING, torque amplifier drive gear lub baffle

2шт.

14

380238R3

NO LONGER SERVICED

BAFFLE, torque amplifier drive gear lub

1шт.

15

ST697

BALL BEARING,75 mm ID x 130 mm OD x 22 mm

BEARING, torque amplifier drive gear

1шт.

16

382346R1

RING, SNAP

RING SNAP RING, torque amplifier lock-up clutch internal snap

1шт.

17

382345R11

PLATE ASSY.

PLATE ASSY, torque amplifier lock-up clutch backing

1шт.

18

19841R1

DOWEL,1/4" x 1/2"

PIN, 1/4 x 1/2 dowel

6шт.

19

382666R1

VALVE SPRING

SPRING, lock-up clutch

6шт.

20

382343R1

PLATE ASSY.

PLATE, torque amplifier lock-up clutch driven

2шт.

21

382344R1

PLATE ASSY.

PLATE, torque amplifier lock-up clutch driving

1шт.

22

382342R1

PLATE ASSY.

PLATE, torque amplifier lock-up clutch piston backing

1шт.

23

383406R1

BOLT,Sq Hd, 7/16" - 20 x 3"

BOLT, torque amplifier lock-up clutch carrier, includes nuts

3шт.

381915R1

NUT,7/16"-20, G8

NUT, 7/16-20 hex.

3шт.

24

382339R1

LOCK WASHER

WASHER, torque amplifier clutch carrier lock

3шт.

25

382338R1

CARRIER

CARRIER, torque amplifier lock-up clutch, includes screws

1шт.

181335

BOLT,Hex, 5/16" - 24 x 11/16", Gr 5

BOLT, Hex, 5/16"-24 x 11/16", G5, Full Thd

3шт.

26

382341R1

PISTON

PISTON, torque amplifier lock-up clutch

6шт.

27

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING, 3/4 x 1 x 1/8, lock-up clutch piston

6шт.

28

382340R2

GASKET

GASKET, torque amplifier lock-up clutch carrier

1шт.

29

392292R11

GEAR

GEAR ASSY, torque amplifier drive

1шт.

30

392291R1

GEAR

GEAR, TA driven, 51 teeth

1шт.

31

382665R1

RING

RING, oneway clutch retainer internal snap

1шт.

32

381086R1

RING

RING, sprag clutch seal

1шт.

33

382668R91

NEEDLE BEARING

CLUTCH, torque amplifier one way

1шт.

34

382667R1

WASHER

WASHER, clutch retaining

1шт.

35

380241R1

SNAP RING

RING, hyd clutch carrier snap

2шт.

36

380240R1

THRUST WASHER

WASHER, hyd clutch carrier thrust

2шт.

37

380239R11

CARRIER

CARRIER ASSY, hyd clutch

1шт.

38

16006R1

BALL

BALL, 3/16 cr-stl

1шт.

39

380242R1

PISTON

PISTON, hydraulic clutch

1шт.

40

380244R1

SEALING RING

RING, hyd clutch piston outer seal

1шт.

41

380243R1

RING

RING, hyd clutch piston inner seal

1шт.

42

384430R2

LARGE PLATE

PLATE, LARGE PLATE, hyd clutch piston backing

1шт.

43

380249R2

PLATE

PLATE, hyd clutch driven

3шт.

44

384431R2

PLATE ASSY.

PLATE, hyd clutch driving

2шт.

45

380245R1

PIN

PIN, hyd clutch spring guide

9шт.

46

380246R1

SPRING

SPRING, hyd clutch small

9шт.

47

380247R1

SPRING

SPRING, hyd clutch large

9шт.

48

380251R1

BACKING PLATE

PLATE, hyd clutch backing

1шт.

49

382347R1

WASHER

WASHER, hyd clutch backing plate lock

3шт.

50

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING, clutch shaft rear

2шт.

51

380078R91

NEEDLE BEARING

BEARING, drive gear front

1шт.

52

380253R1

CAGE

CAGE, drive gear bearing

1шт.

53

381329R1

SPARE PART GEAR, constant mesh drive, 26T

1шт.

54

381330R1

RING

RING, drive gear external snap

1шт.

55

ST697

BALL BEARING,75 mm ID x 130 mm OD x 22 mm

BEARING, drive gear ball

1шт.

56

382349R1

SHAFT

SHAFT, constant mesh gear quill

1шт.

57

392683R1

RING

RING, drive gear internal snap

1шт.

1944038C3R

REMAN-TORQUE AMPLIF

IER Remanufactured Torque Amplifier

1шт.

1944039C2

CORE-TORQUE AMPLIF

IER Return Part Number

1шт.

HD1944038C3R

REMAN-TORQUE AMPLIF

IER Remanufactured, Torque Amplifier

1шт.

1944039C2

CORE-TORQUE AMPLIF

IER Return Part Number

1шт.

1944112C1R

REMAN-TORQUE AMPLIF

IER Remanufactured Torque Amplifier

1шт.

1944113C1

CORE-TORQUE AMPLIF

IER Return Part Number, Torque Amplifier

1шт.
