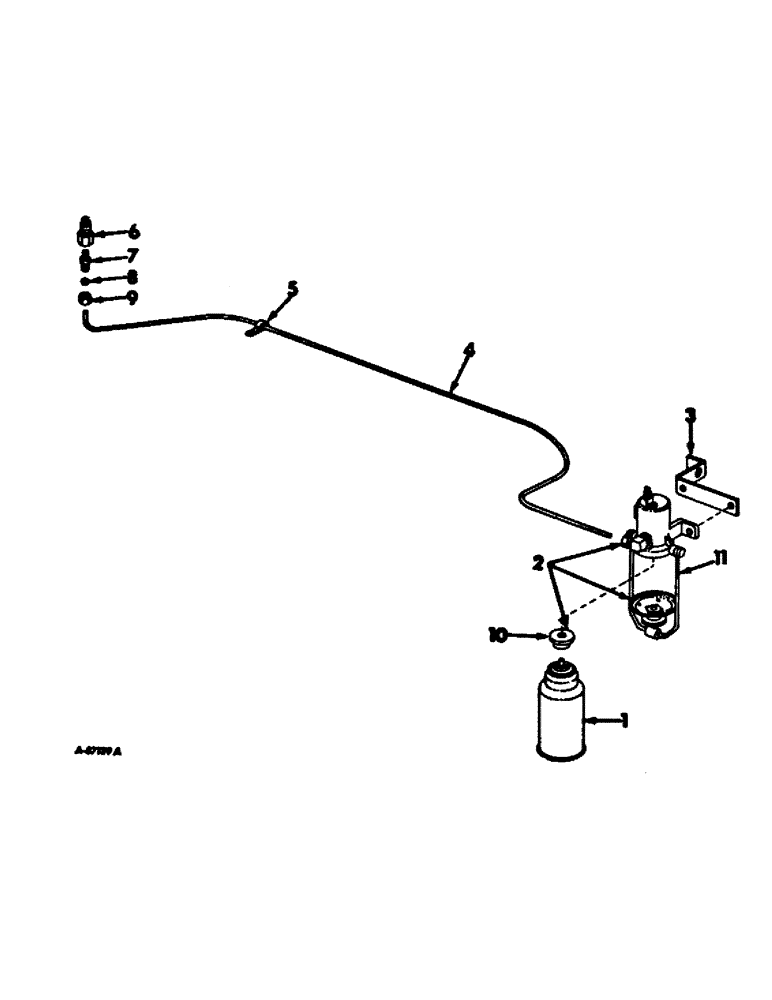

Запчасти Case IH 1256 (E-07) - FUEL SYSTEM, ETHER STARTING, SOLENOID OPERATED (02) - FUEL SYSTEM

1

385064R91

FLUID

ether starting, 12 oz can

1шт.

2

393719R92

NOZZLE

SOLENOID ASSY, ether starting

1шт.

19803R1

BOLT,Hex, 1/4" - 20 x 7/8", Gr 2

1/4-20 x 7/8 C-Z

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

395072R1

SUPPORT

BRACKET, solenoid mounting

1шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

395078R1

TUBE, starting fluid

1шт.

5

388922R1

NO LONGER SERVICED

CLIP, starting fluid tube

1шт.

6

269635R91

NOZZLE CAP

NOZZLE ASSY, ether starting fluid

1шт.

7

NLS

NO LONGER SERVICED

CONNECTOR, tube

1шт.

8

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

1шт.

9

121220

TUBE NUT

NUT, tube connector

1шт.

10

395686R1

GASKET

ether starting injector

1шт.

11

404247R1

BAIL

ASSY, injector

1шт.
