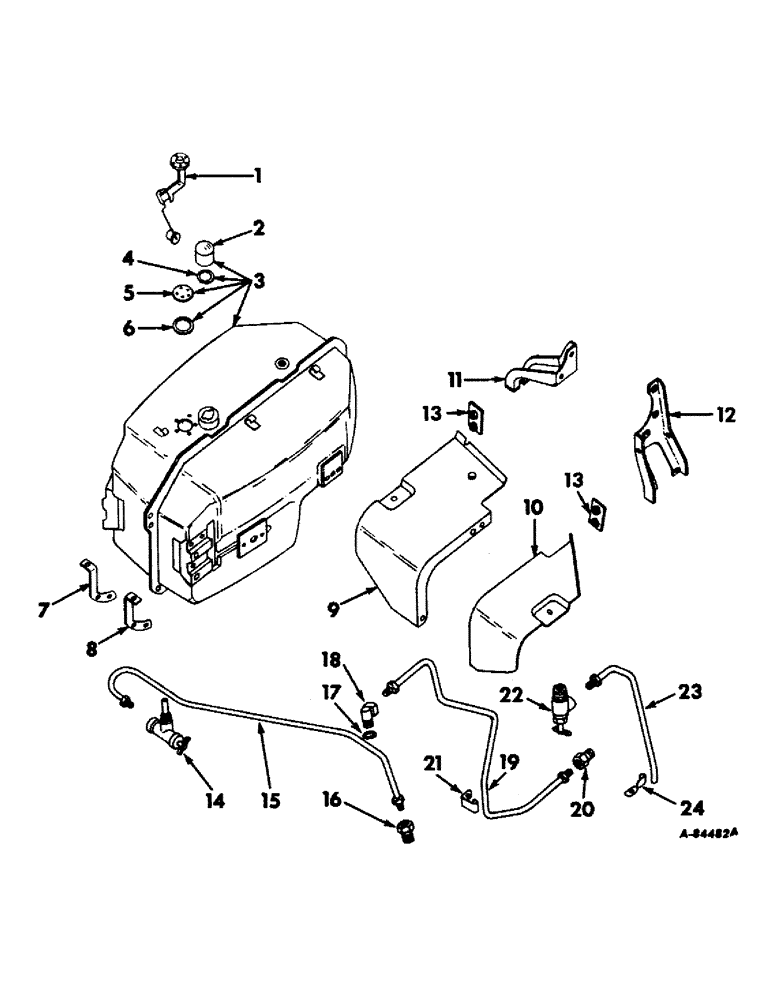

Запчасти Case IH 1256 (E-03) - FUEL SYSTEM, FUEL TANK SUPPORTS AND PIPING (02) - FUEL SYSTEM

1

378427R91

GAUGE

SENDING UNIT ASSY, electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

2

361910R91

PLUG

CAP W/GASKET, fuel tank filler, includes rivets

1шт.

213516

RIVET

1/8 x 1/8 C-Z ov-hd tubular

2шт.

3

381379R93

TANK

ASSY, fuel, includes nuts and screws

1шт.

389117R91

NUT

5/16-18 FLOATING CAGE

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

4

23977DB

GASKET

fuel tank filler cap

1шт.

5

369155R1

COVER, fuel gauge sending unit opening, tractors w/o electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Cover mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

6

369154R1

GASKET

sending unit and cover

1шт.

7

384196R1

BRACKET, fuel tank rear support, LH

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

8

384197R1

BRACKET, fuel tank rear support, RH

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

386117R41

SHIELD ASSY, lower LH heat

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 hex-washer-hd, cap

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

10

391712R21

SHIELD ASSY, lower RH heat

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

11

382365R11

SUPPORT ASSY, fuel tank LH front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

12

382367R11

SUPPORT ASSY, fuel tank RH front

1шт.

13

386119R11

TAB ASSY, lower heat shield

2шт.

14

390069R91

SHUT-OFF VALVE

VALVE, fuel tank shut-off

1шт.

15

PIPE ASSY, fuel tank to filter, use 22 inches of 3/8 OD copper tubing from 50 ft roll marked 995063R1 & two 137399 inverted flared nuts

1шт.

16

442323

CONNECTOR, ELEC

CONNECTOR, 1/4-18 brs inverted flared tube heavy

1шт.

17

119933

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

3/8 x 1/8 reducing pipe

1шт.

18

225810

ELBOW UNION

ELBOW, 7/16-24 90 deg inverted flared tube

1шт.

19

PIPE ASSY, fuel return, use 44 inches of 1/4 OD copper tubing from 50 ft roll marked 995061R1 & two 137397 inverted flared nuts

1шт.

20

137405

CONNECTOR, ELEC

CONNECTOR, 1/8-27 brs inverted flared tube

1шт.

21

383186R2

CLIP, fuel return pipe

1шт.

Q5035

WASHER

17/32 x 1 x .060

1шт.

22

390076R91

VALVE

fuel tank drain

1шт.

23

390075R11

PIPE ASSY, fuel tank drain

1шт.

24

370740R1

CLAMP

CLIP, fuel tank drain

1шт.
