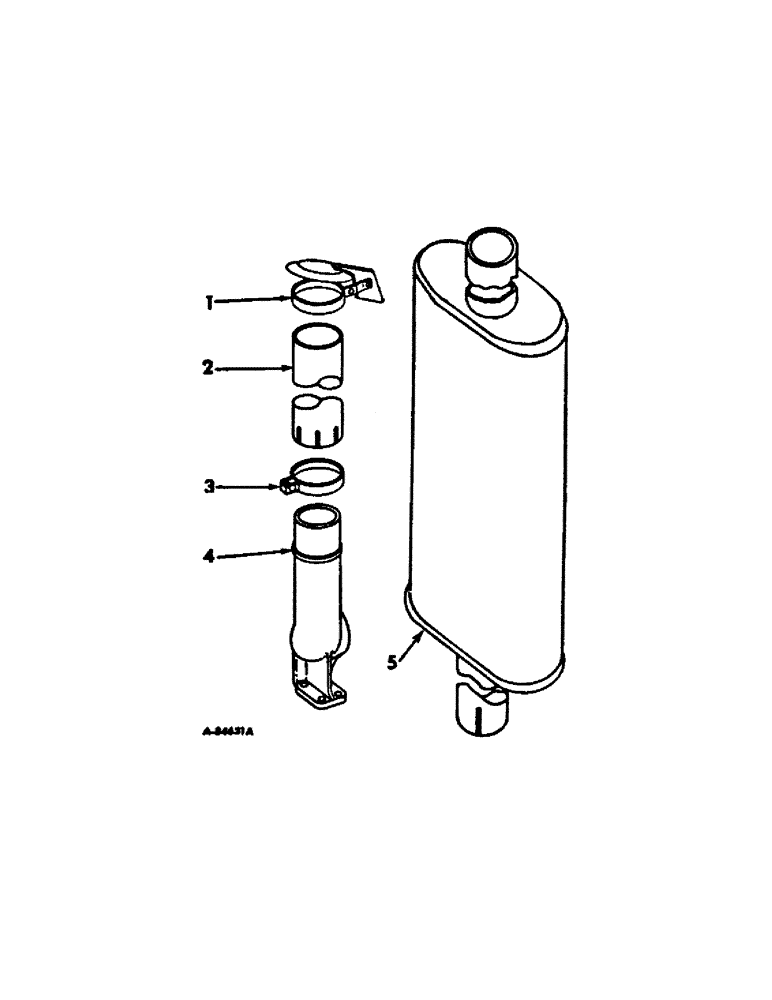

Запчасти Case IH 1256 (D-02[A]) - DIESEL ENGINE, EXHAUST SYSTEM (01) - ENGINE

1

402315R1

CAP

ASSY, exhaust

1шт.

1

530750R1

CYLINDER END CAP

CAP ASSY, exhaust, used only w/muffler, 530577R2

1шт.

2

402313R1

TUBE

PIPE, exhaust extension, 39 in. long

1шт.

2

402986R1

PIPE, EXHAUST SYSTEM

PIPE, exhaust extension, 50 in. long, tractors with cab or protective frame

1шт.

3

402314R91

CLAMP,94.16mm - 97.21mm

ASSY, exhaust extension pipe

1шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

5/16-18 x 1-1/4 sq-nk crg, included w/402134R91

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex., included w/402314R91

1шт.

4

670034C1

ELBOW UNION

ELBOW, turbo exhaust outlet

1шт.

304451R1

NUT

3/8-24 special lock

4шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 hex-hd cap

4шт.

5

530577R2

MUFFLER

exhaust

1шт.
