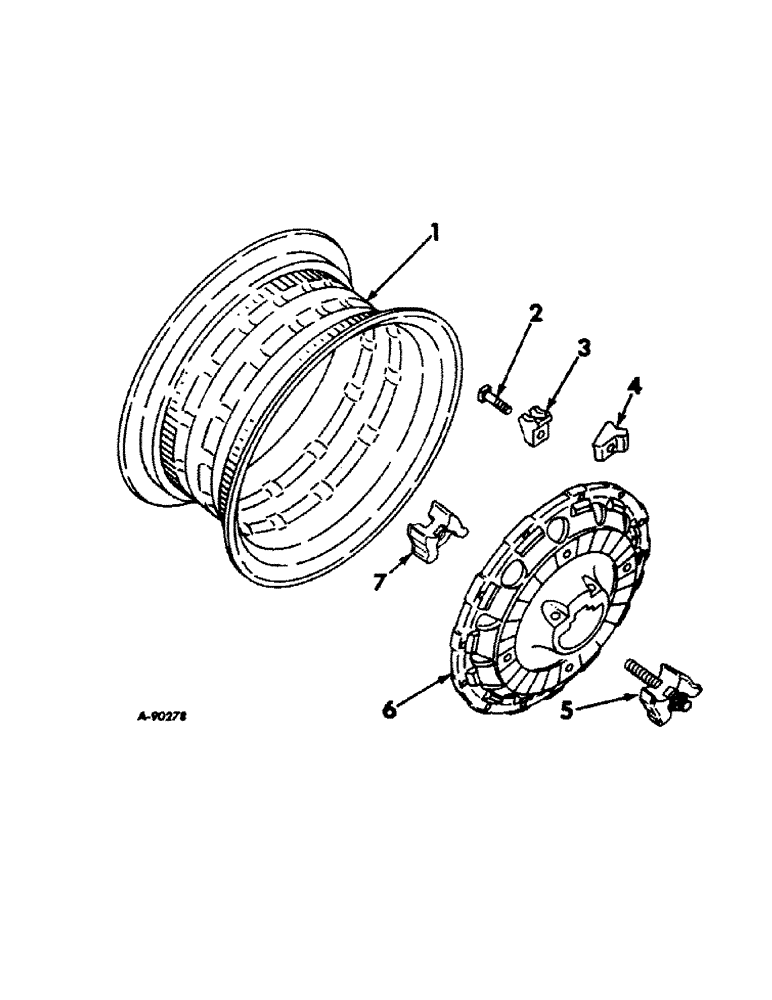

Запчасти Case IH 1256 (L-05[A]) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS, TRACTORS WITH ALL WHEEL DRIVE Wheels & Wheel Weights

1

392647R1

RIM

rear wheel, WH14L-38 rim for 15.5-38 tire, Farmall tractors

2шт.

1

392032R1

RIM

rear wheel, W15L-38 rim for 16.9-38 tire, Farmall tractors

2шт.

1

392031R1

RIM

rear wheel, W16L-38 rim for 18.4-38 tire

2шт.

1

384068R91

RIM

rear wheel, DW20-30 rim FO 23.1-30 tire w/clamps, International tractors

2шт.

1

392035R91

RIM

rear wheel, DW21-32 DC rim for 24.5-32 tire w/clamps, use w/398544R1 32 inch rear wheel, International tractors

2шт.

1

384069R91

RIM, rear wheel, DW20-34 rim for 23.1-34 tire w/clamps

2шт.

2

380877R1

BOLT,3/4" - 16 x 4 3/4"

rear wheel rim clamp, 24 for 34 in. wheels, 20 for 30 in. wheels

1шт.

2

393772R1

BOLT,Sq Hd, 3/4" - 16 x 3"

rear wheel rim clamp

24шт.

352536R1

NUT

rear wheel rim clamp bolt, one per bolt

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , 1 per bolt 3/4"

1шт.

3

380870R1

CLAMP

rear wheel rim

20шт.

4

397251R1

CLAMP

rear wheel rim, fixed

4шт.

5

397189R1

WEDGE

ASSY, wheel

2шт.

6

398545R1

WHEEL

34 inch rear

2шт.

6

397188R1

WHEEL

38 inch rear

2шт.

6

398544R1

WHEEL

30 & 32 inch rear, International tractors

2шт.

7

397193R1

SPARE PART

WEDGE, wheel

2шт.

399649R1

TOOL, wheel remover

2шт.

401119R1

TOOL

WRENCH, wedge wheel socket

1шт.

401118R1

TOOL

SOCKET, 7/8

1шт.
