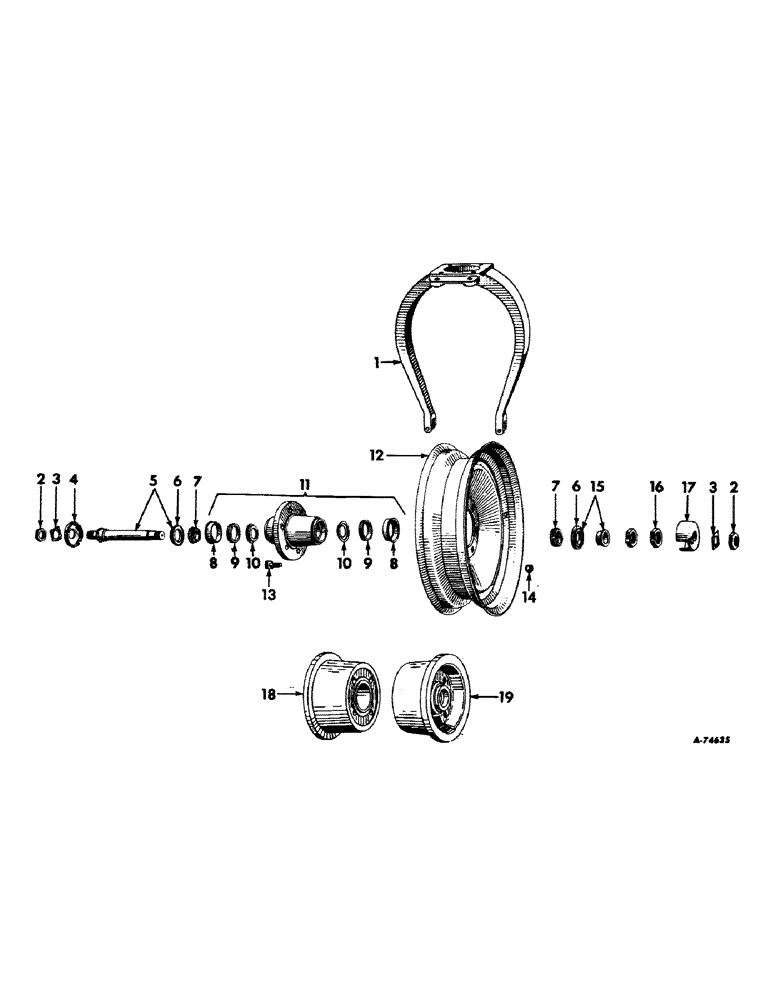

Запчасти Case IH 1256 (L-03) - WHEELS AND WHEEL WEIGHTS, SINGLE FRONT WHEEL, FARMALL TRACTORS WITH 10 INCH OR 16 INCH WHEELS Wheels & Wheel Weights

370648R91

PARTS ACCESSORY, single front wheel, for 7.50 x 16 tire, consists of all unmarked parts and those marked unit A

1шт.

370649R92

WHEEL

PARTS ACCESSORY, single front wheel, for 9.00 x 10 tire, consists of all unmarked parts and those marked unit B

1шт.

1

8298DD

FORK, front bolster

1шт.

102637

NUT,1/2"-13, G5

2шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2-13 x 3-1/2 hex-hd cap

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

2

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

1-1/4 hex. jam

2шт.

3

38916D

LOCK WASHER

front axle nut lock

2шт.

4

351419R11

PROTECTOR

SHIELD ASSY, front wheel hub short

1шт.

5

351417R11

AXLE ASSY, front wheel

1шт.

6

48539DA

PACKING RING

SEAL, front wheel oil

2шт.

7

ST2049

TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"

BEARING ASSY, front wheel cone

2шт.

8

48548D

WASHER

front wheel oil seal

2шт.

9

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

BEARING, front wheel cup

2шт.

10

60288DA

BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"

front wheel bearing grease, 2 for unit A

1шт.

11

351398R21

HUB ASSY, front wheel, unit A

1шт.

12

354195R92

WHEEL

ASSY, front, 5.50F x 16 DC rim, unit A

1шт.

13

358134R1

BOLT (MACHINE),9/16" - 18 x 1 3/4"

BOLT, front wheel mounting, 6 for unit A

1шт.

14

351793R1

WHEEL NUT

NUT, front wheel mounting, 6 for unit A

1шт.

15

351416R11

SPACER ASSY, front wheel bearing

1шт.

16

351418R1

BEARING LOCK NUT

front wheel bearing adjusting

2шт.

17

351420R11

PROTECTOR

SHIELD ASSY, front wheel hub long

1шт.

18

383790R11

WHEEL W/CUP, ST974 and retainer, 48548D, front, male half, unit B

1шт.

102639

NUT,5/8"-11, G5

4шт.

17184R1

SCREW,Hex, 5/8" - 11 x 7"

5/8-11 x 7 hex-hd cap

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

19

383791R11

WHEEL W/CUP, ST974 and retainer, 48548D, front, female half, unit B

1шт.
